How can I get a price quote for Festo ELFA-RF-80- -?

You can request a fast quote for Festo ELFA-RF-80- - from Yılsa Engineering. Reference part number YLSPBZS88TRP8PW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELFA-RF-80- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELFA-RF-80- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELFA-RF-80- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

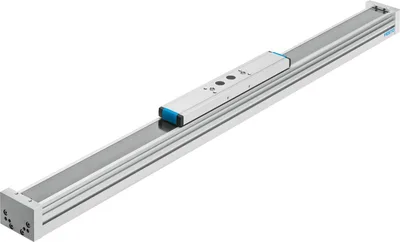

Festo ELFA-RF-80- -

Guide axis. For toothed belt axis with roller bearing guide ELGA-TB-RF (drive axes). Driveless linear guide unit with guide and freely movable slide unit. For supporting forces and torques in multi-axis applications. High torsional resistance. Reduced vibrations with dynamic loads

FestoMFR # ELFA-RF-80- -SKU # YLSPBZS88TRP8PW

Working stroke50, 7000

Size80

Mounting positionAny

GuideRoller bearing guide

DesignGuidance

Symbol00992984

Have questions?Chat on WhatsApp

About This Product

Festo ELFA-RF-80- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 7000

Size80

Mounting positionAny

GuideRoller bearing guide

DesignGuidance

Symbol00992984

Max. acceleration50

Max. speed10

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy269840

2nd moment of area Iz1018510

Max. force Fy800

Max. force Fz800

Max. idle running transfer resistance40

Max. moment Mx30

Max. force Fy total axis800

Max. force Fz total axis800

Max. moment Mx total axis30

Reference service life10000

Fy at theoretical life value of 100 km (only guide consideration)3712

Fz at theoretical life value of 100 km (only guide consideration)3712

Mx at theoretical life value of 100 km (only guide consideration)139

Additional weight per 10 mm stroke47.13

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Type of mountingWith accessories

Material end capWrought aluminium alloy, anodised

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material cover tapeStainless steel strip

Material guideSteel

Material slideWrought aluminium alloy, anodised

Accessories 51

Genuine accessories that can be used with the Festo ELFA-RF-80- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIEN-M8B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
NST-5-M5-1	Slot nut · Mounting accessories
ABP-5	Slot cover · Mounting accessories
SMBK-8	Clip · Mounting accessories
HMIA-E07- -	Support profile · Mounting accessories
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
MUE-70/80	Profile mounting · Cylinder mountings
SF-EGC-1-80	Switch lug · Mounting accessories
SF-EGC-2-80	Switch lug · Mounting accessories
HWS-EGC-M5	Sensor bracket · Mounting accessories
HPE-80	Foot mounting · Cylinder mountings
DHAM-ME-N1-CL	Adapter kit · Mounting accessories
ABP-5-S1	Slot cover · Mounting accessories
DHAM-ME-N1-50-CL	Adapter kit · Mounting accessories
EAHF-L5-80-P	Central support · Cylinder mountings
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
ZBH-9-B	Centring sleeve · Mounting accessories
