How can I get a price quote for FESTO EHMB-32-200?

You can request a fast quote for FESTO EHMB-32-200 from Yılsa Engineering. Reference part number CEY-937FC781BB76. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO EHMB-32-200 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO EHMB-32-200 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO EHMB-32-200?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

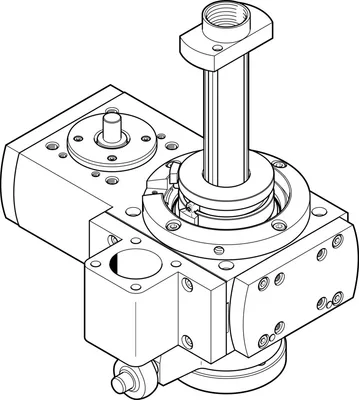

FESTO EHMB-32-200

Rotary lifting module. Complete module with combined and configurable rotary/lifting movement. Dynamic, flexible, economical thanks to the modular drive concept for the linear movement. Hollow axis with large internal diameter makes laying power supply lines easy, convenient and safe. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # EHMB-32-200SKU # CEY-937FC781BB76

Drive pinion diameter12

Working stroke0, 200

Size32

Rotation angleInfinite

Toothed-belt pitch5

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

FESTO EHMB-32-200

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Drive pinion diameter12

Working stroke0, 200

Size32

Rotation angleInfinite

Toothed-belt pitch5

Mounting positionAny

Type of gear unitToothed belt drive

DesignWith toothed belt

Gear unit ratio3:1

Position detectionFor inductive sensors

Max. drive output speed300

Max. drive input speed900

Max. speed1.5

Repetition accuracy±0.03 °

Sound pressure level51

Information on the sound pressure levelWith covering: 53 [dB (A)]

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-10, 60

Mass moment of inertia10000

Max. output torque20

Max. drive torque6.7

Max. feed force Fx750

Frictional torque independent of load0.5

Reference value effective load, horizontal8

Reference value effective load, vertical15

Product weight6388

Moving mass2058

Material drive shaftSteel

Note on materialsRoHS compliant

Material flangeAnodised wrought aluminium alloy

Material drive shaftHigh-alloy stainless steel

Material coverWrought aluminium alloy, anodised

Material housinganodised

Material retainingWrought aluminium alloy, anodised

Material retaining bracketAnodised wrought aluminium alloy

Material toothed beltPolychloroprene with glass fibre

Accessories 34

Genuine accessories that can be used with the FESTO EHMB-32-200 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAMM-A-D60-80G-S1-G2	Axial kit · Mounting accessories
EAMM-A-D60-82AA	Axial kit · Mounting accessories
EAMM-A-D60-90R	Axial kit · Mounting accessories
MKR-23-PG-21	Protective conduit · Mounting accessories
EAMF-A-64A/B-70A	Motor flange · Mounting accessories
EAMF-A-64A/C/D-100A	Motor flange · Mounting accessories
EAMF-A-64A/B-87A	Motor flange · Mounting accessories
EAMC-42-50-12-12	Coupling · Mounting accessories
EAMM-A-D60-70A	Axial kit · Mounting accessories
EAMM-A-D60-87A	Axial kit · Mounting accessories
EAMC-42-50-11-12	Coupling · Mounting accessories
DYSW-10-17-Y1F	Shock absorber · Mounting accessories
EMGA-60-P-G3-SST-57	Gear unit · Mounting accessories
EMGA-60-P-G5-SST-57	Gear unit · Mounting accessories
EAMF-A-64A/B-60G/H	Motor flange · Mounting accessories
EAMC-42-50-12-19	Coupling · Mounting accessories
EAMK-A-D60-64C	Coupling housing · Mounting accessories
EAMK-A-D60-64B	Coupling housing · Mounting accessories
EASA-H1-25-PG21	Protective conduit fitting · Mounting accessories
EHAM-H1-32-L2-120	Adapter plate kit · Mounting accessories
EAPS-H1-25-CK	Cam · Mounting accessories
EAMM-A-D60-60H	Axial kit · Mounting accessories
EAMM-A-D60-80P	Axial kit · Mounting accessories
EAMF-A-64A/C-80P	Motor flange · Mounting accessories
EAMM-A-D60-60G-G2	Axial kit · Mounting accessories
DHAA-G-H1-25-B18-25	Adapter kit · Mounting accessories
EAMM-A-D60-80PB	Axial kit · Mounting accessories
EAMM-A-D60-90GA	Axial kit · Mounting accessories
EAMM-A-D60-84AA	Axial kit · Mounting accessories
EMGA-60-P-G8-SST-57	Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57	Gear unit · Mounting accessories
EAMM-A-D60-92RA	Axial kit · Mounting accessories
EAMM-A-D60-100A-G2	Axial kit · Mounting accessories
EAMM-A-D60-80G-G2	Axial kit · Mounting accessories
