How can I get a price quote for Festo EGSS-BS-KF-60-?

You can request a fast quote for Festo EGSS-BS-KF-60- from Yılsa Engineering. Reference part number YLS1RG5IVGUFNDA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EGSS-BS-KF-60- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EGSS-BS-KF-60- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EGSS-BS-KF-60-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

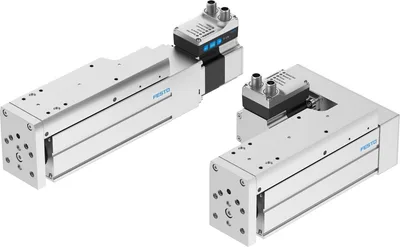

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EGSS-BS-KF-60-

Mini slide unit. Complete solution consisting of drive mechanics, motor and servo drive. Increased protection against rotation and absorption of lateral forces thanks to rigid, resilient and precise linear guide. Precise positioning thanks to smoothly running ball screw drive. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Two control options integrated as standard: digital I/O and IO-Link. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EGSS-BS-KF-60-SKU # YLS1RG5IVGUFNDA

Working stroke50, 200

Size60

Stroke reserve0

Reversing backlash theoretical150

Spindle diameter12

Spindle pitch12

Have questions?Chat on WhatsApp

About This Product

Festo EGSS-BS-KF-60-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 200

Size60

Stroke reserve0

Reversing backlash theoretical150

Spindle diameter12

Spindle pitch12

Mounting positionAny

GuideRecirculating ball bearing guide

DesignWith ball screw, With integrated drive

Type of motorStepper motor

ReferencingPositive fixed stop block, Negative fixed stop block

Spindle typeBall screw

Symbol00997294

Position detectionMotor encoder, Via proximity switch

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Protective functionTemperature monitoring

Additional functionsBuilt-in end-position sensing

DisplayLED

Ready status indicationLED

Max. acceleration3, 5

Max. speed0.205, 0.24

Speed "Speed press"0.01

Repetition accuracy±0.015 mm

Features of digital logic outputsConfigurable, Not galvanically isolated

Duty cycle100%

Insulation protection classB

Max. current digital logic outputs100

Max. current consumption5300

Max. current consumption, logic0.3

Nominal voltage DC24

Nominal current5.3

Parameterisation interfaceIO-Link®, User interface

Rotor position transducer resolution16

Permissible voltage fluctuations+/- 15 %

Power supply, connection typePlug

power supply, connection systemM12x1, T-coded according to EN 61076-2-111

Power supply, number of pins/wires4

Power supply, connection pattern00995989

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1

Storage temperature-20, 60

Relative air humidity0 - 90%

Degree of protectionIP40

Protection classIII

Ambient temperature0, 50

Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.

Dynamic basic load rating fixed bearing13321

Dynamic basic load rating linear guide13400

Dynamic basic load rating ball screw4600

Max. force Fy4937

Max. force Fz4937

Fy at theoretical life value of 100 km (only guide consideration)13400

Fz at theoretical life value of 100 km (only guide consideration)13400

Max. moment Mx20

Max. moment My30

Max. moment Mz30

Mx at theoretical life value of 100 km (only guide consideration)107

My at theoretical life value of 100 km (only guide consideration)117

Mz at theoretical life value of 100 km (only guide consideration)117

Max. radial force at drive shaft420

Max. feed force Fx250

Reference value effective load, horizontal10

Reference value effective load, vertical10

Static basic load rating ball screw8500

Static basic load rating linear guide26900

Feed constant12

Static basic load rating fixed bearing7000

Reference service life5000

Maintenance intervalLifetime lubrication

Moving mass for 0 mm stroke675

Additional moving mass per 10 mm stroke40

Product weight3210, 4899

Basic weight for 0 mm stroke2735

Additional weight per 10 mm stroke95

Number of digital logic outputs 24 V DC2

Number of digital logic inputs2

Specification logic inputBased on IEC 61131-2, type 1

Working range of logic input24

IO-Link, SIO-Mode supportYes

Features of logic inputConfigurable, Not galvanically isolated

IO-Link, Protocol versionDevice V 1.1

IO-Link, communication modeCOM3 (230.4 kBaud)

IO-Link, Port classA

IO-Link, Number of ports1

IO-Link, Process data length OUT2 bytes

IO-Link, Process data content OUT1 bit (move in), 1 bit (Move out), 1 bit (Quit Error), 1 bit (move intermediate)

IO-Link, Process data length IN2 bytes

IO-Link, Process data content IN1 bit (state device), 1 bit (State Intermediate), 1 bit (State Move), 1 bit (State in), 1 bit (state out)

IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed

IO-Link, Min. cycle time1 ms

IO-Link, Data storage required500

Max. cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation

Switching logic for outputsNPN (negative switching), PNP (positive switching)

Switching logic for inputsNPN (negative switching), PNP (positive switching)

IO-Link, connection technologyPlug

Logic interface, connection typePlug

Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101

Logic interface, number of pins/wires8

Logic interface, plug pattern00992264

Type of mountingWith female thread, With centring sleeve, With accessories, Via cylindrical dowel pin

Note on materialsRoHS compliant

Material guide slideBearing steel

Material guide railBearing steel

Material housingAnodised wrought aluminium alloy

Material yoke plateAnodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material slideAnodised wrought aluminium alloy

Material ball screw nutBearing steel

Material spindleBearing steel

Accessories 84

Genuine accessories that can be used with the Festo EGSS-BS-KF-60- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAHF-L2-45-P	Profile mounting · Cylinder mountings
CDSU-1	IO-Link® master USB · Electrical accessories
EAHF-L2-45-P-S	Profile mounting · Cylinder mountings
EAPM-L2-SH	Sensor bracket · Mounting accessories
EAPM-L2-60-SLS	Switch lug · Mounting accessories
NEFC-M12G8-0.3-M12G5-LK	Adapter · Electrical accessories
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Proximity sensors
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Proximity sensors
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Proximity sensors
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Proximity sensors
QS-G1/4-8-I	Push-in fitting · Fittings
NEBL-T12W4-E-2-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-5-N-LE4	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBL-T12G4-E-2-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-5-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-B-LE8	Connecting cable · Connecting cables
QS-1/4-6-100	Push-in fitting · Push-in fittings
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-1/4-12-20	Push-in fitting · Push-in fittings
QS-G1/4-6-100	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-12-20	Push-in fitting · Push-in fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
QS-1/4-6-I-100	Push-in fitting · Push-in fittings
QS-1/4-6	Push-in fitting · Push-in fittings
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-6-I	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
QS-1/4-12	Push-in fitting · Push-in fittings
QS-1/4-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-1/4-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-G1/4-6	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QS-1/4-4	Push-in fitting · Push-in fittings
QS-1/4-12-I	Push-in fitting · Push-in fittings
QS-1/4-1/4-I-U-M	Push-in fitting · Push-in fittings
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NEBL-T12W4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBL-T12G4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-B-LE8	Connecting cable · Connecting cables
ZBH-7-B	Centring sleeve · Mounting accessories
