How can I get a price quote for Festo EGC-70- -FA?

You can request a fast quote for Festo EGC-70- -FA from Yılsa Engineering. Reference part number YLSRSFTFCJSA2I. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EGC-70- -FA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EGC-70- -FA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EGC-70- -FA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

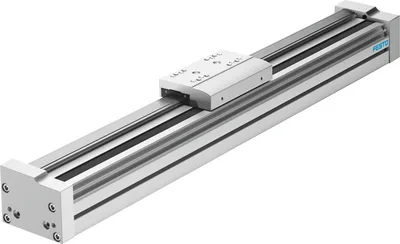

Festo EGC-70- -FA

Guide axis. For spindle/toothed belt axes ELGA (drive axes). For supporting forces and torques in multi-axis applications. High torsional resistance

FestoMFR # EGC-70- -FASKU # YLSRSFTFCJSA2I

Working stroke50, 5000

Size70

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Max. acceleration50

Have questions?Chat on WhatsApp

About This Product

Guide axis. For spindle/toothed belt axes ELGA (drive axes). For supporting forces and torques in multi-axis applications. High torsional resistance

Festo EGC-70- -FA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 5000

Size70

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Max. acceleration50

Max. speed5

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy395000

2nd moment of area Iz577000

Max. force Fy1850

Max. force Fz1850

Max. idle running transfer resistance15

Max. moment Mx16

Max. moment My51, 132

Max. moment Mz51, 132

Max. force Fy total axis1850

Max. force Fz total axis1850

Max. moment Mx total axis16

Max. moment My total axis51, 132

Max. moment Mz total axis51, 132

Torsional mass moment of inertia It240000

Fy at theoretical life value of 100 km (only guide consideration)6815

Fz at theoretical life value of 100 km (only guide consideration)6815

Mx at theoretical life value of 100 km (only guide consideration)59

My at theoretical life value of 100 km (only guide consideration)188, 486

Mz at theoretical life value of 100 km (only guide consideration)188, 486

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material cover profileABS

Material coverWrought aluminium alloy, anodised

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy, anodised

Accessories 55

Genuine accessories that can be used with the Festo EGC-70- -FA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SF-EGC-1-70	Switch lug · Position sensing
ZBS-5	Centring pin · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
MUE-70/80	Profile mounting · Mounting accessories
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIEN-M8B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
NST-5-M5-1	Slot nut · Mounting accessories
ABP-5	Slot cover · Mounting accessories
SMBK-8	Clip · Mounting accessories
HMIA-E07- -	Support profile · Mounting accessories
SMM-8	Positioning element · Mounting accessories
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
KYE-70	Shock absorber retainer · Mounting accessories
EAMB-18-9-8X16-10X12	Drive shaft adapter · Mounting accessories
SF-EGC-2-70	Switch lug · Mounting accessories
HWS-EGC-M5	Sensor bracket · Mounting accessories
HPE-70	Foot mounting · Cylinder mountings
DHAM-ME-N1-CL	Adapter kit · Mounting accessories
NPE-70	Emergency buffer · Mounting accessories
ABP-5-S1	Slot cover · Mounting accessories
DHAM-ME-N1-50-CL	Adapter kit · Mounting accessories
EAHF-L5-70-P	Central support · Cylinder mountings
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
