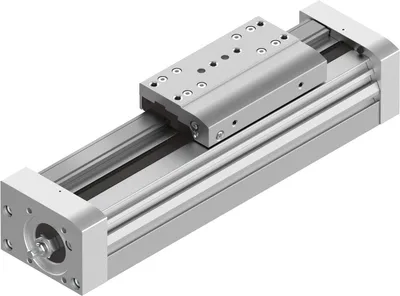

Festo EGC-70- -BS-KF

Ball screw axis. Axis for high repeat accuracy. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 2 sides. 34 types in stock with short delivery times and modular products for custom variants. Strokes of up to 3 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EGC-70- -BS-KFSKU # YLS4OEAT9TQSX8

Working stroke50, 1000

Size70

Spindle diameter12

Spindle pitch10

Mounting positionAny

GuideRecirculating ball bearing guide

Have questions?Chat on WhatsApp

About This Product

Festo EGC-70- -BS-KF

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 1000

Size70

Spindle diameter12

Spindle pitch10

Mounting positionAny

GuideRecirculating ball bearing guide

DesignWith ball screw

Type of motorStepper motor, Servo motor

Spindle typeBall screw

Functional principle of measuring systemIncremental

Max. acceleration15

Max. speed0.5

Repetition accuracy±0.02 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364-B2-L

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy419000

2nd moment of area Iz578000

Max. force Fy1850

Max. force Fz1850

Max. force Fy total axis1850

Max. force Fz total axis1850

Fy at theoretical life value of 100 km (only guide consideration)6815

Fz at theoretical life value of 100 km (only guide consideration)6815

Max. moment Mx16

Max. moment My51, 132

Max. moment Mz51, 132

Max. moment Mx total axis16

Max. moment My total axis51, 132

Max. moment Mz total axis51, 132

Mx at theoretical life value of 100 km (only guide consideration)59

My at theoretical life value of 100 km (only guide consideration)188, 486

Mz at theoretical life value of 100 km (only guide consideration)188, 486

Max. radial force at drive shaft220

Max. feed force Fx400

Torsional mass moment of inertia It88000

Mass moment of inertia JH per metre of stroke0.142

Feed constant10

Reference service life5000

Material end capWrought aluminium alloy, anodised

Material driverWrought aluminium alloy, anodised

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material drive coverWrought aluminium alloy, anodised

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy, anodised

Material ball screw nutSteel

Material spindleSteel

Accessories 99

Genuine accessories that can be used with the Festo EGC-70- -BS-KF motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
MUE-70/80	Profile mounting · Mounting accessories
SF-EGC-1-70	Switch lug · Position sensing
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
ZBS-5	Centring pin · Mounting accessories
EAMM-A-S38-42A-G2	Axial kit · Mounting accessories
EMMT-AS-60-	Servo motor · Motors
EMMT-ST-42-L-RS	Stepper motor · Motors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
SIEN-M8B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
NST-5-M5-1	Slot nut · Mounting accessories
ABP-5	Slot cover · Mounting accessories
EAMC-30-32-6-8	Coupling · Mounting accessories
SMBK-8	Clip · Mounting accessories
HMIA-E07- -	Support profile · Mounting accessories
SMM-8	Positioning element · Mounting accessories
EMGA-40-P-G3-SST-42	Gear unit · Mounting accessories
EMGA-40-P-G5-SST-42	Gear unit · Mounting accessories
EAMC-30-32-6-6.35	Coupling · Mounting accessories
EAMC-30-32-6-9	Coupling · Mounting accessories
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
KYE-70	Shock absorber retainer · Mounting accessories
EAMB-18-9-8X16-10X12	Drive shaft adapter · Mounting accessories
SF-EGC-2-70	Switch lug · Mounting accessories
HWS-EGC-M5	Sensor bracket · Mounting accessories
EAMF-A-38B-40A	Motor flange · Mounting accessories
EAMF-A-38A-55A	Motor flange · Mounting accessories
EAMC-30-32-6-6	Coupling · Mounting accessories
HPE-70	Foot mounting · Cylinder mountings
EAMF-A-38B-42A	Motor flange · Mounting accessories
EAMF-A-38A-57A	Motor flange · Mounting accessories
EAMC-30-32-5-6	Coupling · Mounting accessories
DHAM-ME-N1-CL	Adapter kit · Mounting accessories
NPE-70	Emergency buffer · Mounting accessories
ABP-5-S1	Slot cover · Mounting accessories
EAHM-L2-M5-50	Screw kit · Mounting accessories
DHAM-ME-N1-50-CL	Adapter kit · Mounting accessories
EAMM-U-50-S38-40A-78	Parallel kit · Mounting accessories
EAMM-U-50-S38-42A-78	Parallel kit · Mounting accessories
EAMM-U-60-S38-55A-91	Parallel kit · Mounting accessories
EAMM-U-60-S38-57A-91	Parallel kit · Mounting accessories
EAMC-30-32-6-14	Coupling · Mounting accessories
NEBM-M12G8-E-5-S1G9-V3	Encoder cable · Electrical accessories
NEBM-M12G8-E-10-S1G9-V3	Encoder cable · Electrical accessories
NEBM-M12G8-E-15-S1G9-V3	Encoder cable · Electrical accessories
NEBM-M12G8-E- -S1G9-V3	Encoder cable · Electrical accessories
EAMF-A-38A-60P	Motor flange · Mounting accessories
EAMM-U-50-S38-40P-78	Parallel kit · Mounting accessories
EAMF-A-38B-40P	Motor flange · Mounting accessories
EAMM-U-60-S38-40G-91	Parallel kit · Mounting accessories
EAHF-L5-70-P	Central support · Cylinder mountings
EAMM-A-S38-57A-G2	Axial kit · Mounting accessories
EAMM-A-S38-40A-G2	Axial kit · Mounting accessories
EAMM-A-S38-40P-G2	Axial kit · Mounting accessories
EAMM-U-50-S38-38AA-78	Parallel kit · Mounting accessories
EAMM-U-60-S38-40R-91	Parallel kit · Mounting accessories
EAMM-U-60-S38-57AC-91	Parallel kit · Mounting accessories
EAMM-U-60-S38-58AA-91	Parallel kit · Mounting accessories
EAMM-U-60-S38-60RA-91	Parallel kit · Mounting accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
EAMM-A-S38-50GA	Axial kit · Mounting accessories
EAMM-A-S38-60AA	Axial kit · Mounting accessories
EAMM-A-S38-58AA	Axial kit · Mounting accessories
NEFM-S1G9-K-0,5-R3G8	Adapter · Electrical accessories
EAMM-U-60-S38-50GA-91	Parallel kit · Mounting accessories
EAMM-U-60-S38-60P-91	Parallel kit · Mounting accessories
EMGA-40-P-G8-SST-42	Gear unit · Mounting accessories
EMGA-40-P-G12-SST-42	Gear unit · Mounting accessories
