View Details
Festo
YXCF-1
MFR #YXCF-1
SKU #YLSBOLBVXXHTEQR
Photo may not represent actual item. Refer to name and product specs for all details.

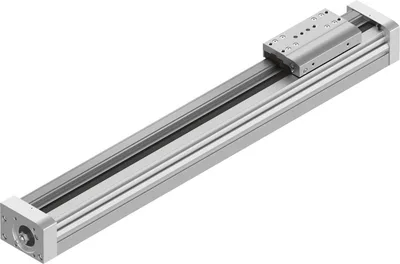

Festo EGC-70-400-BS-10P-KF-0H-ML-GK
Ball screw axis. Axis for high repeat accuracy. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 2 sides. 34 types in stock with short delivery times and modular products for custom variants. Strokes of up to 3 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Working stroke400
Size70
Stroke reserve0
Spindle diameter12
Spindle pitch10
Mounting positionAny
About This Product
Ball screw axis. Axis for high repeat accuracy. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 2 sides. 34 types in stock with short delivery times and modular products for custom variants. Strokes of up to 3 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo EGC-70-400-BS-10P-KF-0H-ML-GK
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Working stroke400
Size70
Stroke reserve0
Spindle diameter12
Spindle pitch10
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Symbol00991211
Max. acceleration15
Max. speed0.5
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP40
Ambient temperature-10, 60
2nd moment of area Iy419000
2nd moment of area Iz578000
Max. force Fy1850
Max. force Fz1850
Max. force Fy total axis1850
Max. force Fz total axis1850
Fy at theoretical life value of 100 km (only guide consideration)6815
Fz at theoretical life value of 100 km (only guide consideration)6815
Max. moment Mx16
Max. moment My51
Max. moment Mz51
Max. moment Mx total axis16
Max. moment My total axis51
Max. moment Mz total axis51
Mx at theoretical life value of 100 km (only guide consideration)59
My at theoretical life value of 100 km (only guide consideration)188
Mz at theoretical life value of 100 km (only guide consideration)188
Max. radial force at drive shaft220
Max. feed force Fx400
Torsional mass moment of inertia It88000
Mass moment of inertia JH per metre of stroke0.142
Feed constant10
Reference service life5000
Material end capWrought aluminium alloy, anodised
Material driverWrought aluminium alloy, anodised
Material profileWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material drive coverWrought aluminium alloy, anodised
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy, anodised
Material ball screw nutSteel
Material spindleSteel
Accessories 99
Genuine accessories that can be used with the Festo EGC-70-400-BS-10P-KF-0H-ML-GK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| MUE-70/80 | Profile mounting · Mounting accessories | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SF-EGC-1-70 | Switch lug · Position sensing | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| ZBS-5 | Centring pin · Mounting accessories | |
| EAMM-A-S38-42A-G2 | Axial kit · Mounting accessories | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| EMMT-AS-60- | Servo motor · Motors | |
| EMMT-ST-42-L-RS | Stepper motor · Motors | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| SIEN-M8B-PS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PO-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PO-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| NST-5-M5-1 | Slot nut · Mounting accessories | |
| ABP-5 | Slot cover · Mounting accessories | |
| EAMC-30-32-6-8 | Coupling · Mounting accessories | |
| SMBK-8 | Clip · Mounting accessories | |
| HMIA-E07- - | Support profile · Mounting accessories | |
| SMM-8 | Positioning element · Mounting accessories | |
| EMGA-40-P-G3-SST-42 | Gear unit · Mounting accessories | |
| EMGA-40-P-G5-SST-42 | Gear unit · Mounting accessories | |
| EAMC-30-32-6-6.35 | Coupling · Mounting accessories | |
| EAMC-30-32-6-9 | Coupling · Mounting accessories | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| KYE-70 | Shock absorber retainer · Mounting accessories | |
| EAMB-18-9-8X16-10X12 | Drive shaft adapter · Mounting accessories | |
| SF-EGC-2-70 | Switch lug · Mounting accessories | |
| HWS-EGC-M5 | Sensor bracket · Mounting accessories | |
| EAMF-A-38B-40A | Motor flange · Mounting accessories | |
| EAMF-A-38A-55A | Motor flange · Mounting accessories | |
| EAMC-30-32-6-6 | Coupling · Mounting accessories | |
| HPE-70 | Foot mounting · Cylinder mountings | |
| EAMF-A-38B-42A | Motor flange · Mounting accessories | |
| EAMF-A-38A-57A | Motor flange · Mounting accessories | |
| EAMC-30-32-5-6 | Coupling · Mounting accessories | |
| DHAM-ME-N1-CL | Adapter kit · Mounting accessories | |
| NPE-70 | Emergency buffer · Mounting accessories | |
| ABP-5-S1 | Slot cover · Mounting accessories | |
| EAHM-L2-M5-50 | Screw kit · Mounting accessories | |
| DHAM-ME-N1-50-CL | Adapter kit · Mounting accessories | |
| EAMM-U-50-S38-40A-78 | Parallel kit · Mounting accessories | |
| EAMM-U-50-S38-42A-78 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-55A-91 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-57A-91 | Parallel kit · Mounting accessories | |
| EAMC-30-32-6-14 | Coupling · Mounting accessories | |
| NEBM-M12G8-E-5-S1G9-V3 | Encoder cable · Electrical accessories | |
| NEBM-M12G8-E-10-S1G9-V3 | Encoder cable · Electrical accessories | |
| NEBM-M12G8-E-15-S1G9-V3 | Encoder cable · Electrical accessories | |
| NEBM-M12G8-E- -S1G9-V3 | Encoder cable · Electrical accessories | |
| EAMF-A-38A-60P | Motor flange · Mounting accessories | |
| EAMM-U-50-S38-40P-78 | Parallel kit · Mounting accessories | |
| EAMF-A-38B-40P | Motor flange · Mounting accessories | |
| EAMM-U-60-S38-40G-91 | Parallel kit · Mounting accessories | |
| EAHF-L5-70-P | Central support · Cylinder mountings | |
| EAMM-A-S38-57A-G2 | Axial kit · Mounting accessories | |
| EAMM-A-S38-40A-G2 | Axial kit · Mounting accessories | |
| EAMM-A-S38-40P-G2 | Axial kit · Mounting accessories | |
| EAMM-U-50-S38-38AA-78 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-40R-91 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-57AC-91 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-58AA-91 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-60RA-91 | Parallel kit · Mounting accessories | |
| NEBA-M8G3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-10-N-M8G3 | Connecting cable · Connecting cables | |
| EAMM-A-S38-50GA | Axial kit · Mounting accessories | |
| EAMM-A-S38-60AA | Axial kit · Mounting accessories | |
| EAMM-A-S38-58AA | Axial kit · Mounting accessories | |
| NEFM-S1G9-K-0,5-R3G8 | Adapter · Electrical accessories | |
| EAMM-U-60-S38-50GA-91 | Parallel kit · Mounting accessories | |
| EAMM-U-60-S38-60P-91 | Parallel kit · Mounting accessories | |
| EMGA-40-P-G8-SST-42 | Gear unit · Mounting accessories | |
| EMGA-40-P-G12-SST-42 | Gear unit · Mounting accessories |
