How can I get a price quote for Festo EGC-70-300-BS-10P-KF-0H-ML-GK?

You can request a fast quote for Festo EGC-70-300-BS-10P-KF-0H-ML-GK from Yılsa Engineering. Reference part number YLSHL29ESCV01LJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EGC-70-300-BS-10P-KF-0H-ML-GK in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EGC-70-300-BS-10P-KF-0H-ML-GK genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EGC-70-300-BS-10P-KF-0H-ML-GK?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

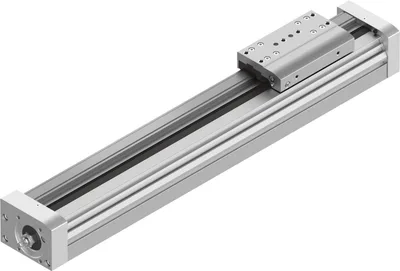

Festo EGC-70-300-BS-10P-KF-0H-ML-GK

Ball screw axis. Axis for high repeat accuracy. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 2 sides. 34 types in stock with short delivery times and modular products for custom variants. Strokes of up to 3 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EGC-70-300-BS-10P-KF-0H-ML-GKSKU # YLSHL29ESCV01LJ

Working stroke300

Size70

Stroke reserve0

Spindle diameter12

Spindle pitch10

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo EGC-70-300-BS-10P-KF-0H-ML-GK

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke300

Size70

Stroke reserve0

Spindle diameter12

Spindle pitch10

Mounting positionAny

GuideRecirculating ball bearing guide

DesignWith ball screw

Type of motorStepper motor, Servo motor

Spindle typeBall screw

Symbol00991211

Max. acceleration15

Max. speed0.5

Repetition accuracy±0.02 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364-B2-L

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy419000

2nd moment of area Iz578000

Max. force Fy1850

Max. force Fz1850

Max. force Fy total axis1850

Max. force Fz total axis1850

Fy at theoretical life value of 100 km (only guide consideration)6815

Fz at theoretical life value of 100 km (only guide consideration)6815

Max. moment Mx16

Max. moment My51

Max. moment Mz51

Max. moment Mx total axis16

Max. moment My total axis51

Max. moment Mz total axis51

Mx at theoretical life value of 100 km (only guide consideration)59

My at theoretical life value of 100 km (only guide consideration)188

Mz at theoretical life value of 100 km (only guide consideration)188

Max. radial force at drive shaft220

Max. feed force Fx400

Torsional mass moment of inertia It88000

Mass moment of inertia JH per metre of stroke0.142

Feed constant10

Reference service life5000

Material end capWrought aluminium alloy, anodised

Material driverWrought aluminium alloy, anodised

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material drive coverWrought aluminium alloy, anodised

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy, anodised

Material ball screw nutSteel

Material spindleSteel

Accessories 21

Genuine accessories that can be used with the Festo EGC-70-300-BS-10P-KF-0H-ML-GK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
MUE-70/80	Profile mounting · Mounting accessories
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SF-EGC-1-70	Switch lug · Position sensing
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
ZBS-5	Centring pin · Mounting accessories
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
EAMM-A-S38-42A-G2	Axial kit · Mounting accessories
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
EMMT-AS-60-	Servo motor · Motors
EMMT-ST-42-L-RS	Stepper motor · Motors
ABP-5	Slot cover · Mounting accessories
SMBK-8	Clip · Mounting accessories
SMM-8	Positioning element · Mounting accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
