How can I get a price quote for Festo EGC-185- -FA?

You can request a fast quote for Festo EGC-185- -FA from Yılsa Engineering. Reference part number YLSZLX75YNXLADD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EGC-185- -FA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EGC-185- -FA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EGC-185- -FA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

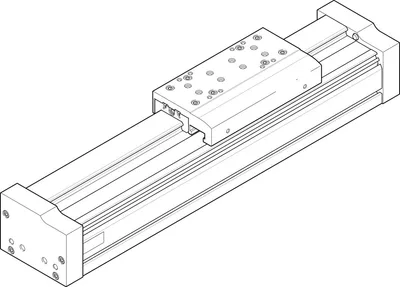

Festo EGC-185- -FA

Guide axis. For spindle/toothed belt axes ELGA (drive axes). For supporting forces and torques in multi-axis applications. High torsional resistance

FestoMFR # EGC-185- -FASKU # YLSZLX75YNXLADD

Working stroke50, 8500

Size185

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Max. acceleration50

Have questions?Chat on WhatsApp

About This Product

Guide axis. For spindle/toothed belt axes ELGA (drive axes). For supporting forces and torques in multi-axis applications. High torsional resistance

Festo EGC-185- -FA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 8500

Size185

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Max. acceleration50

Max. speed5

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP40

Ambient temperature-10, 60

2nd moment of area Iy2.34E7

2nd moment of area Iz2.74E7

Max. force Fy15200

Max. force Fz15200

Max. idle running transfer resistance15

Max. moment Mx529

Max. moment My1157, 1820

Max. moment Mz1157, 1820

Max. force Fy total axis15200

Max. force Fz total axis15200

Max. moment Mx total axis529

Max. moment My total axis1157, 1820

Max. moment Mz total axis1157, 1820

Torsional mass moment of inertia It1.41E7

Fy at theoretical life value of 100 km (only guide consideration)55997

Fz at theoretical life value of 100 km (only guide consideration)55997

Mx at theoretical life value of 100 km (only guide consideration)1949

My at theoretical life value of 100 km (only guide consideration)4262, 6705

Mz at theoretical life value of 100 km (only guide consideration)4262, 6705

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Pneumatic connection, clamping unitM5

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material cover profileABS

Material coverWrought aluminium alloy, anodised

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy, anodised

Accessories 54

Genuine accessories that can be used with the Festo EGC-185- -FA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
MUE-120/185	Profile mounting · Mounting accessories
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
ZBH-9-B	Centring sleeve · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
SF-EGC-1-185	Switch lug · Position sensing
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SIEN-M8B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
NST-8-M6-1	Slot nut · Mounting accessories
ABP-8	Slot cover · Mounting accessories
SMBK-8	Clip · Mounting accessories
HMIA-E07- -	Support profile · Mounting accessories
SMM-8	Positioning element · Mounting accessories
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
KYE-185	Shock absorber retainer · Mounting accessories
EAMB-44-7-35X30-32X32	Drive shaft adapter · Mounting accessories
SF-EGC-2-185	Switch lug · Mounting accessories
HPE-185	Foot mounting · Cylinder mountings
HWS-EGC-M8: KURZ	Sensor bracket · Mounting accessories
DHAM-ME-N2-CL	Adapter kit · Mounting accessories
NPE-185	Emergency buffer · Mounting accessories
ABP-5-S1	Slot cover · Mounting accessories
DHAM-ME-N2-50-CL	Adapter kit · Mounting accessories
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
