View Details
Festo
YXCF-1
MFR #YXCF-1
SKU #YLSBOLBVXXHTEQR
Photo may not represent actual item. Refer to name and product specs for all details.

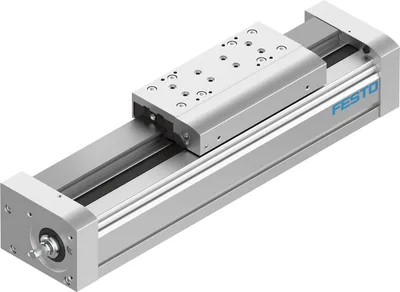

Festo EGC-120- -BS-KF
Ball screw axis. Axis for high repeat accuracy. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 2 sides. 34 types in stock with short delivery times and modular products for custom variants. Strokes of up to 3 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Working stroke50, 2500
Size120
Spindle diameter25
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
About This Product
Ball screw axis. Axis for high repeat accuracy. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 2 sides. 34 types in stock with short delivery times and modular products for custom variants. Strokes of up to 3 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo EGC-120- -BS-KF
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Working stroke50, 2500
Size120
Spindle diameter25
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Functional principle of measuring systemIncremental
Max. acceleration15
Max. speed0.6, 1.5
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-B2-L
Degree of protectionIP40
Ambient temperature-10, 60
2nd moment of area Iy5010000
2nd moment of area Iz5820000
Max. force Fy6890
Max. force Fz6890
Max. force Fy total axis6890
Max. force Fz total axis6890
Fy at theoretical life value of 100 km (only guide consideration)25383
Fz at theoretical life value of 100 km (only guide consideration)25383
Max. moment Mx144
Max. moment My380, 680
Max. moment Mz380, 680
Max. moment Mx total axis144
Max. moment My total axis380, 680
Max. moment Mz total axis380, 680
Mx at theoretical life value of 100 km (only guide consideration)531
My at theoretical life value of 100 km (only guide consideration)1400, 2505
Mz at theoretical life value of 100 km (only guide consideration)1400, 2505
Max. radial force at drive shaft500
Max. feed force Fx1500
Torsional mass moment of inertia It1430000
Mass moment of inertia JH per metre of stroke2.756
Feed constant10, 25
Reference service life5000
Pneumatic connection, clamping unitM5
Material end capWrought aluminium alloy, anodised
Material driverWrought aluminium alloy, anodised
Material profileWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material drive coverWrought aluminium alloy, anodised
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy, anodised
Material ball screw nutSteel
Material spindleSteel
Accessories 112
Genuine accessories that can be used with the Festo EGC-120- -BS-KF motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SF-EGC-1-120 | Switch lug · Position sensing | |
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| MUE-120/185 | Profile mounting · Mounting accessories | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| EAMM-A-S62-87A-G2 | Axial kit · Mounting accessories | |
| EAMM-A-S62-80P-G2 | Axial kit · Mounting accessories | |
| ZBH-9-B | Centring sleeve · Mounting accessories | |
| EMMT-AS-80- | Servo motor · Motors | |
| EMMT-ST-87-S-RS | Stepper motor · Motors | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| SIEN-M8B-PS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PO-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PO-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| NST-8-M6-1 | Slot nut · Mounting accessories | |
| ABP-8 | Slot cover · Mounting accessories | |
| SMBK-8 | Clip · Mounting accessories | |
| HMIA-E07- - | Support profile · Mounting accessories | |
| SMM-8 | Positioning element · Mounting accessories | |
| EAMC-42-50-12-19 | Coupling · Mounting accessories | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| KYE-120 | Shock absorber retainer · Mounting accessories | |
| EAMF-A-62A-140A | Motor flange · Mounting accessories | |
| EAMF-A-62A-100A | Motor flange · Mounting accessories | |
| EAMB-34-6-25X26-23X27 | Drive shaft adapter · Mounting accessories | |
| SF-EGC-2-120 | Switch lug · Mounting accessories | |
| EAMF-A-62B-70A | Motor flange · Mounting accessories | |
| EAMC-42-66-11-12 | Coupling · Mounting accessories | |
| EAMC-42-50-12-24 | Coupling · Mounting accessories | |
| HPE-120 | Foot mounting · Cylinder mountings | |
| EAMF-A-62B-87A | Motor flange · Mounting accessories | |
| DHAA-D-L-40-H2 | Adapter kit · Mounting accessories | |
| DHAA-D-L-40-G7-25 | Adapter kit · Mounting accessories | |
| DHAM-ME-N2-CL | Adapter kit · Mounting accessories | |
| NPE-120 | Emergency buffer · Mounting accessories | |
| ABP-5-S1 | Slot cover · Mounting accessories | |
| EAHM-L2-M6-80 | Screw kit · Mounting accessories | |
| EAHM-L2-M6-90 | Screw kit · Mounting accessories | |
| DHAM-ME-N2-50-CL | Adapter kit · Mounting accessories | |
| EAMM-U-86-S62-87A-177 | Parallel kit · Mounting accessories | |
| EAMM-U-110-S62-100A-207 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-70A-177 | Parallel kit · Mounting accessories | |
| EAMM-U-145-S62-140A-288 | Parallel kit · Mounting accessories | |
| EAMM-A-S62-60H-G2 | Axial kit · Mounting accessories | |
| EAMM-U-86-S62-60G-177 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-60H-177 | Parallel kit · Mounting accessories | |
| NEBM-M12G8-E-5-S1G9-V3 | Encoder cable · Electrical accessories | |
| NEBM-M12G8-E-10-S1G9-V3 | Encoder cable · Electrical accessories | |
| NEBM-M12G8-E-15-S1G9-V3 | Encoder cable · Electrical accessories | |
| NEBM-M12G8-E- -S1G9-V3 | Encoder cable · Electrical accessories | |
| EAMM-U-86-S62-80P-177 | Parallel kit · Mounting accessories | |
| EAMM-A-S62-60G-G2 | Axial kit · Mounting accessories | |
| EMGA-60-P-G3-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-60-P-G5-EAS-60 | Gear unit · Mounting accessories | |
| EAHF-L5-120-P | Central support · Cylinder mountings | |
| EAMM-A-S62-70A-G2 | Axial kit · Mounting accessories | |
| EAMM-U-86-S62-60PA-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-70A-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-70AA-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-82AA-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-87A-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-55A-177 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-60PA-177 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-70AA-177 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-82AA-177 | Parallel kit · Mounting accessories | |
| EAMM-U-110-S62-84AA-120 | Parallel kit · Mounting accessories | |
| EAMM-U-110-S62-88A-120 | Parallel kit · Mounting accessories | |
| EAMM-U-110-S62-84AA-207 | Parallel kit · Mounting accessories | |
| EAMM-U-110-S62-88A-207 | Parallel kit · Mounting accessories | |
| EAMM-U-145-S62-126AA-288 | Parallel kit · Mounting accessories | |
| NEBA-M8G3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-10-N-M8G3 | Connecting cable · Connecting cables | |
| EAMM-U-86-S62-70GA-177 | Parallel kit · Mounting accessories | |
| EAMM-U-86-S62-80PB-177 | Parallel kit · Mounting accessories | |
| NEFM-S1G9-K-0,5-R3G8 | Adapter · Electrical accessories | |
| EAMM-A-S62-70GA | Axial kit · Mounting accessories | |
| EAMM-A-S62-80PB | Axial kit · Mounting accessories | |
| EAMM-A-S62-82AA | Axial kit · Mounting accessories | |
| EAMM-A-S62-84AA | Axial kit · Mounting accessories | |
| EMGA-60-P-G8-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-60-P-G12-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-60-P-G20-EAS-60 | Gear unit · Mounting accessories | |
| EAMM-A-S62-150A-G2 | Axial kit · Mounting accessories | |
| EAMM-U-145-S62-150A-288 | Parallel kit · Mounting accessories | |
| EAMM-A-S62-100A-G3 | Axial kit · Mounting accessories |
