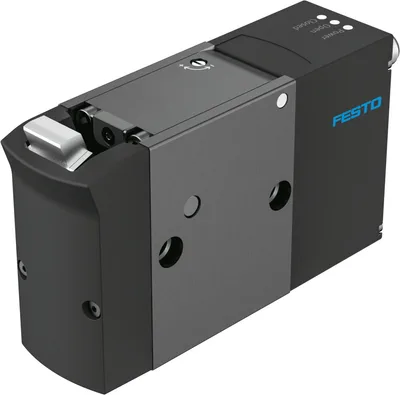

Festo EFSD-20-PV-M12

Stopper cylinder. Fast and simple set-up of transfer systems without compressed air. For stopping conveyed goods weighing between 0.25 kg and 100 kg. Status and error messages for visual error diagnostics. Controlled via digital I/O of a higher-order controller, e.g. terminal CPX, makes commissioning easier. Mounting interface for ease of mounting on transfer systems. Adjustable cushioning power

FestoMFR # EFSD-20-PV-M12SKU # YLSANLR0LRW02NQ

DesignElectric stopper cylinder

Size20

Mounting positionAny

Position detectionWith Hall sensor

Symbol00995845

Corrosion resistance class CRC1 - Low corrosion stress

Have questions?Chat on WhatsApp

About This Product

Festo EFSD-20-PV-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignElectric stopper cylinder

Size20

Mounting positionAny

Position detectionWith Hall sensor

Symbol00995845

Corrosion resistance class CRC1 - Low corrosion stress

Ambient temperature-10, 60

Storage temperature-20, 60

Relative air humidityNon-condensing

Cushioning length11.5

Product weight420

Max. cycle frequency0.33

Type of mountingWith mounting kit

Return-stroke time100

Advance time100

Permissible lateral force during switching operation20

ApprovalRCM

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material coverProcess automation, Reinforced PA

Material sealsNBR

Material housingHard anodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material screwsCoated steel

Max. current consumption2000

Nominal operating voltage DC24

Permissible voltage fluctuations+/- 15 %

Type of motorStepper motor

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Degree of protectionIP40

Max. cable length30 M

Ready status indicationLED

Electrical connection for actuator, connection typePlug

Electrical connection for actuator, connection technologyM12x1, A-coded to EN 61076-2-101

Electrical connection for actuator, number of pins/wires5

Electrical connection actuator, max. current consumption1.9

Electrical connection for sensor, connection typePlug

Electrical connection for sensor, connection technologyM12x1, A-coded to EN 61076-2-101

Electrical connection for sensor, number of pins/wires5

Electrical connection sensor, max. current consumption0.3

Accessories 8

Genuine accessories that can be used with the Festo EFSD-20-PV-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-10-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE5	Connecting cable · Connecting cables
