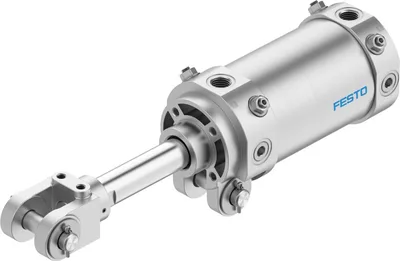

FESTO DWB-63-50-Y-AB

Hinge cylinder. For clamping components during the welding process. Double-acting. Easy to mount thanks to swivel bearing on the bearing cap. Integrated flow control. Integrated end-position cushioning. Rod wiper seal to protect against welding spatter. Asian automotive standard for car body production

FESTOMFR # DWB-63-50-Y-ABSKU # CEY-937FC781E23C

Stroke50

Piston diameter63 mm

Piston rod threadM16x1.5

Broad rod clevis/swivel mounting19.5

Mounting positionAny

Speed regulationIntegrated flow control at both ends

Have questions?Chat on WhatsApp

About This Product

FESTO DWB-63-50-Y-AB

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke50

Piston diameter63 mm

Piston rod threadM16x1.5

Broad rod clevis/swivel mounting19.5

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

DesignPiston, Piston rod with rod clevis, Swivel mounting on bearing cap, Cylinder barrel

Speed regulationIntegrated flow control at both ends

Position detectionVia proximity switch

Piston-rod endMale thread with rod clevis

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 60

Impact energy in end positions1.3

Cushioning length20

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

Moving mass for 0 mm stroke741

Additional moving mass per 10 mm stroke25

Basic weight for 0 mm stroke1600

Additional weight per 10 mm stroke42

alternative connectionsSee product drawing

Type of mountingVia swivel mounting on bearing cap, With accessories

Pneumatic connectionRc1/4

Material rod clevisCast steel, Tempered steel

Note on materialsRoHS compliant

Material wiperBronze

Material coverDie-cast aluminium, anodised

Material sealsNBR

Material piston rodTempered steel, Hard chrome-plated

Material cylinder barrelWrought aluminium alloy, anodised

Accessories 25

Genuine accessories that can be used with the FESTO DWB-63-50-Y-AB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-BSW-1L-NU-W-0.3-N-M12	Proximity sensor · Proximity sensors
SDBT-BSW-1L-PU-W-5-N-LE	Proximity sensor · Proximity sensors
SDBT-BSW-1L-NU-W-5-N-LE	Proximity sensor · Proximity sensors
SDBT-BSW-1L-PU-W-0.3-N-M12	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SMBR-8-8/100-S6	Mounting kit · Retainer for proximity sensor
QS-1/4-8	Push-in fitting · Fittings
QS-1/4-8-I	Push-in fitting · Fittings
QSL-1/4-8	Push-in L-fitting · Fittings
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
HNH-50/63/80	Foot mounting · Mounting accessories
TBH-50/63/80	Mounting bracket · Mounting accessories
DAMD-F5-S-50	Mounting kit · Mounting accessories
KTH-50/63/80	Switch lever · Mounting accessories
DARP-M16P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
