How can I get a price quote for FESTO DWA-63-100-Y-A?

You can request a fast quote for FESTO DWA-63-100-Y-A from Yılsa Engineering. Reference part number CEY-937FC781EAE8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DWA-63-100-Y-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DWA-63-100-Y-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DWA-63-100-Y-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

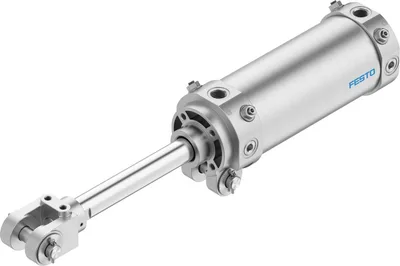

FESTO DWA-63-100-Y-A

Hinge cylinder. For clamping components during the welding process. Double-acting. Easy to mount thanks to swivel bearing on the bearing cap. Integrated flow control. Integrated end-position cushioning. Rod wiper seal to protect against welding spatter. Asian automotive standard for car body production

FESTOMFR # DWA-63-100-Y-ASKU # CEY-937FC781EAE8

Stroke100

Piston diameter63 mm

Piston rod threadM16x1.5

Broad rod clevis/swivel mounting16

Mounting positionAny

Speed regulationIntegrated flow control at both ends

Have questions?Chat on WhatsApp

About This Product

FESTO DWA-63-100-Y-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke100

Piston diameter63 mm

Piston rod threadM16x1.5

Broad rod clevis/swivel mounting16

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

DesignPiston, Piston rod with rod clevis, Swivel mounting on bearing cap, Cylinder barrel

Speed regulationIntegrated flow control at both ends

Position detectionVia proximity switch

Piston-rod endMale thread with rod clevis

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 60

Impact energy in end positions1.3

Cushioning length20

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

Moving mass for 0 mm stroke741

Additional moving mass per 10 mm stroke25

Basic weight for 0 mm stroke1600

Additional weight per 10 mm stroke42

alternative connectionsSee product drawing

Type of mountingVia swivel mounting on bearing cap, With accessories

Pneumatic connectionRc1/4

Material rod clevisCast steel, Tempered steel

Note on materialsRoHS compliant

Material wiperBronze

Material coverDie-cast aluminium, anodised

Material sealsNBR

Material piston rodTempered steel, Hard chrome-plated

Material cylinder barrelWrought aluminium alloy, anodised

Accessories 25

Genuine accessories that can be used with the FESTO DWA-63-100-Y-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBZ-8-32/100	Mounting · Retainer for proximity sensor
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-BSW-1L-NU-W-0.3-N-M12	Proximity sensor · Proximity sensors
SDBT-BSW-1L-PU-W-5-N-LE	Proximity sensor · Proximity sensors
QS-1/4-8	Push-in fitting · Fittings
SDBT-BSW-1L-NU-W-5-N-LE	Proximity sensor · Proximity sensors
QS-1/4-8-I	Push-in fitting · Fittings
QSL-1/4-8	Push-in L-fitting · Fittings
SDBT-BSW-1L-PU-W-0.3-N-M12	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
HNH-50/63/80	Foot mounting · Mounting accessories
TBH-50/63/80	Mounting bracket · Mounting accessories
DAMD-F5-S-50	Mounting kit · Mounting accessories
KTH-50/63/80	Switch lever · Mounting accessories
DARP-M16P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
