How can I get a price quote for Festo DRVS-8-90-P?

You can request a fast quote for Festo DRVS-8-90-P from Yılsa Engineering. Reference part number YLSEPJKSPJ3EC5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DRVS-8-90-P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DRVS-8-90-P genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DRVS-8-90-P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

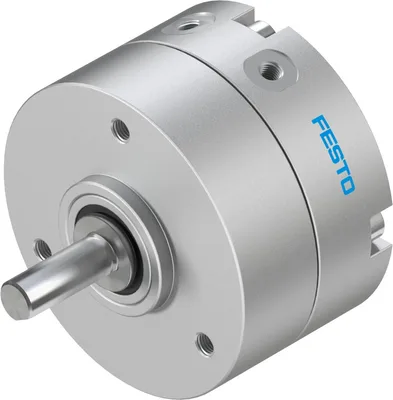

Festo DRVS-8-90-P

Semi-rotary drive. Double-acting semi-rotary drive with rotary vane. Lighter than other semi-rotary drives. Fixed swivel angle, adjustable swivel angle possible with the help of accessories. Housing protected against splash water and dust. Sustainable in production thanks to reduced use of materials

FestoMFR # DRVS-8-90-PSKU # YLSEPJKSPJ3EC5

Size8

Cushioning angle0.5

Swivel angle0, 90

Permissible stop radius10

Mounting positionAny

Mode of operationDouble-acting

Have questions?Chat on WhatsApp

About This Product

Festo DRVS-8-90-P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size8

Cushioning angle0.5

Swivel angle0, 90

Permissible stop radius10

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationDouble-acting

DesignVane

Position detectionVia proximity switch

Symbol00991265

VariantsSpigot shaft

Operating pressure0.35, 0.8

Operating pressure3.5, 8

Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3

Repetition accuracy1

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature0, 60

Max. stop force30

Max. axial force10

Max. radial force20

Theoretical torque at 0.6 MPa (6 bar, 87 psi)0.35

Permissible mass moment of inertia0.0013

Product weight68

Type of mountingWith female thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material drive shaftHigh-alloy stainless steel

Material sealsTPE-U(PU)

Material housingAnodised wrought aluminium alloy

Accessories 31

Genuine accessories that can be used with the Festo DRVS-8-90-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSML-M3-3	Push-in L-fitting · Fittings
DAMH-Q12-8	Foot mounting · Mounting accessories
GRLA-M3-QS-3	One-way flow control valve · Function fittings
KSM-8	Stop (kit) · Mounting accessories
QSM-M3-3	Push-in fitting · Fittings
SRBS-Q12-8-E270-EP-1-S-M8	Position sensor · Proximity sensors
PUN-H-3X0,5-BL	Plastic tubing · Tubes
QSM-M3-3-I	Push-in fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
