How can I get a price quote for Festo DRVS-6-180-P-EX4?

You can request a fast quote for Festo DRVS-6-180-P-EX4 from Yılsa Engineering. Reference part number YLSQ1O2A6XXAFG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DRVS-6-180-P-EX4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DRVS-6-180-P-EX4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DRVS-6-180-P-EX4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

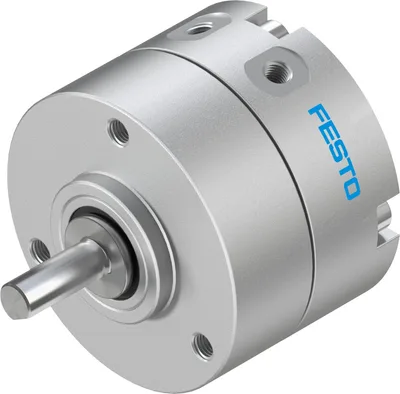

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DRVS-6-180-P-EX4

Semi-rotary drive. Double-acting semi-rotary drive with rotary vane. Lighter than other semi-rotary drives. Fixed swivel angle, adjustable swivel angle possible with the help of accessories. Housing protected against splash water and dust. Sustainable in production thanks to reduced use of materials

FestoMFR # DRVS-6-180-P-EX4SKU # YLSQ1O2A6XXAFG

Size6

Cushioning angle0.5

Swivel angle0, 180

Permissible stop radius10

Mounting positionAny

Mode of operationDouble-acting

Have questions?Chat on WhatsApp

About This Product

Festo DRVS-6-180-P-EX4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

Cushioning angle0.5

Swivel angle0, 180

Permissible stop radius10

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationDouble-acting

DesignVane

Position detectionVia proximity switch

Symbol00991265

VariantsSpigot shaft

Operating pressure0.35, 0.8

Operating pressure3.5, 8

Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)3

Repetition accuracy1

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb X

Explosion ignition protection type for dustEx h IIIC T120°C Db X

Explosion ambient temperature0°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature0, 60

Max. stop force15

Max. axial force10

Max. radial force15

Theoretical torque at 0.6 MPa (6 bar, 87 psi)0.15

Permissible mass moment of inertia6.5E-4

Product weight38

Type of mountingWith female thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material drive shaftHigh-alloy stainless steel

Material sealsTPE-U(PU)

Material housingAnodised wrought aluminium alloy

Accessories 29

Genuine accessories that can be used with the Festo DRVS-6-180-P-EX4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KSM-6	Stop (kit) · Mounting accessories
DAMH-Q12-6	Foot mounting · Mounting accessories
DADP-AK-Q1-6	Adapter kit · Mounting accessories
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-3	Push-in fitting · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-3	Push-in L-fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
WSM-6-SME-10	Mounting kit · Mounting kits for proximity sensors, other sensors
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLA-M3-QS-3	One-way flow control valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
