How can I get a price quote for FESTO DHTG-140-3-A?

You can request a fast quote for FESTO DHTG-140-3-A from Yılsa Engineering. Reference part number CEY-937FC781DC43. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DHTG-140-3-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DHTG-140-3-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DHTG-140-3-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

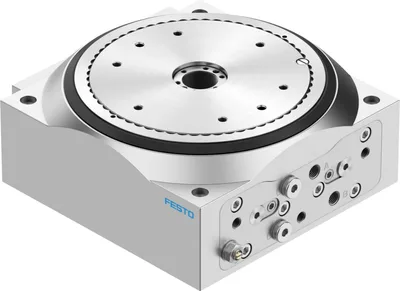

FESTO DHTG-140-3-A

Rotary indexing table. For swivelling or separating tasks. Sturdy mechanical system. Easy planning and commissioning. Rotary table diameters: 65, 90, 140, 220 mm. Free control of rotational direction. Sustainable thanks to extended life cycle and easier repairs

FESTOMFR # DHTG-140-3-ASKU # CEY-937FC781DC43

Size140

Parallelity poppet valve0.04

Axial eccentricity poppet valve0.02

Concentricity poppet valve0.02

Repetition accuracy of swivel angle0.03

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

FESTO DHTG-140-3-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size140

Parallelity poppet valve0.04

Axial eccentricity poppet valve0.02

Concentricity poppet valve0.02

Repetition accuracy of swivel angle0.03

CushioningShock absorber, hard characteristic curve, adjustable

Mounting positionAny

Mode of operationDouble-acting

DesignGear coupling, Rack and pinion, Force pilot operated motion sequence

Symbol00992251

Position detectionFor inductive sensors

Pitch3

Operating pressure0.3, 0.8

Operating pressure3, 8

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-20, 80

Sound pressure level70

Degree of protectionIP54

Ambient temperature5, 60

Mass moment of inertia3000

Max. axial force static4000

Max. pull-out torque static300

Max. radial force static6000

Max. tangential torque static200

Theoretical torque at 0.6 MPa (6 bar, 87 psi)18.1

Product weight10000

Type of mountingVia through-hole and centring sleeve

Pneumatic connectionFemale thread G1/8

Material poppet valveGalvanised steel

Note on materialsRoHS compliant

Material stopsGalvanised steel

Material coverWrought aluminium alloy

Material sealsNBR, TPE-U(PU)

Material housingWrought aluminium alloy

Accessories 31

Genuine accessories that can be used with the FESTO DHTG-140-3-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SIEN-M8B-PS-K-L	Proximity sensor · Proximity sensors
DADM-TK-140	Reciprocating motion kit · Mounting accessories
QS-G1/8-8	Push-in fitting · Fittings
SIEN-M8B-PS-S-L	Proximity sensor · Proximity sensors
QS-G1/8-8-I	Push-in fitting · Fittings
SIEN-M8B-PO-K-L	Proximity sensor · Proximity sensors
QSL-G1/8-8	Push-in L-fitting · Fittings
SIEN-M8B-PO-S-L	Proximity sensor · Proximity sensors
QS-G1/8-6	Push-in fitting · Fittings
QSL-G1/8-6	Push-in L-fitting · Fittings
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
SOIA-M8PB-PNLK-LE	Proximity switch · Proximity sensors
SOIA-M8PB-PNLK-M8	Proximity switch · Proximity sensors
SIEN-M8B-NS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NO-S-L	Proximity sensor · Cylinder sensors for direct mounting
GF-1/4-2	Rotary distributor · Mounting accessories
GF-1/4-1/8	Rotary distributor · Mounting accessories
DADM-CK-140-4	Indexing conversion kit · Mounting accessories
DADM-CK-140-6	Indexing conversion kit · Mounting accessories
DADM-CK-140-8	Indexing conversion kit · Mounting accessories
DADM-CK-140-12	Indexing conversion kit · Mounting accessories
DADM-CK-140-24	Indexing conversion kit · Mounting accessories
DADG-AK-140	Adapter kit · Mounting accessories
DADG-AK-140-1G14	Adapter kit · Mounting accessories
DADM-CK-140-3	Indexing conversion kit · Mounting accessories
