How can I get a price quote for FESTO DGSL-6-50-EA?

You can request a fast quote for FESTO DGSL-6-50-EA from Yılsa Engineering. Reference part number CEY-937FC781CE1D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DGSL-6-50-EA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DGSL-6-50-EA genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DGSL-6-50-EA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

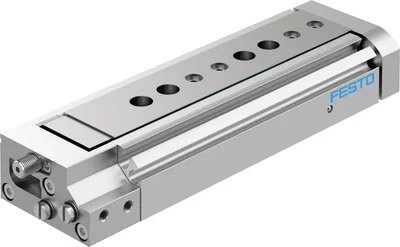

FESTO DGSL-6-50-EA

Mini slide. High load capacity and positioning accuracy. Maximum movement precision thanks to ground-in ball bearing cage guide. Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants. Variants with clamping unit or end-position locking for fixing the guide slide. Wide variety of mounting and attachment options. Compact design

FESTOMFR # DGSL-6-50-EASKU # CEY-937FC781CE1D

Stroke50

Piston diameter8 mm

Operating mode, drive unitYoke

Mounting positionAny

GuideBall bearing cage guide

DesignYoke, Piston, Piston rod, Slide

Have questions?Chat on WhatsApp

About This Product

FESTO DGSL-6-50-EA

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke50

Adjustable end position range/length front33

Adjustable end position range/length rear3.5

Piston diameter8 mm

Operating mode, drive unitYoke

CushioningShort elastic cushioning rings/pads at both ends

Mounting positionAny

GuideBall bearing cage guide

DesignYoke, Piston, Piston rod, Slide

Position detectionVia proximity switch

Symbol00991263

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Max. speed0.5

Repetition accuracy0.3 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Ambient temperature0, 60

Impact energy in end positions0.05

Cushioning length1.5

Max. force Fy719

Max. force Fz719

Max. moment Mx8

Max. moment My5.5

Max. moment Mz5.5

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke23

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke30

Moving mass99

Product weight236

alternative connectionsSee product drawing

Type of mountingWith through-hole

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsHNBR

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 56

Genuine accessories that can be used with the FESTO DGSL-6-50-EA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GRLA-M3-QS-3	One-way flow control valve · Function fittings
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
DADS-AB-G6-6-50	Covering · Mounting accessories
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
QSM-M3-3-I	Push-in fitting · Fittings
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
SME-10-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-10-SL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M3	One-way flow control valve · Function fittings
HAPS-11	Adapter kit · Mounting accessories
DYEF-M5-Y1F	Shock absorber · Mounting accessories
HMSV-53	Adapter kit · Mounting accessories
HMSV-57	Adapter kit · Mounting accessories
SME-10M	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
HMSV-70	Adapter kit · Mounting accessories
HMSV-73	Adapter kit · Mounting accessories
DYEF-S-M5-Y1	Shock absorber · Mounting accessories
DYEF-M5-Y1	Shock absorber · Mounting accessories
DADS-AB-G6-6-500	Covering · Mounting accessories
DHAA-D-G6-6-Q11-8	Adapter kit · Mounting accessories
ZBH-5-M4	Centring sleeve · Mounting accessories
SDBC-MSB-1L-ZU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
ZBH-5-B	Centring sleeve · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
