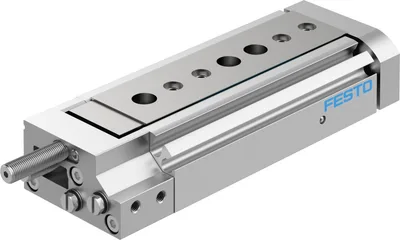

FESTO DGSL-6-30-PA

Mini slide. High load capacity and positioning accuracy. Maximum movement precision thanks to ground-in ball bearing cage guide. Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants. Variants with clamping unit or end-position locking for fixing the guide slide. Wide variety of mounting and attachment options. Compact design

FESTOMFR # DGSL-6-30-PASKU # CEY-937FC781EEC4

Stroke30

Piston diameter8 mm

Operating mode, drive unitYoke

Mounting positionAny

GuideBall bearing cage guide

DesignYoke, Piston, Piston rod, Slide

Have questions?Chat on WhatsApp

About This Product

FESTO DGSL-6-30-PA

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke30

Adjustable end position range/length front30.5

Adjustable end position range/length rear15

Piston diameter8 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuideBall bearing cage guide

DesignYoke, Piston, Piston rod, Slide

Position detectionVia proximity switch

Symbol00991263

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Max. speed0.5

Repetition accuracy0.3 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Ambient temperature0, 60

Impact energy in end positions0.05

Cushioning length1.5

Max. force Fy631

Max. force Fz631

Max. moment Mx8

Max. moment My5.5

Max. moment Mz5.5

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke23

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke30

Moving mass83

Product weight204

alternative connectionsSee product drawing

Type of mountingWith through-hole

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsHNBR

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 56

Genuine accessories that can be used with the FESTO DGSL-6-30-PA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GRLA-M3-QS-3	One-way flow control valve · Function fittings
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
DADS-AB-G6-6-50	Covering · Mounting accessories
QSM-M3-3	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
QSM-M3-3-I	Push-in fitting · Fittings
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
SME-10-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-10-SL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M3	One-way flow control valve · Function fittings
HAPS-11	Adapter kit · Mounting accessories
DYEF-M5-Y1F	Shock absorber · Mounting accessories
HMSV-53	Adapter kit · Mounting accessories
HMSV-57	Adapter kit · Mounting accessories
SME-10M	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
HMSV-70	Adapter kit · Mounting accessories
HMSV-73	Adapter kit · Mounting accessories
DYEF-S-M5-Y1	Shock absorber · Mounting accessories
DYEF-M5-Y1	Shock absorber · Mounting accessories
DADS-AB-G6-6-500	Covering · Mounting accessories
DHAA-D-G6-6-Q11-8	Adapter kit · Mounting accessories
ZBH-5-M4	Centring sleeve · Mounting accessories
SDBC-MSB-1L-ZU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
ZBH-5-B	Centring sleeve · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
