How can I get a price quote for Festo DGCI-63- -?

You can request a fast quote for Festo DGCI-63- - from Yılsa Engineering. Reference part number YLSM6EFKLPMQCL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DGCI-63- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DGCI-63- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DGCI-63- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

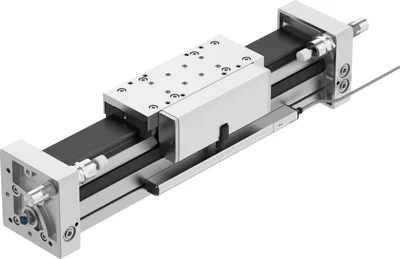

Festo DGCI-63- -

Linear drive. With guide. With displacement encoder for absolute, contactless measurement. Suitable for servo-pneumatic applications with axis controller CPX-CMAX, end-position controller CPX-CMPX or SPC11 and measuring module CPX-CMIX. Choice of supply ports on end face or front

FestoMFR # DGCI-63- -SKU # YLSM6EFKLPMQCL

Stroke100, 2000

Stroke Servopneumatic positioning100, 2000

Stroke Smart Softstop100, 2000

Stroke reduction at end positions35 mm

Smallest positioning stroke3% of max. stroke, But max. 20 mm

Piston diameter63 mm

Have questions?Chat on WhatsApp

About This Product

Festo DGCI-63- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke100, 2000

Stroke Servopneumatic positioning100, 2000

Stroke Smart Softstop100, 2000

Stroke reduction at end positions35 mm

Smallest positioning stroke3% of max. stroke, But max. 20 mm

Piston diameter63 mm

CushioningShock absorber, hard characteristic curve, Shock absorber, soft characteristic curve

Mounting positionAny

GuideRecirculating ball bearing guide

Position detectionWith attached displacement encoder

VariantsAdditional slide, standard, on left, Additional slide, standard, on right

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Mode of operationDouble-acting

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions

Explosion protection certification outside the EUEPL Gc (GB)

Explosion protectionZone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX)

ATEX category gasII 3G

ATEX category dustII 3D

Explosion ignition protection type for gasEx ec IIC T4 Gc X

Explosion ignition protection type for dustEx tc IIIC T120°C Dc X

Explosion ambient temperature0°C <= Ta <= +50°C

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress, 2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Suitable for use with foodSee supplementary material information

Ambient temperature-10, 60

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1870

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

alternative connectionsSee product drawing

Type of mountingWith accessories

Pneumatic connectionG3/8

Material coverWrought aluminium alloy

Material sealsNBR, TPE-U(PU)

Accessories 15

Genuine accessories that can be used with the Festo DGCI-63- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
SPC11-MTS-AIF-2	End position controller · Electrical accessories
P.BE-SPC11-DGCI-DE	Description · General accessories
P.BE-SPC11-DGCI-EN	Description · General accessories
P.BE-SPC11-DGCI-ES	Description · General accessories
P.BE-SPC11-DGCI-FR	Description · General accessories
P.BE-SPC11-DGCI-IT	Description · General accessories
VPWP-4-	Proportional directional control valve · Connection accessories
VPWP-6-	Proportional directional control valve · Connection accessories
VPWP-8-	Proportional directional control valve · Connection accessories
VPWP-10-L-5-Q-10-E-G-EX1	Proportional directional control valve · Connection accessories
