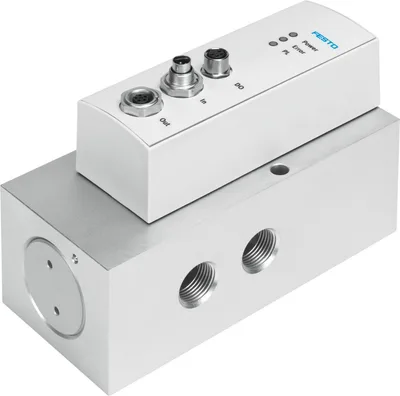

FESTO VPWP-10-L-5-Q-10-E-G-EX1

Proportional directional control valve. Controlled piston spool valve. Digitally actuated. Integrated pressure sensors for monitoring function and force control. With auto identification. Diagnostic function. Integrated digital output, e.g. for a clamping/brake unit. Suitable for servo-pneumatic applications with axis controller CPX-CMAX and end-position controller CPX-CMPX

FESTOMFR # VPWP-10-L-5-Q-10-E-G-EX1SKU # CEY-937FC781AF10

Nominal size10

Type of actuationElectrical

Sealing principleHard

Type of resetMagnetic spring

Type of pilotingDirect

Flow directionNon-reversible

Have questions?Chat on WhatsApp

About This Product

FESTO VPWP-10-L-5-Q-10-E-G-EX1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size10

Type of actuationElectrical

Sealing principleHard

Mounting positionAny, Preferably horizontal (display elements facing upwards) If the valve is moved, it must be mounted at a right angle to the direction of movement

DesignPiston gate valve, With integrated pressure sensors

Type of resetMagnetic spring

Safety instructionsSafety position VPWP: if there is a problem with the control interface, the valve assumes the closed mid-position.

Type of pilotingDirect

Flow directionNon-reversible

Symbol00992136

Valve function5/3-way proportional directional control valve, closed

Status displaysLED yellow = PL (power load), LED green = power, Red LED = error

Operating pressure0, 1

Operating pressure0, 10

Operating pressure positioning/Soft Stop4, 8

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Standard nominal flow rate (standardised to DIN 1343)2000

Nominal operating voltage DC24

Operational voltage range DC18, 30

Load voltage range DC18, 30

Max. load current of the voltage output500

Max. load current of the digital output500

Max. current consumption of valve drive1.2

Max. current consumption, logic0.15

Nominal load voltage DC24

Supply voltage of the digital output24 V load voltage

Supply voltage of the voltage output24 V load voltage

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protectionZone 2 (ATEX)

ATEX category gasII 3G

Explosion ignition protection type for gasEx nA IIC T5 X Gc

Explosion ambient temperature0°C <= Ta <= +50°C

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature0, 50

Degree of protectionIP65, In mounted state

Ambient temperature0, 50

Product weight1010

Pressure resolution0.01

Linearity error in ± %FS1.5

Repetition accuracy FS1

Design of the 24 V voltage outputReverse supply with no damage, No galvanic isolation, Protected against short circuits, Reverse supply with no damage

Digital output designTo IEC 61131-2, positive logic (PNP), No galvanic isolation, Protected against short circuits, Reverse supply with no damage

Control-InterfaceDigital, CAN bus with Festo protocol, Integrated terminating resistor

Electrical connection fieldbus interface INPlug, M9, 5-pin

Electrical connection fieldbus interface OUTSocket, M9, 5-pin

Fieldbus interface electrical connectionSocket, M8, 4-pin

Type of mountingWith through-hole, With accessories

Colour of connectionsPort 2: Blue, Port 4: Black

Pneumatic connection, port 1G3/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 3G3/8

Pneumatic connection, port 4G3/8

Pneumatic connection, port 5G3/8
