How can I get a price quote for Festo DFPI-200- -?

You can request a fast quote for Festo DFPI-200- - from Yılsa Engineering. Reference part number YLSRUJTOUATKPKN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DFPI-200- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DFPI-200- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DFPI-200- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

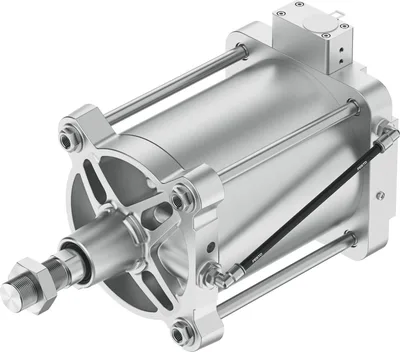

Festo DFPI-200- -

Linear drive. Mounting interfaces to ISO 15552 on bearing and end caps. Sturdy tie rod design. Integrated air supply. Optionally with integrated displacement encoder or fully integrated positioner. IP65, IP67, IP69K, NEMA4. To EU Explosion Protection Directive (ATEX)

FestoMFR # DFPI-200- -SKU # YLSRUJTOUATKPKN

Size of valve actuator200

Stroke40, 990

Piston diameter200 mm

Based on standardISO 15552

CushioningNo cushioning

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo DFPI-200- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator200

Stroke40, 990

Piston diameter200 mm

Based on standardISO 15552

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia integrated displacement encoder

Symbol00992807

Functional principle of measuring systemPotentiometer

Reverse polarity protectionYes

Operating pressure0.3, 0.8

Operating pressure3, 8

Operating pressure43.5, 116

Nominal operating pressure0.6

Nominal operating pressure6

Analogue output4 - 20 mA

Operational voltage range DC9, 30

Recommended wiper current0.1

Max. wiper current, short-time10000

Power supply2-wire

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T120°C Db

Explosion ambient temperature-20°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 80

Relative air humidity5 - 100%, Condensing, Non-condensing

Degree of protectionIP65, IP67, IP69K, NEMA 4

Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2

Ambient temperature-20, 80

Impact energy in end positions1

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke18080

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke18850

Air consumption on return stroke per 10 mm2.111

Air consumption on advance stroke per 10 mm2.199

Moving mass for 0 mm stroke4800

Additional moving mass per 10 mm stroke89

Basic weight for 0 mm stroke18100, 19800

Additional weight per 10 mm stroke238

Hysteresis0.4

Non-dependent linearity±0.05 %

Repetition accuracy in ± %FS1

Repetition accuracy in ± mm0.7

Electrical connectionCable connector M16x1.5, M12x1, Straight plug connector/screw terminal, Straight plug, With specific accessories

Pneumatic connectionG3/8, G1/2, For tubing O.D. 8 mm, With specific accessories

Note on materialsRoHS compliant

Material end capCoated wrought aluminium alloy

Material underneath coverDie-cast aluminium, coated

Material electrical connectionBrass, nickel-plated, High-alloy stainless steel

Material piston rodHigh-alloy stainless steel

Material piston rod wiperNBR

Pipe materialHigh-alloy stainless steel

Material tubingPackaging unit

Material screwsCoated steel, High-alloy stainless steel

Material static sealsNBR

Material fittingBrass, nickel-plated, High-alloy stainless steel

Material tie rodHigh-alloy stainless steel

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 26

Genuine accessories that can be used with the Festo DFPI-200- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G12-Q12	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G12-Q12-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
SG-M36X2	Rod clevis · Piston rod attachments
FK-M36X2	Self-aligning rod coupler · Piston rod attachments
SGS-M36X2	Rod eye · Piston rod attachments
ABP-5-S	Slot cover · Mounting accessories
SMBK-8	Clip · Mounting accessories
SMM-8	Positioning element · Mounting accessories
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-10,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M12-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Cylinder sensors for direct mounting
DADG-AK-F6-A2	Adapter kit · Mounting accessories
CMSX-P-S-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-130-C	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
VTOP-	Valve terminal · Cylinder sensors for direct mounting
CMSH-	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-50-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-50-C	Positioner · Cylinder sensors for direct mounting
