How can I get a price quote for Festo DACS-20-A-S?

You can request a fast quote for Festo DACS-20-A-S from Yılsa Engineering. Reference part number YLSATMYWFWJTJ78. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DACS-20-A-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DACS-20-A-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DACS-20-A-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

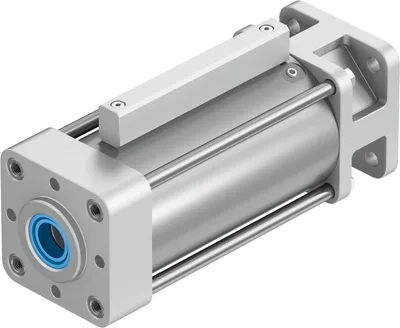

Festo DACS-20-A-S

Holding brake. Holding function: retains the piston rod by clamping with frictional locking. Emergency braking function: stops the movement of the piston rod by clamping with frictional locking. With safety functions. Compact design. Optional: high level of corrosion protection. For position sensing

FestoMFR # DACS-20-A-SSKU # YLSATMYWFWJTJ78

Mounting positionAny

Symbol00992086

Position detectionVia proximity switch

Safety functionHolding and stopping a movement

Operating pressure0.38, 0.8

Operating pressure3.8, 8

Have questions?Chat on WhatsApp

About This Product

Festo DACS-20-A-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Mounting positionAny

Type of clamping with direction of actionAt both ends, Clamping via spring force, released via compressed air

Symbol00992086

Position detectionVia proximity switch

Safety functionHolding and stopping a movement

Performance Level (PL)Stopping, holding, blocking a movement/category 1, Performance Level c

Operating pressure0.38, 0.8

Operating pressure3.8, 8

Operating pressure55.1, 116

Max. permissible test pressure8

Min. release pressure3.8

Round material to be clamped20

ApprovalGerman Technical Control Board (TÜV)

CE mark (see declaration of conformity)To EC Machinery Directive

UKCA marking (see declaration of conformity)To UK regulations for machines

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board (TÜV) CA 697

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-20, 80

Static holding force3300

Product weight3143

Type of mountingWith female thread, With accessories

Release connection, clamping unitG1/8

Note on materialsRoHS compliant

Material sealsNBR, TPE-U(PU)

Material springHigh-alloy steel

Material housingSteel

Material clamp jawsTool steel

Material pistonSteel

Accessories 39

Genuine accessories that can be used with the Festo DACS-20-A-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-1/8-4-100	Push-in fitting · Push-in fittings
QS-1/8-6-100	Push-in fitting · Push-in fittings
QS-1/8-8-50	Push-in fitting · Push-in fittings
QS-G1/8-4-100	Push-in fitting · Push-in fittings
QS-G1/8-6-100	Push-in fitting · Push-in fittings
QS-G1/8-8-50	Push-in fitting · Push-in fittings
QS-V0-1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QS-1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-8-I-50	Push-in fitting · Push-in fittings
QS-1/8-4-I-100	Push-in fitting · Push-in fittings
QS-1/8-4	Push-in fitting · Push-in fittings
QS-1/8-6	Push-in fitting · Push-in fittings
QS-1/8-8	Push-in fitting · Push-in fittings
QS-1/8-4-I	Push-in fitting · Push-in fittings
QS-1/8-6-I	Push-in fitting · Push-in fittings
QS-1/8-8-I	Push-in fitting · Push-in fittings
QS-V0-1/8-6	Push-in fitting · Push-in fittings
QS-V0-1/8-8	Push-in fitting · Push-in fittings
CRFNG-63	Flange mounting · Cylinder mountings
HNC-63	Foot mounting · Cylinder mountings
FNC-63	Flange mounting · Cylinder mountings
CRHNC-63	Foot mounting · Cylinder mountings
QS-1/8-1/4-I-U-M	Push-in fitting · Push-in fittings
QS-1/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-G1/8-4	Push-in fitting · Push-in fittings
QS-G1/8-6	Push-in fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
QS-V0-G1/8-6	Push-in fitting · Push-in fittings
QS-V0-G1/8-8	Push-in fitting · Push-in fittings
QS-1/8-10	Push-in fitting · Push-in fittings
QS-1/8-10-I	Push-in fitting · Push-in fittings
