How can I get a price quote for Festo CPV-SC-FB-VI?

You can request a fast quote for Festo CPV-SC-FB-VI from Yılsa Engineering. Reference part number YLS6IGZMIB1GONZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPV-SC-FB-VI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPV-SC-FB-VI genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPV-SC-FB-VI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

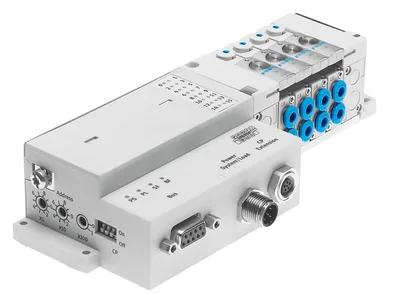

Festo CPV-SC-FB-VI

Valve terminal. High flow rate even with a compact design. Suitable for vacuum. Multi-pin or fieldbus control. Max. 16 valves

FestoMFR # CPV-SC-FB-VISKU # YLS6IGZMIB1GONZ

Electrical controlCPI installation system, Fieldbus

Electrical I/O systemYes

Terminal type80

Media temperature-5, 50

Ambient temperature-5, 50

Degree of protectionIP40

Have questions?Chat on WhatsApp

About This Product

Valve terminal. High flow rate even with a compact design. Suitable for vacuum. Multi-pin or fieldbus control. Max. 16 valves

Festo CPV-SC-FB-VI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlCPI installation system, Fieldbus

Electrical I/O systemYes

Terminal type80

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-5, 50

Ambient temperature-5, 50

Degree of protectionIP40

Corrosion resistance class CRC1 - Low corrosion stress

Operating pressure-0.09, 0.7

Operating pressure-0.9, 7

Pilot pressure0.3, 0.7

Pilot pressure3, 7

Operating pressure for valve terminal with internal pilot air supply0.3, 0.7

Operating pressure for valve terminal with internal pilot air supply3, 7

LABS (PWIS) conformityVDMA24364-B2-L

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

KC markKC-EMV

Approvalc UL us - Recognised (Oil)

Note on materialsRoHS compliant

Valve terminal structureFixed grid

Max. number of valve positions16

Max. number of pressure zones8

Type of actuationElectrical

Valve function2/2-way, single solenoid, closed, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double solenoid, 5/2-way, single solenoid

DesignPiston gate valve

Valve size10

Pilot air supplyExternal, Internal

Max. standard nominal flow rate170 l/min at 10 mm

Nominal size2.5

Suitability for vacuumYes

Exhaust-air functionCannot be throttled

pneumatic working portM5, QS-3, QS-4

Signal status displayLED

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

Accessories 54

Genuine accessories that can be used with the Festo CPV-SC-FB-VI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
UC-M7	Silencer · Silencer
UC-M5	Silencer · Silencer
UC-QS-3H	Silencer · Silencer
UC-QS-4H	Silencer · Silencer
UC-QS-6H	Silencer · Silencer
MH-BZ-80X	Inscription label · General accessories
CPVSC1-SP-P-M5	Air supply plate · Mounting accessories
CPVSC1-SP-P-Q4	Air supply plate · Mounting accessories
CPVSC1-SP-PRS-M5	Air supply plate · Mounting accessories
CPVSC1-SP-PRS-Q4	Air supply plate · Mounting accessories
CPVSC1-SP-M5	Air supply plate · Mounting accessories
CPVSC1-SP-Q4	Air supply plate · Mounting accessories
CPVSC1-SP-P	Air supply plate · Mounting accessories
CPVSC1-SP-PRS	Air supply plate · Mounting accessories
CPVSC1-SP	Air supply plate · Mounting accessories
CPVSC1-ST-4	Inscription label holder · General accessories
CPVSC1-ST-8	Inscription label holder · General accessories
CPVSC1-ST-12	Inscription label holder · General accessories
CPVSC1-ST-16	Inscription label holder · General accessories
CPVSC1-HS35	Mounting · Mounting accessories
DIN 912-M3X45-8.8	Socket head screw · Mounting accessories
CPV-SC-_-VI-DE	Description · General accessories
CPV-SC-_-VI-EN	Description · General accessories
CPV-SC-_-VI-FR	Description · General accessories
CPV-SC-_-VI-ES	Description · General accessories
CPV-SC-_-VI-IT	Description · General accessories
CPVSC1-ZA-4	Tie rod · Mounting accessories
CPVSC1-ZA-8	Tie rod · Mounting accessories
CPVSC1-ZA-12	Tie rod · Mounting accessories
CPVSC1-ZA-16	Tie rod · Mounting accessories
UC-M5-50	Silencer · Silencer
UC-M7-50	Silencer · Silencer
CPVSC1-ST-2	Inscription label holder · General accessories
CPVSC1-ST-3	Inscription label holder · General accessories
CPVSC1-ST-5	Inscription label holder · General accessories
CPVSC1-ST-6	Inscription label holder · General accessories
CPVSC1-ST-7	Inscription label holder · General accessories
CPVSC1-ST-9	Inscription label holder · General accessories
CPVSC1-ST-10	Inscription label holder · General accessories
CPVSC1-ST-11	Inscription label holder · General accessories
CPVSC1-ST-13	Inscription label holder · General accessories
CPVSC1-ST-14	Inscription label holder · General accessories
CPVSC1-ST-15	Inscription label holder · General accessories
CPVSC1-ZA-2	Tie rod · Mounting accessories
CPVSC1-ZA-3	Tie rod · Mounting accessories
CPVSC1-ZA-5	Tie rod · Mounting accessories
CPVSC1-ZA-6	Tie rod · Mounting accessories
CPVSC1-ZA-7	Tie rod · Mounting accessories
CPVSC1-ZA-9	Tie rod · Mounting accessories
CPVSC1-ZA-10	Tie rod · Mounting accessories
CPVSC1-ZA-11	Tie rod · Mounting accessories
CPVSC1-ZA-13	Tie rod · Mounting accessories
CPVSC1-ZA-14	Tie rod · Mounting accessories
CPVSC1-ZA-15	Tie rod · Mounting accessories
