How can I get a price quote for Festo CPE24-M2H-5JS-QS-12?

You can request a fast quote for Festo CPE24-M2H-5JS-QS-12 from Yılsa Engineering. Reference part number CEY-937FC7824125. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPE24-M2H-5JS-QS-12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPE24-M2H-5JS-QS-12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPE24-M2H-5JS-QS-12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

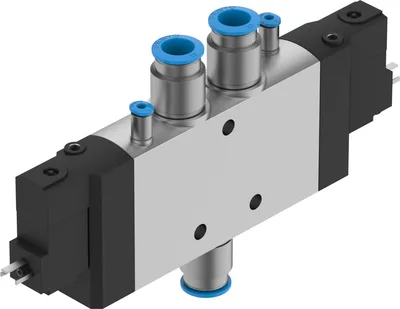

Festo CPE24-M2H-5JS-QS-12

Solenoid valve. Universal individual valve. High flow rate relative to its size

FestoMFR # CPE24-M2H-5JS-QS-12SKU # CEY-937FC7824125

Valve function5/2-way, double solenoid

Type of actuationElectrical

Construction width24

pneumatic working portQS-12

Operating voltage110V AC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Universal individual valve. High flow rate relative to its size

Festo CPE24-M2H-5JS-QS-12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Construction width24

Standard nominal flow rate (standardised to DIN 1343)1650

pneumatic working portQS-12

Operating voltage110V AC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Approvalc UL us - Recognised (Oil)

Maritime classificationSee certificate

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Certificate issuing authorityDNV-TAA000032X, UL MH19482

Degree of protectionIP65, With plug socket, To IEC 60529

Nominal size11

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting via accessory, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00991016

Valve position codeLabel holder

lapOverlap

Pilot pressure0.2, 1

Pilot pressure2, 10

Switching time reversal25

Duty cycle100%

Max. positive test pulse with 0 signal3300

Max. negative test pulse with 1 signal3100

Characteristic coil data110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA

Permissible voltage fluctuations-15% / +10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Electrical connectionType C

Type of mountingWith through-hole

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pilot air port 12M5

Pilot air port 14M5

Pneumatic connection, port 1QS-12

Pneumatic connection, port 2QS-12

Pneumatic connection, port 3G3/8

Pneumatic connection, port 4QS-12

Pneumatic connection, port 5G3/8

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 94

Genuine accessories that can be used with the Festo CPE24-M2H-5JS-QS-12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
IBS-6X10	Inscription label · General accessories
AHB-MEB	Manual override · General accessories
MSSD-EB	Plug socket · Electrical accessories
KMEB-1-230AC-2.5	Plug socket with cable · Electrical accessories
MEB-LD-230AC	Illuminating seal · Electrical accessories
AMTE-M-LH-M5	Silencer · Silencer
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
PUN-H-12X2-TSW	Plastic tubing · Tubes
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-CM-12-SW	Plastic tubing · Tubing
KMEB-1-230AC-5	Plug socket with cable · Electrical accessories
PUN-12X2-SI	Plastic tubing · Tubing
PAN-12X1,75-SI	Plastic tubing · Tubing
PUN-12X2-BL	Plastic tubing · Tubing
PUN-12X2-SW	Plastic tubing · Tubing
PAN-V0-12X1,5-SW	Plastic tubing · Tubing
UC-M5	Silencer · Silencer
KMEB-2-230-2,5	Plug socket with cable · Electrical accessories
KMEB-2-230-5	Plug socket with cable · Electrical accessories
PUN-12X2-RT	Plastic tubing · Tubing
PUN-12X2-GE	Plastic tubing · Tubing
PUN-12X2-GN	Plastic tubing · Tubing
PLN-12X1,75-NT	Plastic tubing · Tubing
PLN-12X1,75-SW	Plastic tubing · Tubing
PFAN-12X1,75-NT	Plastic tubing · Tubing
PAN-V0-12X1,5-BL	Plastic tubing · Tubing
PAN-V0-12X1,5-GN	Plastic tubing · Tubing
PAN-V0-12X1,5-RT	Plastic tubing · Tubing
PAN-V0-12X1,5-WS	Plastic tubing · Tubing
PAN-V0-12X1,5-GE	Plastic tubing · Tubing
PUN-12X2-SI-200	Plastic tubing · Tubing
PUN-12X2-BL-200	Plastic tubing · Tubing
UC-M5-50	Silencer · Silencer
MSSD-EB-M12	Socket · Electrical accessories
PAN-R-12X2,2-SI	Heavy-duty tubing · Tubing
PEN-12X1,75-SW	Plastic tubing · Tubing
PEN-12X1,75-NT	Plastic tubing · Tubing
PAN-12X1,75-NT	Plastic tubing · Tubing
PEN-12X1,75-SW-200	Plastic tubing · Tubing
PEN-12X1,75-BL-200	Plastic tubing · Tubing
PEN-12X1,75-SI-200	Plastic tubing · Tubing
PEN-12X1,75-BL	Plastic tubing · Tubing
PEN-12X1,75-SI	Plastic tubing · Tubing
PEN-12X1,75-GN	Plastic tubing · Tubing
PEN-12X1,75-RT	Plastic tubing · Tubing
PEN-12X1,75-GE	Plastic tubing · Tubing
PAN-12X1,75-SI-200	Plastic tubing · Tubing
PAN-12X1,75-BL-200	Plastic tubing · Tubing
PAN-12X1,75-SW-200	Plastic tubing · Tubing
PAN-12X1,75-BL	Plastic tubing · Tubing
PAN-12X1,75-SW	Plastic tubing · Tubing
PAN-12X1,75-GN	Plastic tubing · Tubing
PAN-12X1,75-RT	Plastic tubing · Tubing
PAN-12X1,75-GE	Plastic tubing · Tubing
PUN-12X2-SW-200	Plastic tubing · Tubing
PLN-12X1,75-BL	Plastic tubing · Tubing
PLN-12X1,75-SI	Plastic tubing · Tubing
PLN-12X1,75-RT	Plastic tubing · Tubing
PUN-H-12X2-SW-200	Plastic tubing · Tubing
PUN-H-12X2-BL-200	Plastic tubing · Tubing
PUN-H-12X2-NT-200	Plastic tubing · Tubing
PUN-H-12X2-SI-200	Plastic tubing · Tubing
PUN-H-12X2-SI	Plastic tubing · Tubing
PUN-H-12X2-RT	Plastic tubing · Tubing
PUN-H-12X2-GN	Plastic tubing · Tubing
PUN-H-12X2-GE	Plastic tubing · Tubing
PUN-V0-12X2-SW-C	Plastic tubing · Tubing
PUN-V0-12X2-BL-C	Plastic tubing · Tubing
PUN-V0-12X2-GN-C	Plastic tubing · Tubing
PUN-V0-12X2-RT-C	Plastic tubing · Tubing
PUN-V0-12X2-WS-C	Plastic tubing · Tubing
PUN-V0-12X2-GE-C	Plastic tubing · Tubing
PUN-V0-12X2-BR-C	Plastic tubing · Tubing
PAN-MF-12X1,5-SW	Plastic tubing · Tubing
UC-3/8-20	Silencer · Silencer
UC-3/8	Silencer · Silencer
PUN-H-12X2-TBL-200	Plastic tubing · Tubing
PUN-H-12X2-TSW-200	Plastic tubing · Tubing
PUN-H-12X2-TRT	Plastic tubing · Tubing
PUN-H-12X2-TRT-200	Plastic tubing · Tubing
PUN-H-12X2-TGN	Plastic tubing · Tubing
PUN-H-12X2-TGN-200	Plastic tubing · Tubing
PUN-H-12X2-TGE	Plastic tubing · Tubing
PUN-H-12X2-TGE-200	Plastic tubing · Tubing
PTFEN-12X2-NT	Plastic tubing · Tubing
PUN-H-F-12X2-NT	Plastic tubing · Tubing
PUN-H-F-12X2-RT	Plastic tubing · Tubing
PUN-H-F-12X2-BL	Plastic tubing · Tubing
PUN-H-F-12X2-TBL	Plastic tubing · Tubing
PUN-H-F-12X2-GN	Plastic tubing · Tubing
PUN-H-F-12X2-GE	Plastic tubing · Tubing
PUN-H-F-12X2-SW	Plastic tubing · Tubing
