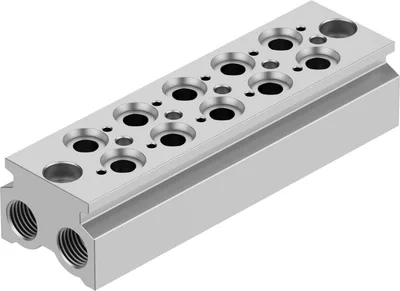

FESTO CPE18-3/2-PRS-3/8-5
Manifold block
Grid dimension26
Mounting positionAny
Max. number of valve positions5
Max. number of pressure zones2
Burst pressure5
Burst pressure50
About This Product
FESTO CPE18-3/2-PRS-3/8-5 (Manifold block) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO CPE18-3/2-PRS-3/8-5 — price, stock availability and technical specifications.
FESTO CPE18-3/2-PRS-3/8-5
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Grid dimension26
Mounting positionAny
Max. number of valve positions5
Max. number of pressure zones2
Burst pressure5
Burst pressure50
Burst pressure725
Operating pressure-0.09, 1
Operating pressure-0.9, 10
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5, 50
Ambient temperature-5, 50
Max. tightening torque for valve mounting2
Product weight507
Type of mounting in-line valve manifoldWith through-hole
Mounting method for valveWith female thread
Pneumatic connection, port 1G3/8
Pneumatic connection, port 3G3/8
Pneumatic connection, port 5G3/8
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Accessories 36
Genuine accessories that can be used with the FESTO CPE18-3/2-PRS-3/8-5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QS-3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-3/8-12-20 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QS-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-3/8-12-I | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-3/8-12 | Push-in fitting · Push-in fittings | |
| QS-3/8-16 | Push-in fitting · Push-in fittings | |
| QS-3/8-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-3/8-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QS-3/8-6 | Push-in fitting · Push-in fittings | |
| M4X65-8.8-VS-100 | Socket head screw · Connection accessories | |
| CPV18-VI-P.1/4-150 | Seal · Connection accessories | |
| CPE18-H3-SET | Retaining bracket · Connection accessories | |
| CPE18-RP3 | Cover plate · Connection accessories | |
| CPE18-H3-50 | Retaining bracket · Connection accessories | |
| UC-3/8-20 | Silencer · Silencer | |
| UC-3/8 | Silencer · Silencer |
