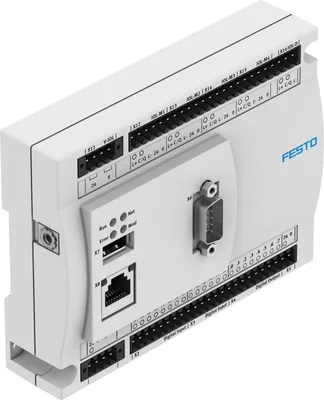

FESTO CECC-LK

Controller. Compact programmable logic controller. Programming with CoDeSys to IEC 61131-3. 12 digital inputs, 8 digital outputs, and also two high-speed counters up to 200 kHz. Ethernet 10/100 Mbit/s. USB interface for data transfer

FESTOMFR # CECC-LKSKU # CEY-937FC78286C4

Corrosion resistance class CRC0 - No corrosion stress

ApprovalRCM, c UL us - Listed (Oil)

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Nominal operating voltage DC24

Operating voltage19.2 - 30 V DC

Have questions?Chat on WhatsApp

About This Product

FESTO CECC-LK

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Corrosion resistance class CRC0 - No corrosion stress

ApprovalRCM, c UL us - Listed (Oil)

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Nominal operating voltage DC24

Operating voltage19.2 - 30 V DC

Current consumption120 mA

Max. power supply6

Ambient temperature0, 55

Storage temperature-25, 70

Relative air humidity95%, Non-condensing

Degree of protectionIP20

Protection classIII

Product weight270

Vibration resistance testTo EN 61131-2

Shock resistance testTo EN 61131-2

Electrical connection system I/OsSocket strip, grid 3.5 mm

Status displaysLED

CPU dataDual core 500 MHz

Digital input, number12

Digital inputs, switching logicPositive logic (PNP)

Digital inputs, high-speed counter inputs2, each with max. 200 kHz

Digital inputs, input signal delay3 ms (typ.)

Digital inputs, input voltage/current24 VDC

Digital inputs, nominal value for TRUE>= 15 VDC

Digital inputs, nominal value for FALSE<= 5 VDC

Digital inputs, electrical isolationyes, optocoupler

Digital inputs, status displayLED

Max. cable length30 m inputs

Digital outputs, number8

Digital outputs, switching logicPositive logic (PNP)

Digital outputs, contactTransistor

Digital outputs, output voltage24 V DC

Digital outputs, output current500 mA

Digital outputs, electrical isolationyes, optocoupler

Digital outputs, switching frequencymax. 1 kHz

Digital outputs, short circuit current ratingYes

Digital outputs, status displayLED

ProtocolCAN, CANopen

IO-Link, Protocol versionDevice V 1.0, Master V 1.1

IO-Link, communication modeDevice COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB), Master SIO, COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB), Configurable via software

IO-Link, Port classDevice A, Master B

IO-Link, Number of portsDevice 1, Master 4

IO-Link, Process data length OUTMaster parameterisable 2 - 32 bytes

IO-Link, Process data length INMaster parameterisable 2 - 32 bytes

IO-Link, Min. cycle timeDevice 3.2 ms, Master 5 ms

IO-Link, Data storage provided2 kB/port

IO-Link, Output current3.5 A / port

IO-Link, connection technologyCage Clamp®, Plug, Master, 5-pin, Device, 3-pin

IO-Link, communicationC/Q LED green, C/Q LED red

IO-Link, ready-to-operate indicatorL+ LED green on, L+ LED green off

Fieldbus interfaceCAN bus

Field bus interface, connection systemPlug, Sub-D, 9-pin

Field bus interface, transmission rate125, 250, 500, 800, 1000 kbit/s, Can be set using software

Field bus interface, electrical isolationYes

USB-interfaceUSB 1.1

Ethernet, plug connectorRJ45

Ethernet, number1

Ethernet, data transmission rate10/100 Mbit/s

Ethernet, supported protocolsOPC-UA, TCP/IP, EasyIP, Modbus TCP

Programming softwareCODESYS V3

Programming languageTo IEC 61131-3, LDR, IL, ST, FBD, AS

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Certificate issuing authorityUL E239998-D1001

Accessories 12

Genuine accessories that can be used with the FESTO CECC-LK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBU-M12G5-E-7.5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-5-Q8N-M12G5	Connecting cable · Connecting cables
NEBU-M12G5-E-10-Q8N-M12G5	Connecting cable · Connecting cables
NECC-L2G2-C1	Plug · Electrical accessories
NECC-L2G4-C1-M	Plug · Electrical accessories
NECC-L2G5-C1	Plug · Electrical accessories
NECC-L2G6-C1	Plug · Electrical accessories
NECC-L2G8-C1	Plug · Electrical accessories
NECC-L2G24-C1	Plug · Electrical accessories
NECC-S1G9-C2-M	Plug · Electrical accessories
