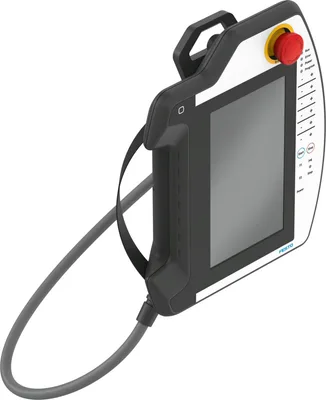

Festo CDSA-D3-RV

Operator unit. For mobile commissioning and optimisation. Integrated reporting system and user administration in combination with the robotics library from Festo. Terminal box for installation in a control cabinet and various cable lengths available. Interfaces for Ethernet, RS-422-A/RS-232-C, USB host/USB client. With colour touchscreen

FestoMFR # CDSA-D3-RVSKU # YLSRHOUI9GED98A

Number of function keys20

Number of system LEDs5

DisplayLCD display, With backlighting

Display characteristicsTouchscreen

Display size7"

Input current<= 5.6 A

Have questions?Chat on WhatsApp

About This Product

Festo CDSA-D3-RV

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Number of function keys20

Number of system LEDs5

DisplayLCD display, With backlighting

Display characteristicsTouchscreen

Display size7"

Operator controlsTouch sensitive keyboard, Enable control unit, Emergency stop button

Input current<= 5.6 A

Operational voltage range DC19.2, 30

Display resolutionWSVGA, 600x1024 pixels

ApprovalCCC, RCM, c UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions

Certificate issuing authorityUL E239998

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 70

Relative air humidity5 - 95%

Degree of protectionIP65

Note on degree of protectionWhen USB cover flap is closed, In mounted state

Protection classIII

Ambient temperature0, 40

Product weight950

Electrical power consumption12

IP address allocationFCT, DHCP

Nominal operating voltage DC24

Power failure bridging10

Nominal altitude of use<= 2000 m NHN

Power supply, functionEnable control, Emergency stop, Power supply

Power supply, connection typeSocket strip

power supply, connection systemSocket strip 12 pin, 2 rows

Power supply, number of pins/wires12

Power supply, assigned pins/wires6

USB interface, connection technologyUSB 2.0 type A

USB interface, plug pattern00995868

Ethernet interface, protocolTCP/IP

Ethernet interface, functionDiagnostics, Network connection to PLC, Parameterisation

Ethernet interface, connection typeSocket

Ethernet interface, connection systemRJ45

Ethernet interface, number of pins/wires8

Ethernet interface, transmission rate100 Mbit/s

Ethernet interface, connection pattern00995789

Note on materialsRoHS compliant

Material housingABS

Dimensions (W x L x H)212 mm x 251 mm x 73 mm

Note on permissible current load at 40°C10 – 1000 mA at each contact for emergency stop, < 500 mA for enable control unit

Utilisation categoryDC-13, emergency stop

Service life characteristic value B10D, subcomponent0.25 million switching cycles, emergency stop, 1 million switching cycles, enable control unit

Accessories 4

Genuine accessories that can be used with the Festo CDSA-D3-RV motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CAFM-D4-W	Retaining bracket · Mounting accessories
NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1	Connecting cable · Connecting cables
NEBC-R3Z12G20-KH-15-N-SBS-RSG17-ET-S1	Connecting cable · Connecting cables
NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1	Connecting cable · Connecting cables
