How can I get a price quote for Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1?

You can request a fast quote for Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1 from Yılsa Engineering. Reference part number YLST2JAORKFAQ2A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

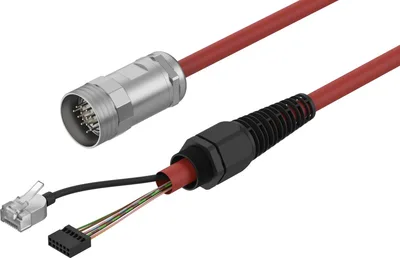

Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1

Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232

FestoMFR # NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1SKU # YLST2JAORKFAQ2A

Cable designationWithout inscription label holder

Product weight1300

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typePlug and socket strip

Electrical connection 1, cable outletStraight

Have questions?Chat on WhatsApp

About This Product

Festo NEBC-R3Z12G20-KH-10-N-SBS-RSG17-ET-S1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cable designationWithout inscription label holder

Product weight1300

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typePlug and socket strip

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemRJ45 and socket strip 12 pins, 2 rows

Electrical connection 1, number of connections/cores20

Electrical connection 1, used connections/cores14

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00997347

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typeHybrid plug

Electrical connection 2, cable outletStraight

Electrical connection 2, number of connections/cores17

Electrical connection 2, used connections/cores14

electrical connection 2, type of mountingThreaded

Electrical connection 2, connection pattern00997346

Operational voltage range DC0, 24

Nominal operating voltage DC24

Current rating at 40° C11.7

Immunity to surge6

ShieldingNo

Cable length10

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, fixed cable130

Bending radius, moving cable130

Cable diameter8

Cable diameter tolerance± 1 mm

Cable structure4 x (1 x 0.128 mm²) + 10 x 0.128 mm²

Nominal cross section conductor0.128

Degree of protectionIP65

Note on degree of protectionIn mounted state

Ambient temperature0, 40

Ambient temperature with moving cable0, 40

Storage temperature-20, 70

CE mark (see declaration of conformity)To EU Low Voltage Directive

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC0 - No corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourRed

Material insulating sheathPP
