How can I get a price quote for Festo ADN-S-6-5-A?

You can request a fast quote for Festo ADN-S-6-5-A from Yılsa Engineering. Reference part number YLSFPIZNTW1PCOB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ADN-S-6-5-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ADN-S-6-5-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ADN-S-6-5-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

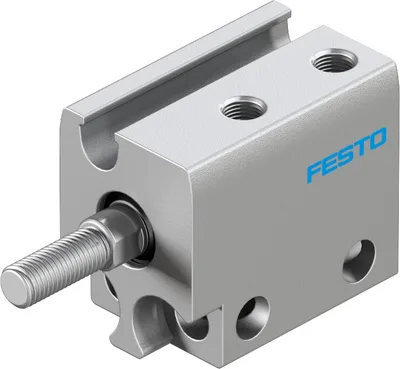

Festo ADN-S-6-5-A

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. Piston rod with female or male thread. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # ADN-S-6-5-ASKU # YLSFPIZNTW1PCOB

Stroke5

Piston diameter6 mm

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo ADN-S-6-5-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke5

Piston diameter6 mm

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

Piston-rod endMale thread

DesignPiston, Piston rod

Symbol00991215

VariantsPiston rod at one end

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature-10, 60

Impact energy in end positions0.006

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke9.4

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17

Moving mass1.5

Product weight9.2

Type of mountingWith through-hole

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material dynamic sealsNBR, TPE-U(PU)

Material housinganodised

Material piston rodHigh-alloy stainless steel

Accessories 29

Genuine accessories that can be used with the Festo ADN-S-6-5-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-3X0,5-BL	Plastic tubing · Tubes
GRLA-M3-QS-3	One-way flow control valve · Function fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
QSM-M3-3	Push-in fitting · Fittings
QSM-M3-3-I	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3	Throttle valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
GRLZ-M3-QS-3	One-way flow control valve · Function fittings
