How can I get a price quote for Enerpac ZW3008GI-11?

You can request a fast quote for Enerpac ZW3008GI-11 from Yılsa Engineering. Reference part number YLSTWKB28AMJJNH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZW3008GI-11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZW3008GI-11 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZW3008GI-11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

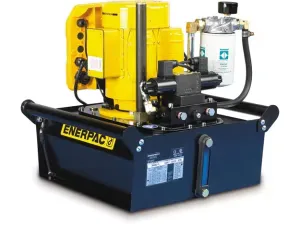

Enerpac ZW3008GI-11 350 bar Electric Pump

Enerpac ZW3008GI-11; 350 bar (5,000 psi), 40 in³/min flow, 230 V, electric hydraulic workholding pump with D03 valve mounting.

EnerpacMFR # ZW3008GI-11SKU # YLSTWKB28AMJJNH

Maximum Operating Pressure Range350 bar (5,000 psi)

Output Flow Rate (210 bar)0,54 l/min

Motor Phases1 Ph

Dimension C168 mm (8.1 in)

Motor Electrical Specification230 V, 1 Ph, 50/60 Hz

Maximum Operating Pressure350 bar (5,000 psi)

Have questions?Chat on WhatsApp

About This Product

ZW3008GI-11 is a single-station electric hydraulic workholding pump with D03 valve mounting, part of the Workholding Tools line. Maximum operating pressure is 350 bar (5,000 psi) with a nominal flow of 40 in³/min. The motor is 208–240 V (230 V), 1 phase, 50/60 Hz, 1 hp. Usable oil capacity is 2 gal (462 in³), height is 574 mm and sound level is 75 dBA. The relief valve adjustment range is 70–350 bar. It works with electric or manual valves and is intended for workholding and fixture applications.

Features and Benefits

Industry-standard mounting for electric or manual valves
Highly efficient design: increased flow, reduced heat generation and lower power consumption
Wide accessory range including heat exchanger, roll-bars, pressure transducer, level and temperature switches
Replaceable piston check valves extend the service life of major pump components
Optional backlit LCD shows pump usage, hour and cycle counts
2-station and 4-station manifold options available

Enerpac ZW3008GI-11

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range350 bar (5,000 psi)

Output Flow Rate (210 bar)0,54 l/min

Motor Phases1 Ph

Maximum Flow at Rated Pressure0.54 l/min (40 in3/min · 0,54 l/min · 40 in³/min)

Dimension C168 mm (8.1 in)

Motor Electrical Specification230 V, 1 Ph, 50/60 Hz

Maximum Operating Pressure350 bar (5,000 psi)

Output Flow Rate @ 50 bar2,68 l/min

Air Pressure Range1,000 - 5,000 psi

Output Flow Rate at 7 bar2,80 in³/min

Dimension B287 mm (11 in)

Motor Voltage208-240 V V

Usable Oil Capacity8 l (2 gal)

Relief Valve Adjustment Range70 - 350 bar

Dimension H574 mm (22.6 in)

Motor Frequency50/60 Hz Hz

Product TypeElectric Pump - Single Station D03

Reservoir Capacity8000 cm³ (462 in³)

Sound Level75 dB(A)

Output Flow Rate @ 7 bar2,80 l/min

Motor Size1 hp

SeriesZW

Pump Power SourceElectric

Output Flow Rate (115 bar)2,32 l/min

Flow Rate Range at Rated Pressure0,35 - 0,64 l/min (40 - 59 in³/min)

Output Flow Rate (5000 psi)40 in³/min

Dimension A206 mm (8.1 in)

Product LineWorkholding Tools

Weight52 kg (115 lbs)

Output Flow Rate @ 350 bar0,54 l/min

Output Flow Rate at 50 bar2,68 in³/min

Output Flow Rate at 350 bar0,54 in³/min
