Enerpac ZHEE10 Heat Exchanger

Enerpac ZHEE10; heat exchanger for 2.5, 5 and 10 gallon ZE-Series pumps, 26.5 l/min (7 gpm) maximum oil flow, 4.1 kg.

EnerpacMFR # ZHEE10SKU # YLS4FLSV0DUHGUC

Country of OriginUnited States

Maximum Oil Flow26,5 l/min (7 gpm)

Switch Point Repeatability+ /-0,5% %

Product TypeHeat Exchanger

Maximum Operating Pressure300 psi

Compatible Pump SeriesZE

Have questions?Chat on WhatsApp

About This Product

The ZHEE10 is a heat exchanger for 2.5, 5 and 10 gallon ZE-Series pumps. It removes heat from the bypass oil so the pump runs cooler. Maximum oil flow is 26.5 l/min (7 gpm), maximum operating pressure is 20.7 bar (300 psi), and weight is 4.1 kg. It stabilizes oil temperature at a maximum of 54 °C (130 °F) at 21 °C (70 °F) ambient. Maximum flow and pressure ratings must not be exceeded. It is not suitable for water-glycol or high water based fluids.

Features and Benefits

Removes heat from bypass oil for cooler operation
Stabilizes oil viscosity, increasing oil life and reducing wear
Extends system life
Holds oil at a maximum of 54 °C at 21 °C ambient
Not suitable for water-glycol or high water based fluids

Enerpac ZHEE10

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Maximum Oil Flow26,5 l/min (7 gpm)

Switch Point Repeatability+ /-0,5% %

Product TypeHeat Exchanger

Maximum Operating Pressure300 psi

Compatible Pump SeriesZE

Product LineIndustrial Tools, Workholding Tools

Weight4,1 kg (9 lbs)

Deadband3.50 bar

Documents & CAD

For this product 1

Repair Parts SheetHeat Exchanger KitPDF·396 KB·English

Series documents 1· shared by this product series

BrochureZE-Series Electric Pumps; EnglishPDF·929 KB

Alternative Names & Search Terms

ZHEE10ZHEE-10ZHE-E10ZHEE 10Enerpac ZHEE10Enerpac ZHEE-10Enerpac ZHE-E10ZHEE10 heat exchangerZHEE10 pump accessoryEnerpac ZE seriesZE series pump heat exchanger10 gallon ZE pump heat exchanger2.5 gallon ZE pump heat exchangerhydraulic pump heat exchangerhydraulic oil coolerEnerpac heat exchangerbypass oil heat exchanger

Cookie Notice

Enerpac ZHEE10 Heat Exchanger

About This Product

Features and Benefits

Enerpac ZHEE10

Specifications

Documents & CAD

For this product 1

Series documents 1· shared by this product series

Related Products

Enerpac ZE6210XJ-S 700 bar Electric Pump

Enerpac ZE6210XG-S 700 bar Electric Pump

Enerpac GX314 700 bar Electric Hydraulic Pump

Enerpac GX313 700 bar Electric Hydraulic Pump

Enerpac GX124 700 bar Electric Hydraulic Pump

Enerpac GX123 700 bar Electric Hydraulic Pump

Enerpac GX114 700 bar Electric Hydraulic Pump

Enerpac GX113 700 bar Electric Hydraulic Pump

Enerpac SFP837MD 8-Outlet Diesel Pump

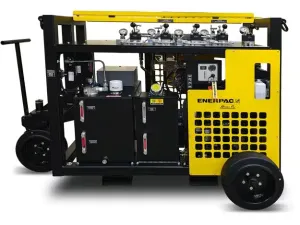

Enerpac SFP634MD 6-Outlet Diesel Pump
