How can I get a price quote for Enerpac ZE3310SW?

You can request a fast quote for Enerpac ZE3310SW from Yılsa Engineering. Reference part number YLSR0K0LY8CMPL3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZE3310SW in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZE3310SW genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZE3310SW?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac ZE3310SW 700 bar Electric Hydraulic Pump

Enerpac ZE3310SW; 700 bar, 0.55 l/min at 700 bar, 10 litre usable oil, 3/3 solenoid valve electric hydraulic pump with LCD, 380-415 V.

EnerpacMFR # ZE3310SWSKU # YLSR0K0LY8CMPL3

Motor Phases3 Ph

Dimension F371 mm

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar5,26 l/min

Output Flow Rate at 7 bar6,15 in³/min

Dimension E384 mm

Have questions?Chat on WhatsApp

About This Product

The ZE3310SW belongs to the Enerpac ZE series of high-flow electric hydraulic pumps. It comes with a 3/3 solenoid valve (VE33, 24 VDC), an electric box and an LCD. Maximum operating pressure is 700 bar, with 0.55 l/min flow at 700 bar and 5.26 l/min output at 50 bar. The pump is driven by a 0.75 kW, 3-phase, 380-415 V, 50/60 Hz motor. Usable oil volume is 10 litres (reservoir 10000 cm³). The relief valve is adjustable from 70 to 700 bar. Sound level is 75 dBA and weight is 58 kg. It is compatible with single-acting cylinders and, with its extended duty cycle, is used in workshop and production applications.

Features and Benefits

High-efficiency pump design with higher oil flow and by-pass pressure
Electrical control via 3/3 solenoid valve (24 VDC)
Back-lit LCD with self-test, diagnostics and read-out
High-strength moulded electrical box, IP54 protection
Totally enclosed, fan-cooled industrial electric motor
User-adjustable built-in relief valve, 70-700 bar

Enerpac ZE3310SW

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor Phases3 Ph

Dimension F371 mm

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar5,26 l/min

Output Flow Rate at 7 bar6,15 in³/min

Dimension E384 mm

Motor Voltage380-415 V V

Dimension D305 mm

Relief Valve Adjustment Range70 - 700 bar

Motor Frequency50/60 Hz Hz

Maximum Operating Pressure Range700 bar

Product TypeElectric Pump - High Flow

Duty CycleExtended

Maximum Flow at Rated Pressure0.55 l/min (0,55 l/min)

Dimension H600 mm

Sound Level75 dB(A)

Output Flow Rate at 700 bar0,55 in³/min

Valve OperationSolenoid

Output Flow Rate @ 7 bar6,15 l/min

SeriesZE

Motor Size0,75 kW

Output Flow Rate @ 700 bar0,55 l/min

Cylinder CompatibilitySingle-acting

Solenoid Valve Voltage24 VDC

Valve ModelVE33

Product LineIndustrial Tools

Flow Rate Range at Rated Pressure0,35 - 0,64 l/min

Weight58 kg

Reservoir Capacity10000 cm³

Dimension C419 mm

Dimension B158 mm

Dimension A533 mm

Output Flow Rate @ 350 bar0,57 l/min

Output Flow Rate at 50 bar5,26 in³/min

Output Flow Rate at 350 bar0,57 in³/min

Usable Oil Capacity10,0 l

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·6.2 MB

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·5.0 MB 4 languages· in one file

Repair Parts SheetZE/ZW Electric PumpPDF·1.8 MB 4 languages· in one file

BrochureZE-Series Electric Pumps; EnglishPDF·929 KB

Alternative Names & Search Terms

ZE3310SWZE3310-SWZE 3310 SWZE3310 SWze3310swEnerpac ZE3310SWEnerpac ZE3310-SWZE3310SW electric hydraulic pumpZE3310SW pumpEnerpac ZE seriesEnerpac ZE3 seriesEnerpac Z-Class electric pump700 bar electric hydraulic pump380-415V electric hydraulic pumpsolenoid valve electric hydraulic pump10 litre hydraulic pumpelectric pump for single-acting cylinders0.75 kW electric hydraulic pumpelectric hydraulic pump with LCD3/3 solenoid valve hydraulic pumphigh flow electric hydraulic pump

Cookie Notice

Enerpac ZE3310SW 700 bar Electric Hydraulic Pump

About This Product

Features and Benefits

Enerpac ZE3310SW

Specifications

Documents & CAD

Series documents 4· shared by this product series

Related Products

Enerpac ZPF 25 Micron Return Line Filter

Enerpac ZHEE10 Heat Exchanger

Enerpac ZLSU4 Level/Temp Switch

Enerpac ZPTU4 70–700 bar Pressure Transducer

Enerpac ZPSE3 35–700 bar Mechanical Pressure Switch

Enerpac ZRB10 Roll Cage

Enerpac ZCF2 Pump Foot Switch

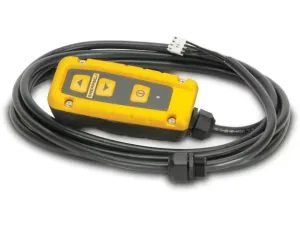

Enerpac ZCP3 Pendant Hand Control
