How can I get a price quote for Enerpac ZE3120DW?

You can request a fast quote for Enerpac ZE3120DW from Yılsa Engineering. Reference part number YLS33AC1111IKL8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZE3120DW in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZE3120DW genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZE3120DW?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac ZE3120DW 700 bar Electric Pump

Enerpac ZE3120DW; 700 bar, 0.75 kW 380-415 V 3-phase motor, 20 L usable oil, electric hydraulic pump with 3/2 solenoid dump valve and LCD for single-acting cylinders.

EnerpacMFR # ZE3120DWSKU # YLS33AC1111IKL8

Country of OriginUnited States

Motor Phases3 Ph

Dimension F488 mm

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar5,26 l/min

Output Flow Rate at 7 bar6,15 in³/min

Have questions?Chat on WhatsApp

About This Product

The ZE3120DW is a high-flow electric hydraulic pump from the Enerpac ZE3 series. It uses a 0.75 kW induction motor on 380-415 V, 3 phase, 50/60 Hz. Maximum operating pressure is 700 bar, and the relief valve is adjustable from 70 to 700 bar. The pump is fitted with a VE32D 3/2 solenoid dump valve (24 VDC coil), an electric box and an LCD, and is compatible with single-acting cylinders. It delivers 0.55 L/min at 700 bar, 5.26 L/min at 50 bar and 6.15 L/min at 7 bar. Usable oil is 20 L (20,000 cm³ reservoir), weight is 65 kg, height is 625 mm and sound level is 75 dBA. The Z-Class pump design suits continuous use in manufacturing and workshop environments.

Features and Benefits

High-efficiency pump design with higher oil flow and by-pass pressure
20 L usable oil capacity
High-strength moulded electrical box; IP54 protection
Back-lit LCD with self-test and diagnostic functions
User-adjustable built-in relief valve; full sight oil level glass

Enerpac ZE3120DW

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Motor Phases3 Ph

Dimension F488 mm

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar5,26 l/min

Output Flow Rate at 7 bar6,15 in³/min

Dimension E501 mm

Motor Voltage380-415 V V

Dimension D422 mm

Relief Valve Adjustment Range70 - 700 bar

Motor Frequency50/60 Hz Hz

Maximum Operating Pressure Range700 bar

Product TypeElectric Pump - High Flow

Duty CycleExtended

Maximum Flow at Rated Pressure0.55 l/min (0,55 l/min)

Dimension H625 mm

Sound Level75 dB(A)

Output Flow Rate at 700 bar0,55 in³/min

Valve OperationSolenoid

Output Flow Rate @ 7 bar6,15 l/min

SeriesZE

Motor Size0,75 kW

Output Flow Rate @ 700 bar0,55 l/min

Cylinder CompatibilitySingle-acting

Solenoid Valve Voltage24 VDC

Valve ModelVE32D

Product LineIndustrial Tools

Flow Rate Range at Rated Pressure0,35 - 0,64 l/min

Weight65 kg

Reservoir Capacity20000 cm³

Dimension C419 mm

Dimension B180 mm

Dimension A558 mm

Output Flow Rate @ 350 bar0,57 l/min

Output Flow Rate at 50 bar5,26 in³/min

Output Flow Rate at 350 bar0,57 in³/min

Usable Oil Capacity20,0 l

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·6.2 MB

Instruction ManualZE3-6 Series and ZW4-5 Series Pumps Instruction SheetPDF·5.0 MB 4 languages· in one file

Repair Parts SheetZE/ZW Electric PumpPDF·1.8 MB 4 languages· in one file

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZE-Series Electric Pumps; EnglishPDF·929 KB

Alternative Names & Search Terms

ZE3120DWZE3120 DWZE-3120-DWZE 3120DWZE3120-DWEnerpac ZE3120DWZE3120DW electric hydraulic pumpZE3120DW pumpEnerpac ZE3 seriesEnerpac ZE seriesEnerpac Z-Class electric pumpZE3 electric hydraulic pump700 bar electric hydraulic pump380-415V electric hydraulic pump3-phase electric hydraulic pump0.75 kW electric hydraulic pumpsolenoid valve hydraulic pumpelectric pump for single-acting cylindershydraulic pump with LCD20 litre usable oil hydraulic pump

Cookie Notice

Enerpac ZE3120DW 700 bar Electric Pump

About This Product

Features and Benefits

Enerpac ZE3120DW

Specifications

Documents & CAD

Series documents 6· shared by this product series

Related Products

Enerpac ZPF 25 Micron Return Line Filter

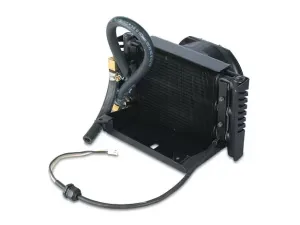

Enerpac ZHEE10 Heat Exchanger

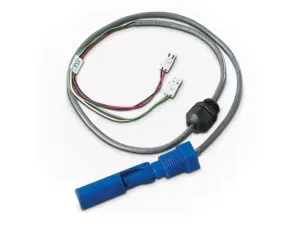

Enerpac ZLSU4 Level/Temp Switch

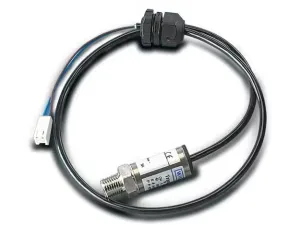

Enerpac ZPTU4 70–700 bar Pressure Transducer

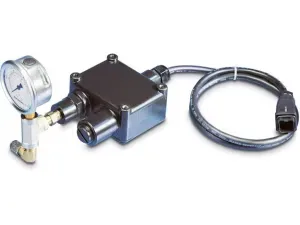

Enerpac ZPSE3 35–700 bar Mechanical Pressure Switch

Enerpac ZRB20 Roll Cage

Enerpac ZCF2 Pump Foot Switch

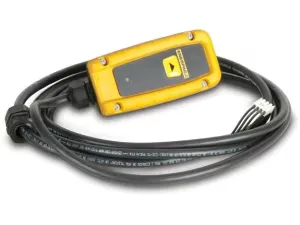

Enerpac ZCP1 Pendant Hand Control
