How can I get a price quote for Enerpac WR5?

You can request a fast quote for Enerpac WR5 from Yılsa Engineering. Reference part number CEY-937FC77DE050. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac WR5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac WR5 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac WR5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

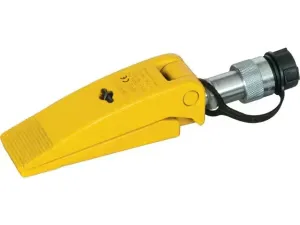

Enerpac WR5 1 ton Hydraulic Spreader

Enerpac WR5; 1 ton (8.9 kN) spreading force, 94 mm maximum spread, 12.8 mm tip clearance, 700 bar hydraulic wedgie and spread cylinder.

EnerpacMFR # WR5SKU # CEY-937FC77DE050

Country of OriginNetherlands

Spreader Power SourceHydraulic

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsSpread

Max. Spreading Force8,9 kN

Tip Clearance12,8 mm (0.50 in)

Have questions?Chat on WhatsApp

About This Product

WR5 is a compact hydraulic wedgie and spread cylinder (spreader) from the WR series. It applies 1 ton (8.9 kN) of spreading force, opens up to 94 mm (3.7 in) and has a minimum tip clearance of 12.8 mm (0.50 in). It is single-acting and retracts with a spring return system. Maximum operating pressure is listed as 700 bar (10,000 psi); as the maximum load capacity is 1 ton (8.9 kN), system pressure must be limited to 350 bar (5,000 psi). Effective area is 6.5 cm² and weight is 2.3 kg. It is used for low clearance spreading and separating in tight spaces.

Features and Benefits

1 ton (8.9 kN) spreading force
12.8 mm (0.50 in) minimum tip clearance for low clearance jobs
94 mm (3.7 in) maximum spread
Single-acting with spring return
Compact body, approx. 2.3 kg weight

Enerpac WR5

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginNetherlands

Spreader Power SourceHydraulic

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsSpread

Max. Spreading Force8,9 kN

Tip Clearance12,8 mm (0.50 in)

Product TypeHydraulic Spreader

SeriesWR

Cylinder Effective Area6,5 cm²

Maximum Spreading Force1 ton (1.00 ton)

Capacity1 ton

Stroke8.9 mm

Product LineIndustrial Tools, Bolting Tools

Weight2,3 kg (5 lbs)

Maximum Spread94 mm

Max. Spread3.7 in

Documents & CAD

For this product 2

Repair Parts SheetParts Kits (Europe Only)PDF·173 KB·English

2D DrawingWR5 drawingPDF·692 KB

Series documents 4· shared by this product series

Instruction ManualSpread CylindersPDF·1.1 MB·English

Repair Parts SheetWedgiePDF·116 KB·English

CertificateEC2B-SPREADER_RevN_Oct2022PDF·427 KB

BrochureA-WR-Series Wedgie Spread Cylinders; EnglishPDF·256 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

WR5WR-5WR 5Enerpac WR5Enerpac WR-5WR5 spreaderWR5 hydraulic wedgieEnerpac WR serieshydraulic wedgiehydraulic spread cylinderhydraulic wedge spreader1 ton hydraulic spreader8.9 kN hydraulic spreader3.7 in maximum spread spreadercompact hydraulic wedge spreaderlow clearance hydraulic spreader94 mm spread hydraulic spreader
