How can I get a price quote for Enerpac W2203X?

You can request a fast quote for Enerpac W2203X from Yılsa Engineering. Reference part number CEY-7B4B2D99497D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac W2203X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac W2203X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac W2203X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

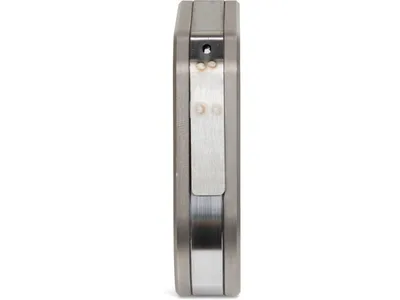

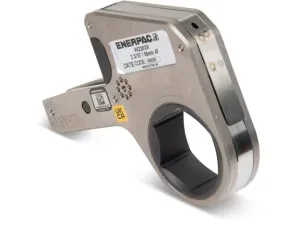

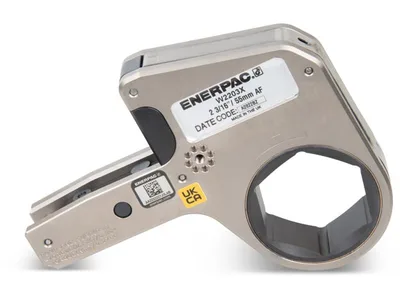

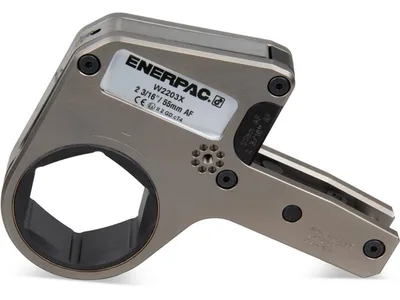

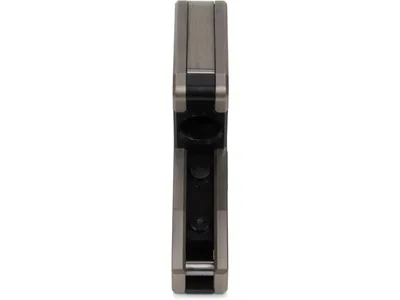

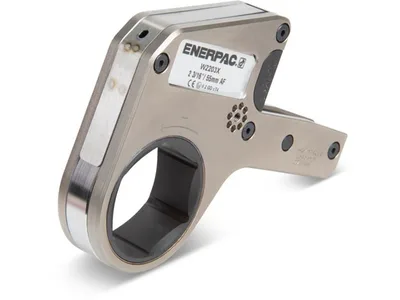

Enerpac W2203X 55 mm Torque Wrench Cassette

Enerpac W2203X; 55 mm (2 3/16 in) hexagon, 2766 Nm maximum torque, 2.3 kg, W2000X torque wrench cassette.

EnerpacMFR # W2203XSKU # CEY-7B4B2D99497D

Dimension G68,6 mm (2.7 in)

Country of OriginUnited Kingdom

Dimension F20 mm (0.79 in)

Dimension D32 mm (1.26 in)

Dimension C148 mm (5.83 in)

Maximum Torque Output2766 Nm (2040 ft-lbs)

Have questions?Chat on WhatsApp

About This Product

W2203X is a W-series low profile hexagon cassette with a 55 mm (2 3/16 in) hexagon size for the W2000X torque wrench. Together with a compatible drive unit it enables bolting in tight spaces. Maximum torque output is 2766 Nm (2040 ft·lb) and weight is 2.3 kg. Dimensions: A 109 mm, B 141 mm, C 148 mm, nose radius H 41.8 mm. Its country of origin is the United Kingdom. The cassette is made of steel. Fast release in the drive unit allows tool-free, pin-free cassette exchange. W-series X-edition cassettes are CE - ATEX declared and shipped with a calibration certificate.

Features and Benefits

55 mm (2 3/16 in) hexagon size for W2000X
2766 Nm (2040 ft·lb) maximum torque output
Low profile design suited to tight access bolting
CE - ATEX declared, supplied with calibration certificate
Tool-free, pin-free fast cassette exchange
Optimum nose radius balances strength and size in restricted clearance

Enerpac W2203X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G68,6 mm (2.7 in)

Country of OriginUnited Kingdom

Dimension F20 mm (0.79 in)

Dimension D32 mm (1.26 in)

Dimension C148 mm (5.83 in)

Maximum Torque Output2766 Nm (2040 ft-lbs)

Dimension E24 mm

Dimension B141 mm (5.55 in)

ApplicationsTorque

Nose Radius (H)41,8 mm (1.65 in)

Product TypeCassette - Imperial or Metric

AF Size2 3/16 in

SeriesW - Cassette

Model Type2 3/16 in. / 55 mm for W2000X

Hexagon Size (S)2 3/16 in

Dimension A109 mm (4.29 in)

Product LineBolting Tools

Weight2,3 kg (4.64 lbs)

Hexagon Size S55 mm

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Repair Parts SheetTorque Wrench, Hydraulic, W2000X SeriesPDF·855 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 10

3D Model

2D Drawing
