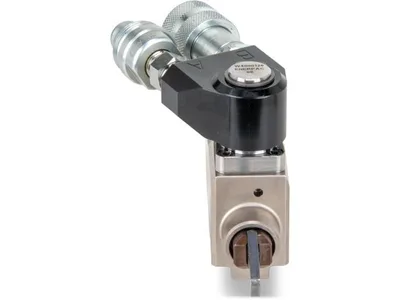

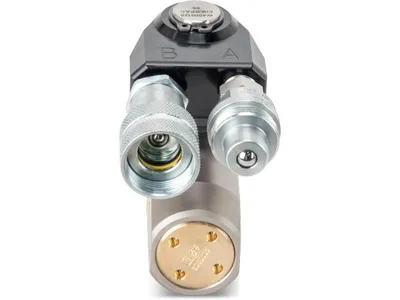

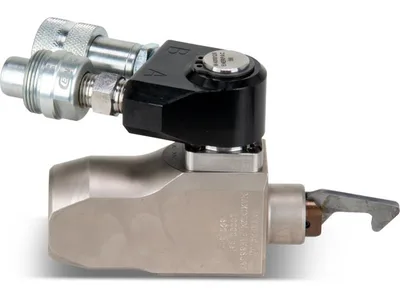

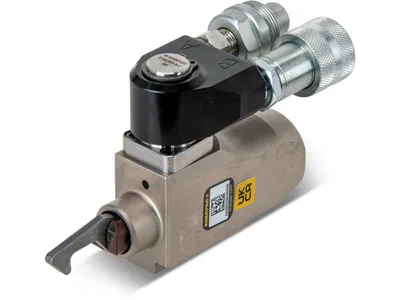

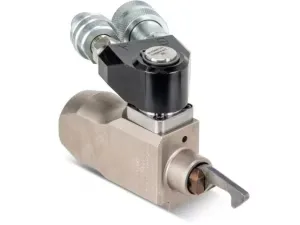

Enerpac W2000X 2766 Nm Low Profile Torque Wrench

Enerpac W2000X; 2766 Nm (2040 ft.lbs) maximum torque, 30 - 60 mm hexagon range, low profile hydraulic torque wrench drive unit.

EnerpacMFR # W2000XSKU # CEY-937FC77D45FE

Country of OriginUnited Kingdom

Hexagon Range30 - 60 mm (1 1/16 - 2 3/8 in)

Maximum Torque Output2766 Nm (2040 ft-lbs)

Dimension E24 mm

Minimum Torque Rated At1000 psi 69 bar

ApplicationsTorque

Have questions?Chat on WhatsApp

About This Product

W2000X is a W series low profile hydraulic torque wrench drive unit. Maximum torque output is 2766 Nm (2040 ft.lbs) with a hexagon range of 30 - 60 mm (1 1/16 - 2 3/8 in.). The set includes the SWH6A swivel. Minimum torque is 276 Nm (204 ft.lbs) at 69 bar (1000 psi), and nominal torque is rated at 690 bar (10000 psi). The weight is 1.4 kg. Used with interchangeable cassettes, the drive unit suits applications where clearance around the nut is restricted. W series drive units and cassettes offer ATEX certification for potentially explosive environments.

Features and Benefits

2766 Nm (2040 ft.lbs) maximum torque output
Strength-to-size ratio for hard-to-reach applications
30° rotation angle and rapid return stroke
Tough manifold design with added operator safety feature
Fast cassette exchange without tools
Easy disassembly for maintenance without special tools

Enerpac W2000X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited Kingdom

Hexagon Range30 - 60 mm (1 1/16 - 2 3/8 in)

Maximum Torque Output2766 Nm (2040 ft-lbs)

Dimension E24 mm

Minimum Torque Rated At1000 psi 69 bar

ApplicationsTorque

Dimension D32 mm

Product TypeLow Profile Drive Unit

SeriesW - Drive Unit

Minimum Torque276 Nm (204 ft-lbs)

Model Type1 1/16 - 2 3/8" Hex 2040 Ft.Lbs. Torque

Dimension A109 mm (4.29 in)

Product LineBolting Tools

Nominal Torque Rated At10000 psi 690 bar

Weight1,4 kg (3.04 lbs)

Dimension C148 mm

Dimension B141 mm

Set IncludesSWH6A

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualW-Series Hydraulic Torque Wrench, W2000X, W4000X, W8000X, W15000XPDF·3.9 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

Repair Parts SheetTorque Wrench, Hydraulic, W2000X SeriesPDF·855 KB·English

BrochureW-Series Hexagon Torque Wrenches; EnglishPDF·1.7 MB

CAD Files 17

3D Model

2D Drawing
