How can I get a price quote for Enerpac SWi2025TEMAXEX?

You can request a fast quote for Enerpac SWi2025TEMAXEX from Yılsa Engineering. Reference part number CEY-55221B12D938. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SWi2025TEMAXEX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SWi2025TEMAXEX genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SWi2025TEMAXEX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

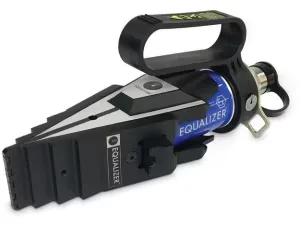

Enerpac SWi2025TEMAXEX 240 kN ATEX Flange Spreader Maxi Set

Enerpac SWi2025TEMAXEX; ATEX certified twin-wedge hydraulic flange spreader Maxi set with hand pump, 240 kN (26.9 ton) capacity and 103.5 mm spread.

EnerpacMFR # SWi2025TEMAXEXSKU # CEY-55221B12D938

Spreader Model TypeTwin Wedge and Pump Set

Tip Clearance6 mm (0.24 in)

Maximum Spread103,5 mm

Spreader Power SourceExternal Hydraulic

Capacity240 kN (24 ton · 27 ton)

Certification StatusAtex certified

Have questions?Chat on WhatsApp

About This Product

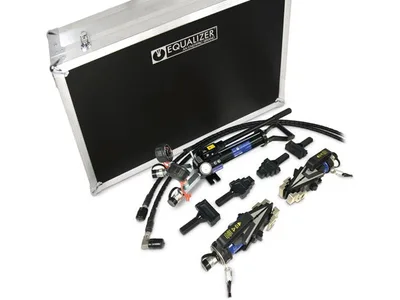

SWi2025TEMAXEX is an ATEX certified external hydraulic flange spreader Maxi set from the Enerpac SWi series in the Bolting Tools line. Using two spreaders together provides even and controlled flange separation; each spreader has 240 kN (26.9 ton) capacity. Maximum spread is 103.5 mm (4.1 in), tip clearance is 6 mm and set weight is 38.8 kg. Hazardous area marking: II 2G ck IIB T6 / II 2D ck T85 °C. The set includes 2 x SWi20/25TEEX wedgeheads, 2 x 700 bar (10,000 psi) hydraulic cylinders, 2 x 700 bar ATEX hoses of 2 m with 90 degree elbow, an HP550DMINEX sealed hand pump with gauges, safety blocks, stepped blocks, hex keys, safety lanyards, an instruction manual and a 930 x 600 x 180 mm carry case. It is used in specific areas with explosive atmospheres for jobs that call for simultaneous flange separation at two points.

Features and Benefits

ATEX certified: II 2G ck IIB T6 / II 2D ck T85 °C
Two 240 kN (26.9 ton) spreaders for even, controlled separation
Includes 2 x 700 bar cylinders, 2 x 2 m ATEX hoses and HP550DMINEX sealed hand pump with gauges
6 mm tip clearance, 103.5 mm maximum spread
Safety blocks, stepped blocks and safety lanyards for each spreader
Instruction manual and carry case included

Enerpac SWi2025TEMAXEX

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Spreader Model TypeTwin Wedge and Pump Set

Tip Clearance6 mm (0.24 in)

Maximum Spread103,5 mm

Spreader Power SourceExternal Hydraulic

Capacity240 kN (24 ton · 27 ton)

Certification StatusAtex certified

Weight38,8 kg (85.5 lbs)

Country of OriginUnited Kingdom

Case Dimensions930 x 600 x 180 mm (36.6 x 23.6 x 7.1 in)

Maximum Operating Pressure700 bar (10,000 psi)

Set TypeMax set

ApplicationsSpread

Product TypeFlange Spreader Set - Wedges

SeriesSWi

Model Type26.9 Ton, External Hydraulic Power Source, Atex certified, Twin Wedge and Pump Set

Jaw Width60,0 mm (2.36 in)

Product LineBolting Tools

Max. Spread4.1 in

Set IncludesHP550DMINEX

Documents & CAD

For this product 1

Instruction ManualIM_SWi_EX_Rev14.pdfPDF·4.4 MB

Series documents 1· shared by this product series

BrochureSWi-Series Flange Spreading Wedges; EnglishPDF·1.1 MB
