How can I get a price quote for Enerpac SP5000?

You can request a fast quote for Enerpac SP5000 from Yılsa Engineering. Reference part number CEY-55221B119F15. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SP5000 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SP5000 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SP5000?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

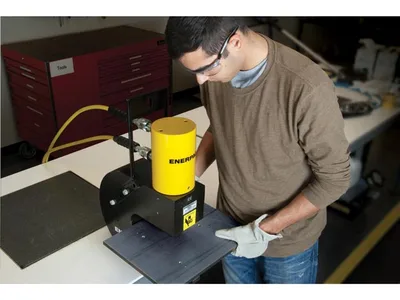

Enerpac SP5000 50 Ton Hydraulic Punch

Enerpac SP5000; 50 ton (490 kN), 700 bar double-acting hydraulic punch with standard die set and 115V electric pump included.

EnerpacMFR # SP5000SKU # CEY-55221B119F15

Oil Capacity (Advance)278 cm³ (17 in³)

Country of OriginUnited States

Cylinder Return TypeDouble-Acting, Hydraulic Return

Length362,0 mm (14.25 in)

Hole ShapeCircle

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The SP5000 is a complete set with the SP50 hydraulic punch delivering 50 tons (490 kN) of force, a standard round die set and a 115V electric pump. The set includes SP50, ZE4410SB-N, HC7206, SP150, SP170, SP190, SP121, SP123 and a CR400 coupler. The double-acting, hydraulic-return cylinder design provides repeatable, fast cycle times. Maximum operating pressure is 700 bar (10,000 psi) and mild steel up to 14.2 mm (0.56") thick can be punched. Material thickness should not exceed the hole diameter. Square and oblong dies are ordered separately. Advance oil capacity is 278 cm³ and retract is 229 cm³. Dimensions are 362 x 170.9 x 533.4 mm and weight is 174 kg. Punch and die changeover tools are included, and a steel case keeps the components together.

Features and Benefits

50 ton (490 kN) force, 700 bar (10,000 psi) maximum pressure
Punches mild steel up to 14.2 mm (0.56") thick
Double-acting cylinder for repeatable and fast cycle times
115V electric hydraulic pump included in the set
Punch and die changeover tools and CR400 coupler included
Square and oblong dies available separately

Enerpac SP5000

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)278 cm³ (17 in³)

Country of OriginUnited States

Cylinder Return TypeDouble-Acting, Hydraulic Return

Length362,0 mm (14.25 in)

Hole ShapeCircle

Model Type50 Ton Punch and Die Set with Electric Pump 115V

Maximum Operating Pressure700 bar (10,000 psi)

Capacity490 kN (50 ton)

ApplicationsPunch

Product LineIndustrial Tools

Height533,4 mm (21.00 in)

Weight174 kg (384 lbs)

Oil Capacity (Retract)229 cm³

Product TypePunch with Pump and Die Set

Retract Oil Capacity14 in³

Width170,9 mm (6.73 in)

Pump Power SourceElectric Pump 115V

SeriesSP

Set IncludesSP50,ZE4410SB-N,HC7206,SP150,SP170,SP190,SP121,SP123,CR400

Documents & CAD

For this product 2

Instruction ManualPunch SetPDF·1.8 MB·English

Repair Parts SheetPunch SetPDF·228 KB·English
