How can I get a price quote for Enerpac SE18?

You can request a fast quote for Enerpac SE18 from Yılsa Engineering. Reference part number CEY-55221B11D546. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SE18 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SE18 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SE18?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

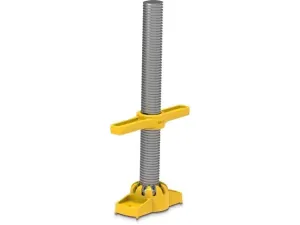

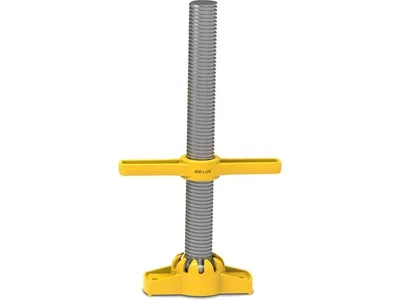

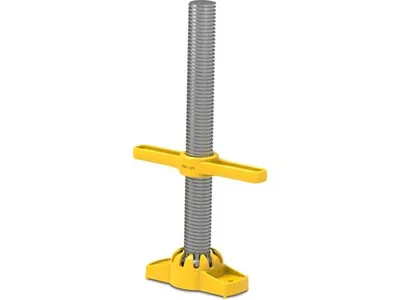

Simplex SE18 254 mm Trench Brace

Enerpac Simplex SE18; 254 mm (10 in) adjust range, 50.8 mm (2 in) pipe size, screw end mechanical trench brace.

EnerpacMFR # SE18SKU # CEY-55221B11D546

Dimension G20,6 mm (0.81 in)

Minimum Pipe Length457,2 mm

Dimension E68,1 mm (2.68 in)

Pipe Size50,8 mm (2 in)

Height76,2 mm (3.00 in)

Country of OriginChina

Have questions?Chat on WhatsApp

About This Product

SE18 is a screw end trench brace from the Simplex SE series. It provides efficient, economical protection against cave-ins and costly re-digging in construction and maintenance work. It extends by turning the lever nut handle. Adjust range is 254 mm (10 in), pipe size 50.8 mm (2 in), minimum pipe length 457.2 mm and screw outside diameter 47.5 mm. Base size is 190.5 x 69.9 mm and height is 76.2 mm. The power source is mechanical. Ball socket joints tilt on angular mounting, and holes at each end allow mounting to wood members. The design is CE compliant and meets or exceeds ANSI/ASME B30.1 standards.

Features and Benefits

Efficient, economical protection against cave-ins and costly re-digging
254 mm (10 in) adjust range, 50.8 mm (2 in) pipe size
Ball socket joints tilt for added safety on angular mounting
Holes on each end facilitate mounting to wood members
CE compliant; meets or exceeds ANSI/ASME B30.1 safety standards

Enerpac SE18

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G20,6 mm (0.81 in)

Minimum Pipe Length457,2 mm

Dimension E68,1 mm (2.68 in)

Pipe Size50,8 mm (2 in)

Height76,2 mm (3.00 in)

Country of OriginChina

Dimension F279,4 mm (11 in)

Dimension D38,1 mm (1.5 in)

Screw Outside Diameter47,5 mm (1.87 in)

Base Length190,5 mm (7.5 in)

Dimension C190,5 mm (7.5 in)

Dimension B69,9 mm (2.75 in)

Dimension KN/A mm

Power SourceMechanical

Dimension I47,5 mm (1.87 in)

Dimension J76,2 mm (3 in)

Dimension H35,1 mm (1.38 in)

Product TypeTrench Brace - Screw End

Base Width69,9 mm (2.75 in)

Screw Diameter1.87 in

SeriesSE

Lever Nut Height35,1 mm (1.38 in)

Lever Height20,6 mm (0.81 in)

Dimension LN/A mm

Lever Length279,4 mm (11 in)

Lever Width38,1 mm (1.5 in)

Dimension A457,2 mm (18 in)

Adjustment Range254 mm (10 in)

Product LineMechanical Tools

Weight20.95 lbs

Lever Outside Diameter68,1 mm (2.68 in)

Minimum Pipe Length18 in
