How can I get a price quote for Enerpac SE12?

You can request a fast quote for Enerpac SE12 from Yılsa Engineering. Reference part number CEY-7B4B2D99D768. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SE12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SE12 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SE12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

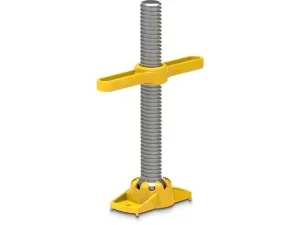

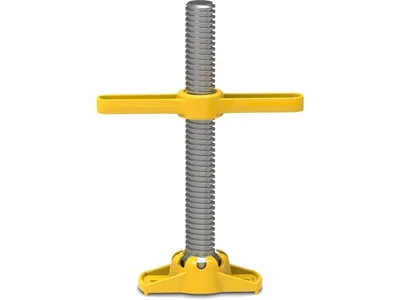

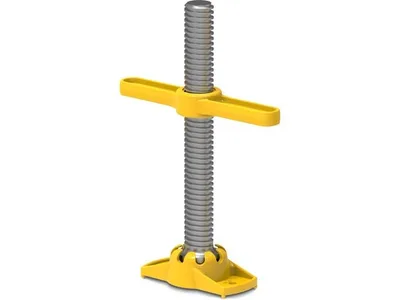

Enerpac Simplex SE12 Trench Brace

Enerpac Simplex SE12; 7 in adjust range, 38.1 mm (1.5 in) pipe size, 304.8 mm minimum pipe length, mechanical screw-end trench brace.

EnerpacMFR # SE12SKU # CEY-7B4B2D99D768

Dimension G17,3 mm (0.68 in)

Minimum Pipe Length304,8 mm

Dimension E54,1 mm (2.13 in)

Pipe Size38,1 mm (1.5 in)

Height62 mm (2.44 in)

Country of OriginChina

Have questions?Chat on WhatsApp

About This Product

SE12 is a Simplex-branded screw-end trench brace from the Enerpac Mechanical Tools product line. It has a 7 in adjust range, 38.1 mm (1.5 in) pipe size and 304.8 mm minimum pipe length; its power source is mechanical. The brace extends by turning the lever nut handle. Ball socket joints tilt for added safety on angular mounting, and holes at each end facilitate mounting to wood members. Body dimensions: base 146.1 x 62 mm, height 62 mm, screw outside diameter 35.1 mm. Country of origin is China. It is used in construction and utility maintenance to protect against cave-ins and costly re-digging. The design meets or exceeds ANSI/ASME B30.1 safety standards and is CE compliant.

Features and Benefits

Efficient, economical protection against cave-ins and re-digging
Mechanical screw design that extends by turning the lever nut handle
Ball socket joints tilt for added safety on angular mounting
Holes at each end facilitate mounting to wood members
CE compliant; meets or exceeds ANSI/ASME B30.1 safety standards

Enerpac SE12

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G17,3 mm (0.68 in)

Minimum Pipe Length304,8 mm

Dimension E54,1 mm (2.13 in)

Pipe Size38,1 mm (1.5 in)

Height62 mm (2.44 in)

Country of OriginChina

Dimension F241,3 mm (9.5 in)

Dimension D31,8 mm (1.25 in)

Screw Outside Diameter35,1 mm (1.38 in)

Base Length146,1 mm (5.75 in)

Dimension C146,1 mm (5.75 in)

Dimension B62 mm (2.44 in)

Dimension KN/A mm

Power SourceMechanical

Dimension I35,1 mm (1.38 in)

Dimension J62 mm (2.44 in)

Dimension H28,7 mm (1.13 in)

Product TypeTrench Brace - Screw End

Base Width62 mm (2.44 in)

Screw Diameter1.38 in

SeriesSE

Lever Nut Height28,7 mm (1.13 in)

Lever Height17,3 mm (0.68 in)

Dimension LN/A mm

Lever Length241,3 mm (9.5 in)

Lever Width31,8 mm (1.25 in)

Dimension A304,8 mm (12 in)

Adjustment Range177,8 mm (7 in)

Product LineMechanical Tools

Weight8.8 lbs

Lever Outside Diameter54,1 mm (2.13 in)

Minimum Pipe Length12 in

Documents & CAD

Series documents 1· shared by this product series

CertificateEC2B-MECHJACKS_RevH_June2022PDF·137 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

SE12SE 12SE-12se12Simplex SE12Simplex SE 12Enerpac SE12Enerpac Simplex SE12SE12 trench braceSE12 screw end trench braceSimplex SE seriesSimplex trench bracescrew end trench bracetrench brace 7 in adjust range1.5 in pipe size trench brace38.1 mm pipe trench bracemechanical trench bracelever nut trench bracetrench shoring bracetrench cave-in protection brace
