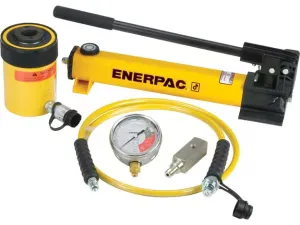

Enerpac SCH302H 30 ton set

Enerpac SCH302H; 30 ton (326 kN), 64 mm stroke, 700 bar hollow hydraulic cylinder and hand pump set.

EnerpacMFR # SCH302HSKU # CEY-8EF3B033E0BE

Country of OriginChina

Collapsed Height178 mm (7.03 in)

Cylinder Capacity & Stroke30 Ton, 2.5" Stroke

Stroke64 mm (2.5 in)

Set Pump TypeHand Pump

Model TypeHand Pump, 30 Ton, 2.5" Stroke

Have questions?Chat on WhatsApp

About This Product

The SCH302H is a porta power set that combines a single-acting RCH302 hollow hydraulic cylinder with a P392 hand pump. The cylinder offers 30 ton (326 kN) capacity, 64 mm (2.5 in) stroke and 178 mm (7.03 in) collapsed height. Maximum operating pressure is 700 bar (10,000 psi). The set consists of the P392 pump, RCH302 cylinder, HC7206 hose, GF813P gauge and GA3 gauge adaptor. The pump is two-speed, the hose is 6 ft long and the gauge is calibrated. The hollow bore of the cylinder has collar threads for fixturing. It is used for lifting, pushing, pulling and tensioning applications.

Features and Benefits

30 ton (326 kN) single-acting hollow cylinder
64 mm (2.5 in) stroke, 178 mm collapsed height
700 bar (10,000 psi) maximum operating pressure
Two-speed P392 hand pump
Ready-to-use set: 6 ft hose, calibrated gauge and adaptor included
Collar threads on the body for fixturing

Enerpac SCH302H

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Collapsed Height178 mm (7.03 in)

Cylinder Capacity & Stroke30 Ton, 2.5" Stroke

Stroke64 mm (2.5 in)

Set Pump TypeHand Pump

Model TypeHand Pump, 30 Ton, 2.5" Stroke

Maximum Operating Pressure700 bar (10,000 psi)

Cylinder Advance Capacity326 kN (30 ton)

ApplicationsLift, Push, Pull, Tension

Product LineIndustrial Tools

Product TypeCylinder and Hand Pump Set

SeriesSCH

Set IncludesP392,RCH302,HC7206,GF813P,GA3

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetPump - HandPDF·119 KB·English

Repair Parts SheetCylinder - 30 TonPDF·380 KB·English

BrochureSC-Series Cylinder Pump Sets; EnglishPDF·471 KB
