How can I get a price quote for Enerpac SCH202H?

You can request a fast quote for Enerpac SCH202H from Yılsa Engineering. Reference part number CEY-8EF3B033E0C3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SCH202H in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SCH202H genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SCH202H?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac SCH202H 20 ton set

Enerpac SCH202H; 20 ton (215 kN), 49 mm stroke, 700 bar hollow hydraulic cylinder and hand pump set.

EnerpacMFR # SCH202HSKU # CEY-8EF3B033E0C3

Country of OriginChina

Collapsed Height162 mm (6.31 in)

Cylinder Capacity & Stroke20 Ton, 2" Stroke

Stroke49 mm (2 in)

Set Pump TypeHand Pump

Model TypeHand Pump, 20 Ton, 2" Stroke

Have questions?Chat on WhatsApp

About This Product

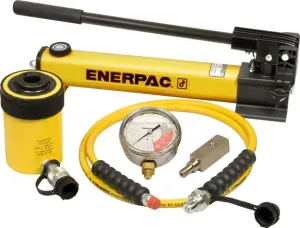

The SCH202H is a porta power set that combines a single-acting RCH202 hollow hydraulic cylinder with a P392 hand pump. The cylinder offers 20 ton (215 kN) capacity, 49 mm (2 in) stroke and 162 mm (6.31 in) collapsed height. Maximum operating pressure is 700 bar (10,000 psi). The set consists of the P392 pump, RCH202 cylinder, HC7206 hose, GF813P gauge and GA3 gauge adaptor. The pump is two-speed, the hose is 6 ft long and the gauge is calibrated. The hollow bore of the cylinder has collar threads for fixturing. It is used for lifting, pushing, pulling and tensioning applications.

Features and Benefits

20 ton (215 kN) single-acting hollow cylinder
49 mm (2 in) stroke, 162 mm collapsed height
700 bar (10,000 psi) maximum operating pressure
Two-speed P392 hand pump
Ready-to-use set: 6 ft hose, calibrated gauge and adaptor included
Collar threads on the body for fixturing

Enerpac SCH202H

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Collapsed Height162 mm (6.31 in)

Cylinder Capacity & Stroke20 Ton, 2" Stroke

Stroke49 mm (2 in)

Set Pump TypeHand Pump

Model TypeHand Pump, 20 Ton, 2" Stroke

Maximum Operating Pressure700 bar (10,000 psi)

Cylinder Advance Capacity215 kN (20 ton)

ApplicationsLift, Push, Pull, Tension

Product LineIndustrial Tools

Product TypeCylinder and Hand Pump Set

SeriesSCH

Set IncludesP392,RCH202,HC7206,GF813P,GA3

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - 20 TonPDF·45 KB·English

Repair Parts SheetPump - HandPDF·119 KB·English

BrochureSC-Series Cylinder Pump Sets; EnglishPDF·471 KB
