How can I get a price quote for Enerpac RR20024?

You can request a fast quote for Enerpac RR20024 from Yılsa Engineering. Reference part number YLSMST7NI2G8L28. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RR20024 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RR20024 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RR20024?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac RR20024 221 ton Hydraulic Cylinder

Enerpac RR20024; 221 ton capacity, 610 mm (24 in) stroke, 700 bar, double-acting general purpose hydraulic cylinder.

EnerpacMFR # RR20024SKU # YLSMST7NI2G8L28

Oil Capacity (Advance)17385 cm³ (1,061 in³)

Base Mounting Holes Thread Depth Z25 mm (1 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)8863 cm³ (528 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V1”- 8

Have questions?Chat on WhatsApp

About This Product

RR20024 is a long-stroke, double-acting general purpose hydraulic cylinder from the RR series. It offers 221 ton capacity and 24 in (610 mm) stroke, with a maximum operating pressure of 700 bar (10,000 psi). Retract capacity is 112.5 ton. Cylinder bore is 190.5 mm and outside diameter is 247 mm. Advance oil capacity is 17,385 cm³ and retract oil capacity is 8,863 cm³. The plunger internal thread is 2 1/2" - 12 and saddle diameter is 133 mm; the base mounting thread is 1" - 8 with 25 mm thread depth. Weight is about 279 kg (616 lb) and the finish is paint. Country of origin is the United States; a CR400 coupler is used. It is used in construction and manufacturing applications where a load must be lifted or pushed over a longer distance.

Features and Benefits

Long 610 mm (24 in) stroke for greater travel
700 bar (10,000 psi) maximum operating pressure
Collar, plunger and base mounting threads for easy fixturing
Built-in safety valve prevents over-pressurization
Plunger wiper reduces contamination and extends cylinder life
CR400 coupler used

Enerpac RR20024

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)17385 cm³ (1,061 in³)

Base Mounting Holes Thread Depth Z25 mm (1 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)8863 cm³ (528 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V1”- 8

Maximum Cylinder Capacity (Advance)1995 kN (221 ton)

Outside Diameter D247 mm (9.75 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)190,5 mm (7.5 in)

Product TypeGeneral Purpose Cylinder

SeriesRR

Plunger Internal Thread2 1/2" - 12

Base to Advance Port H85 mm (3.38 in)

Model Type221 Ton Capacity, 24 in. Stroke

Max. Cylinder Retract Capacity112.5 ton

Product LineIndustrial Tools

Weight279 kg (616 lbs)

Top to Retract Port (I)101 mm (4 in)

Plunger Internal Thread O2 1/2"- 12

Saddle Diameter J133 mm (5.25 in)

Surface TreatmentPaint

Cylinder Class200 ton

Country of OriginUnited States

Collar Thread Length (X)54 mm (2.13 in)

Saddle Diameter J1133 mm

Extended Height (B)1527 mm (60.13 in)

Cylinder Effective Area (Advance)285,0 cm² (44.21 in²)

Cylinder Effective Area (Retract)145,3 cm²

Plunger TypeSolid

Cylinder Effective Area (Retract)22.5 in²

Collapsed Height (A)917 mm (36.13 in)

Cylinder MaterialSteel

Collar Thread (W)9¾”- 12 (9 3/4" - 12)

Stroke610 mm (24 in)

Saddle Protrusion from Plunger K22 mm (0.88 in)

Saddle Protrusion from Plunger K122 mm

Plunger Thread Length (P)63 mm (2.5 in)

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F133,4 mm (5.25 in)

Base Mounting Holes Bolt Circle U127 mm (5 in)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinders - RR-20018, 20024, 20036, 20048PDF·69 KB·English

BrochureRR-Series Cylinders Double-Acting Long Stroke; EnglishPDF·409 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

RR20024RR-20024RR 20024Enerpac RR20024Enerpac RR-20024Enerpac RR 20024RR20024 hydraulic cylinderRR20024 double-acting cylinderEnerpac RR seriesEnerpac RR series hydraulic cylinderRR series general purpose cylinder221 ton hydraulic cylinder200 ton double-acting hydraulic cylinder610 mm stroke double-acting cylinder24 inch stroke hydraulic cylinderlong stroke 200 ton cylinder700 bar double-acting cylinderEnerpac 200 ton cylinder

Cookie Notice

Enerpac RR20024 221 ton Hydraulic Cylinder

About This Product

Features and Benefits

Enerpac RR20024

Specifications

Documents & CAD

Series documents 4· shared by this product series

CAD Files 3

Related Products

Enerpac HF102 5 Gal (20 L) Hydraulic Oil

Enerpac PEM8418C 700 bar Electric Hydraulic Pump

Enerpac HC9308 2.4 m Hydraulic Hose

Enerpac SFP404SW 700 bar Split Flow Pump

Enerpac RR20048K cylinder repair kit

Enerpac CB804045 200 Ton Saddle

Enerpac CJ160900W Relief Valve Assembly

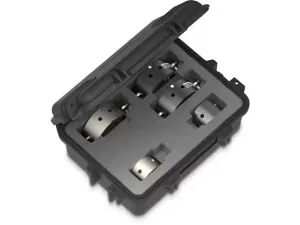

Enerpac CR30S 30 ton Cribbing Ring Set

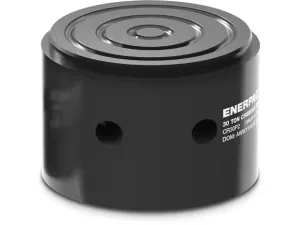

Enerpac CR30P2 Top Spacer

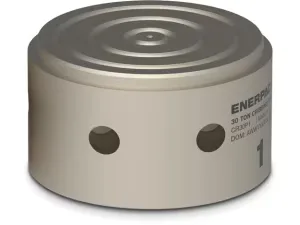

Enerpac CR30P1 Bottom Spacer
