Enerpac PEM8418C 700 bar Electric Hydraulic Pump

Enerpac PEM8418C; 700 bar (10,000 psi), 68 L (18 gal) usable oil, 460 V 3-phase, two-speed electric hydraulic pump with 4/3 manual valve for double-acting cylinders.

EnerpacMFR # PEM8418CSKU # YLS58VFAL3QLW81

Maximum Operating Pressure Range10,000 psi

Output Flow Rate 1st Stage1016.4 in³/min (4.4 gal/min)

Country of OriginUnited States

Motor Phases3 Ph

Maximum Flow at Rated Pressure2 gal/min

Motor Electrical Specification460 V, 3 Ph, 60 Hz

Have questions?Chat on WhatsApp

About This Product

PEM8418C is an Enerpac 8000 Series two-speed, high-flow electric hydraulic pump. With a 4/3 manual valve (VM4) it is intended for double-acting cylinders. The motor is 12.5 hp, 460 V, 3-phase, 60 Hz and draws 16.5 A. Maximum operating pressure is 700 bar (10,000 psi). The first stage delivers approx. 16.7 L/min (4.4 gal/min) up to 255 bar (3,700 psi), and the second stage approx. 7.6 L/min (2 gal/min) at 700 bar. Reservoir capacity is 25 gal (95 L) with 18 gal (68 L) usable oil. Sound level is 78-84 dBA. It suits large cylinders, multiple-cylinder circuits and high-flow applications with extended duty cycles.

Features and Benefits

4/3 manual valve (VM4) for double-acting cylinder control
Two-speed pump design with high by-pass pressure for rapid cylinder advance
700 bar (10,000 psi) maximum operating pressure
460 V, 3-phase motor; 16.5 A current draw
Panel-mounted pressure gauge and adjustable relief valve
Full-length reservoir sight tube with integral thermometer

Enerpac PEM8418C

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range10,000 psi

Output Flow Rate 1st Stage1016.4 in³/min (4.4 gal/min)

Country of OriginUnited States

Motor Phases3 Ph

Maximum Flow at Rated Pressure2 gal/min

Motor Electrical Specification460 V, 3 Ph, 60 Hz

Motor Voltage460-480 V V

Usable Oil Capacity18 gal

Output Flow Rate 2nd Stage462 in³/min

Motor Frequency60 Hz Hz

1st Stage Pressure Rating3700 psi

Reservoir Capacity25 gal

Product TypeElectric Pump - High Flow

Duty CycleExtended

Reservoir Capacity5,775 in³

Sound Level78 - 84 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationManual

Pump Valve Type4-way, 3-position

Motor Size12.5 hp

Series8000

Pump Power SourceElectric

Current Draw16.5 A

2nd Stage Pressure Rating10,000 psi

Cylinder CompatibilityDouble-acting

Valve ModelVM4

Product LineIndustrial Tools

Weight720 lbs

2nd Stage Output Flow2 gal/min

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualPump - ElectricPDF·1.7 MB 2 languages· in one file

Repair Parts SheetPump - ElectricPDF·799 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochurePEM-PER-8000-Series Electric Pumps; EnglishPDF·501 KB

Alternative Names & Search Terms

PEM8418CPEM-8418CPEM 8418CEnerpac PEM8418CEnerpac PEM-8418CPEM8418C electric hydraulic pumpPEM8418C pumpEnerpac 8000 seriesEnerpac 8000 series pumpPEM series electric pumptwo speed electric hydraulic pump10000 psi electric hydraulic pump4/3 manual valve hydraulic pumpelectric pump for double acting cylinders460V 3 phase hydraulic pump18 gallon usable oil hydraulic pump68 liter usable oil hydraulic pumphigh flow electric hydraulic pump12.5 hp hydraulic pumplarge reservoir hydraulic pump

Cookie Notice

Enerpac PEM8418C 700 bar Electric Hydraulic Pump

About This Product

Features and Benefits

Enerpac PEM8418C

Specifications

Documents & CAD

Series documents 5· shared by this product series

Related Products

Enerpac PER8418C 700 bar Electric Pump

Enerpac ZE6210XJ-S 700 bar Electric Pump

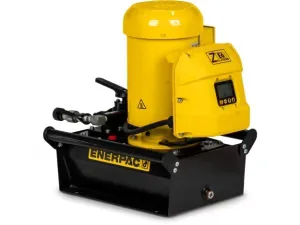

Enerpac ZE6210XG-S 700 bar Electric Pump

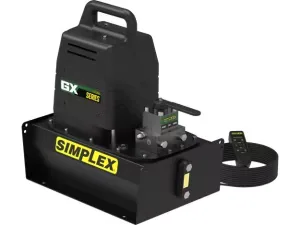

Enerpac GX314 700 bar Electric Hydraulic Pump

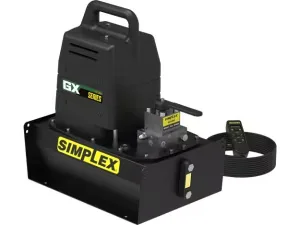

Enerpac GX313 700 bar Electric Hydraulic Pump

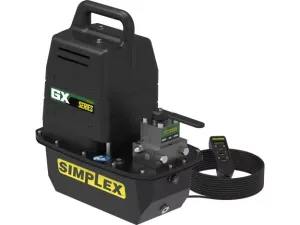

Enerpac GX124 700 bar Electric Hydraulic Pump

Enerpac GX123 700 bar Electric Hydraulic Pump

Enerpac GX114 700 bar Electric Hydraulic Pump

Enerpac GX113 700 bar Electric Hydraulic Pump

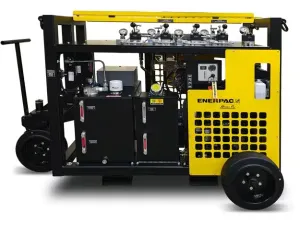

Enerpac SFP837MD 8-Outlet Diesel Pump
