How can I get a price quote for Enerpac RD96?

You can request a fast quote for Enerpac RD96 from Yılsa Engineering. Reference part number CEY-7B4B2D990574. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RD96 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RD96 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RD96?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

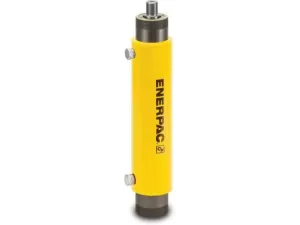

Enerpac RD96 9 ton Double-Acting Cylinder

Enerpac RD96; 9 ton capacity, 155.7 mm (6.13 in) stroke, 700 bar (10,000 psi) maximum pressure, double-acting general purpose hydraulic cylinder.

EnerpacMFR # RD96SKU # CEY-7B4B2D990574

Oil Capacity (Advance)177 cm³ (10.82 in³)

Clevis Eye Mounting Dimension M38 mm (1.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)98 cm³ (6.01 in³)

ApplicationsLift, Lower, Push, Pull

Maximum Cylinder Capacity (Advance)9 ton

Have questions?Chat on WhatsApp

About This Product

RD96 is a 9 ton, 155.7 mm (6.13 in) stroke, double-acting general purpose hydraulic cylinder from the Enerpac RD series. It is designed for lifting, lowering, pushing and pulling, with a maximum operating pressure of 700 bar (10,000 psi). The cylinder has a 38.1 mm bore, 63.5 mm outside diameter, 325 mm body length and weighs approximately 6.4 kg (14 lb). Advance oil capacity is 177 cm³ and retract oil capacity is 98 cm³; maximum retract capacity is 5 tons. The plunger outside thread is 3/4"-16 and the body is painted. It is used in production applications, fixturing and workholding, and in general industrial tool applications.

Features and Benefits

Designed for long life and suited to production applications
Unique mounting configurations simplify fixturing
Baked enamel finish increases corrosion resistance
Double-acting operation develops force in both directions
Plunger wiper reduces contamination and extends cylinder life

Enerpac RD96

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)177 cm³ (10.82 in³)

Clevis Eye Mounting Dimension M38 mm (1.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)98 cm³ (6.01 in³)

ApplicationsLift, Lower, Push, Pull

Maximum Cylinder Capacity (Advance)9 ton

Outside Diameter D63,5 mm (2.5 in)

Clevis Eye Mounting Dimension L1577 mm (22.79 in)

Coupler Used-

Cylinder Bore Diameter (E)38,1 mm (1.5 in)

Product TypeGeneral Purpose Cylinder

Neck Length (N)38 mm

Body Length C325 mm (12.8 in)

Plunger Protrusion (K)25 mm

SeriesRD

Bottom to Advance Port (I)57 mm

Top to Retract Port (H)57 mm

Base to Advance Port H2.27 in

Cylinder Capacity Advance at 5000 psi9000 lbs

Max. Cylinder Retract Capacity5 ton

Product LineIndustrial Tools, Workholding Tools

Plunger Outside Thread (Q)3/4" - 16

Weight5,6 kg (14 lbs)

Top to Retract Port (I)2.27 in

Surface TreatmentPaint

Cylinder Class9 ton

Country of OriginChina

Neck Length N1.5 in

Clevis Eye Mounting Dimension L422 mm (16.66 in)

Collar Thread Length (X)14 mm (0.56 in)

Plunger External Thread Q3/4" - 16

Extended Height (B)505 mm (19.91 in)

Cylinder Effective Area (Advance)11,4 cm² (1.77 in²)

Cylinder Effective Area (Retract)6,3 cm²

Top to Return Port H57 mm (2.27 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)0.98 in²

Collapsed Height (A)350 mm (13.78 in)

Cylinder MaterialSteel

Bottom to Advance Port I2.27 in

Internal Base Thread Length Z10.55 in

Collar Thread (W)2"-12

Retract Capacity at 350 bar21,8 kN

Internal Base Thread Length (Z1)14 mm

Stroke155 mm (6.13 in)

Cylinder Retract Capacity (5000 psi)4910 lbs

Cylinder Capacity at 350 bar (Advance)40,0 kN

Minimum Operating Pressure35 bar

Plunger Thread Length (P)22 mm (0.75 in)

Internal Base Thread Z1 11/16"-18

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F25,4 mm (1 in)

Link Width N1.5 in

Plunger Protrusion K0.98 in

Internal Base Thread (Z)1 11/16"-18

Saddle Protrusion from Plunger K0.98 in

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualRD & BRD Series JacksPDF·109 KB·English

Instruction ManualRD / BRD Hydraulic CylindersPDF·2.4 MB 4 languages· in one file

Repair Parts SheetParts Kits (Europe Only)PDF·237 KB·English

Repair Parts SheetCylinder - 9 TonPDF·381 KB·English

2D DrawingRD96 drawingPDF·380 KB

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 5

3D Model
