How can I get a price quote for Enerpac RC502?

You can request a fast quote for Enerpac RC502 from Yılsa Engineering. Reference part number CEY-8EF3B033E9E8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC502 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC502 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC502?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

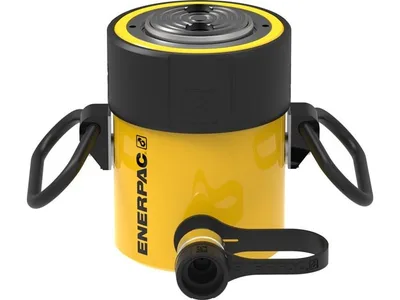

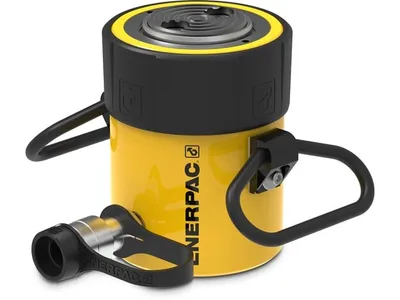

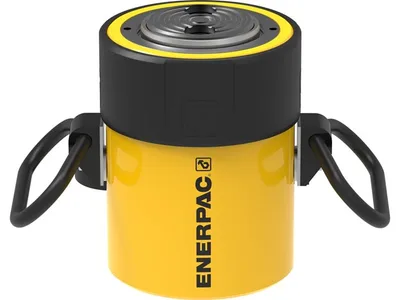

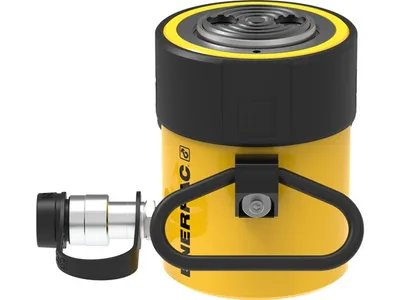

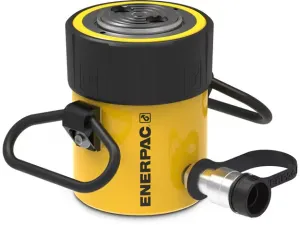

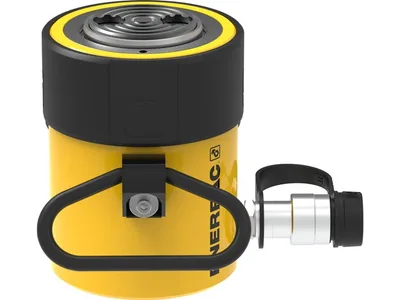

Enerpac RC502 55.2 ton Hydraulic Cylinder

Enerpac RC502; 55.2 ton capacity, 51 mm (2.00 in) stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC502SKU # CEY-8EF3B033E9E8

Cylinder Class50 ton

Stroke51 mm (2 in)

Collapsed Height (A)176 mm (6.94 in)

Outside Diameter D127 mm (5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U95 mm (3.75 in)

Have questions?Chat on WhatsApp

About This Product

RC502 is a general purpose hydraulic cylinder from the Enerpac RC-Series (RC-TRIO). It has a 55.2 ton capacity, a 51 mm stroke and single-acting spring-return operation. Collapsed height is 176 mm, outside diameter 127 mm and weight 15.0 kg. Collar thread is 5"-12 UN and the base mounting holes sit on a 95 mm bolt circle. The finish is paint, and a CR400 coupler and dust cap are included. It is intended for lifting and pushing applications and is designed for use in all positions.

Features and Benefits

Bearing system with composite wear bands for high side-load resistance
Trio hybrid pre-tensioned spring system for faster retraction
High-grade polyethylene seals for low wear and long service life
Plunger wiper reduces contamination and extends cylinder life
Collar and plunger threads and base mounting holes for easy fixturing
CR400 coupler and dust cap included; usable in all positions

Enerpac RC502

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class50 ton

Stroke51 mm (2 in)

Collapsed Height (A)176 mm (6.94 in)

Outside Diameter D127 mm (5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U95 mm (3.75 in)

Collar Thread (W)5" - 12 UN

Surface TreatmentPaint

Weight15,0 kg (33 lbs)

Oil Capacity (Advance)362 cm³ (22.09 in³)

Base Mounting Holes Thread Depth Z19 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/2"- 13 un

Maximum Cylinder Capacity (Advance)498 kN (55.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)95,2 mm (3.75 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal ThreadN/A

Base to Advance Port H33 mm (1.31 in)

Model Type55.2 Ton Capacity, 2 in. Stroke

Optional Tilt Saddle Diameter (J1)2.81 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J71 mm (2.8 in)

Country of OriginChina

Collar Thread Length (X)55 mm (2.19 in)

Saddle Diameter J171 mm

Extended Height (B)227 mm (8.94 in)

Cylinder Effective Area (Advance)71,3 cm² (11.04 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Saddle Protrusion from Plunger K2 mm (0.11 in)

Saddle Protrusion from Plunger K12 mm

Plunger Thread Length (P)N/A mm

Plunger Diameter F79,4 mm (3.13 in)

Set IncludesCHM6

Documents & CAD

For this product 1

2D DrawingRC502 drawingPDF·367 KB

Series documents 7· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRC Duo Hydraulic Cylinders RPSPDF·345 KB·English

Repair Parts SheetCylinder - 50 TonPDF·247 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·372 KB·English

Repair Parts SheetRC TRIO CylindersPDF·535 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

RC502RC-502RC 502Enerpac RC502Enerpac RC-502RC502 hydraulic cylinderRC502 cylinderEnerpac RC seriesRC series hydraulic cylinderRC-TRIO cylindergeneral purpose hydraulic cylinder55.2 ton hydraulic cylinder50 ton hydraulic cylinder51 mm stroke single acting cylinderspring return hydraulic cylindersingle acting hydraulic cylinder2 in stroke hydraulic cylinder
