How can I get a price quote for Enerpac RC5010?

You can request a fast quote for Enerpac RC5010 from Yılsa Engineering. Reference part number YLSFYNNZI4HXBHQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC5010 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC5010 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC5010?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

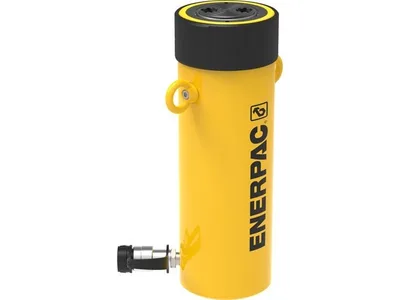

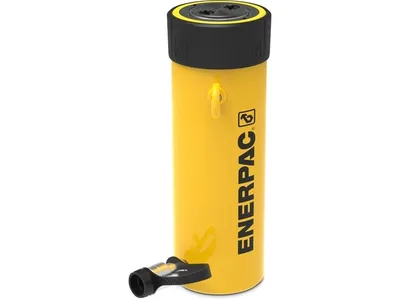

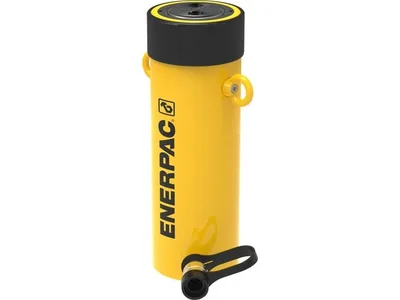

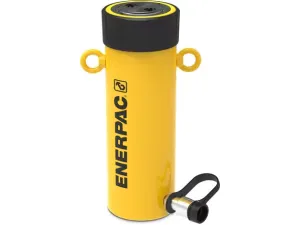

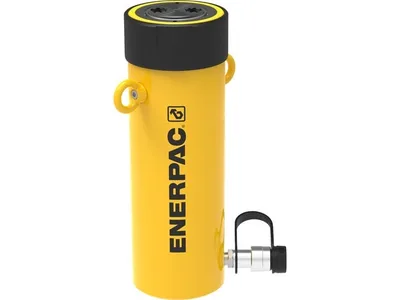

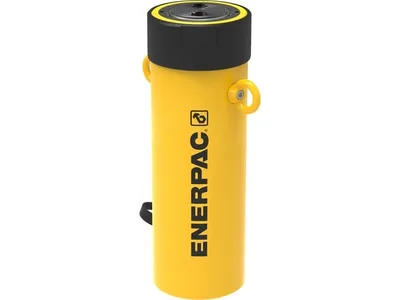

Enerpac RC5010 55.2 ton Hydraulic Cylinder

Enerpac RC5010; 55.2 ton capacity, 260 mm (10.25 in) stroke, 700 bar (10,000 psi), single-acting general purpose hydraulic cylinder.

EnerpacMFR # RC5010SKU # YLSFYNNZI4HXBHQ

Oil Capacity (Advance)1855 cm³ (113.21 in³)

Base Mounting Holes Thread Depth Z19 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/2"- 13 unc

Maximum Cylinder Capacity (Advance)498 kN (55.2 ton)

Have questions?Chat on WhatsApp

About This Product

The RC5010 is a single-acting, spring-return general purpose hydraulic cylinder from the Enerpac RC-Series (RC-TRIO). It offers 55.2 ton capacity, 10.25 in (about 260 mm) stroke and a maximum operating pressure of 700 bar (10,000 psi). Extended height is 644 mm, outside diameter 127 mm and cylinder bore 95.2 mm. Advance oil capacity is 1855 cm³ and effective area is 11.04 in². The saddle diameter is 71 mm with a maximum tilt of 5 degrees. Base mounting holes are 1/2"-13 UNC (thread depth 19 mm) and the collar thread length is 55 mm. It weighs 70 lb (about 31.8 kg) and has a painted finish. A CR400 coupler is used. It is used for lifting and pushing in industrial work that needs a long-stroke, high-capacity cylinder.

Features and Benefits

55.2 ton capacity, 10.25 in stroke, 700 bar maximum pressure
Composite wear band bearing system and strengthened stop ring for side load resistance
Trio Hybrid pre-tensioned spring system for faster retraction
Collar thread and 1/2"-13 UNC base mounting holes for easy fixturing
Certified lifting eyes and compatible with optional CHM6 carrying handle

Enerpac RC5010

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)1855 cm³ (113.21 in³)

Base Mounting Holes Thread Depth Z19 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/2"- 13 unc

Maximum Cylinder Capacity (Advance)498 kN (55.2 ton)

Outside Diameter D127 mm (5 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)95,2 mm (3.75 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal ThreadN/A

Base to Advance Port H35 mm (1.38 in)

Model Type55.2 Ton Capacity, 10.25 in. Stroke

Optional Tilt Saddle Diameter (J1)2.81 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Weight31,8 kg (70 lbs)

Saddle Diameter J71 mm (2.8 in)

Surface TreatmentPaint

Cylinder Class50 ton

Collar Thread Length (X)55 mm (2.19 in)

Saddle Diameter J171 mm

Extended Height (B)644 mm (25.35 in)

Cylinder Effective Area (Advance)71,3 cm² (11.04 in²)

Plunger TypeSolid

Collapsed Height (A)384 mm (15.12 in)

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Collar Thread (W)5" - 12 un

Stroke260 mm (10.25 in)

Saddle Protrusion from Plunger K2 mm (0.11 in)

Saddle Protrusion from Plunger K12 mm

Plunger Thread Length (P)N/A mm

Return TypeSingle-Acting, Spring Return

Plunger Diameter F79,4 mm (3.13 in)

Base Mounting Holes Bolt Circle U95 mm (3.75 in)

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRC50 Series Hydraulic CylindersPDF·514 KB·English

Repair Parts SheetRC TRIOPDF·349 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB
