How can I get a price quote for Enerpac RC254?

You can request a fast quote for Enerpac RC254 from Yılsa Engineering. Reference part number CEY-55221B12D714. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC254 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC254 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC254?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

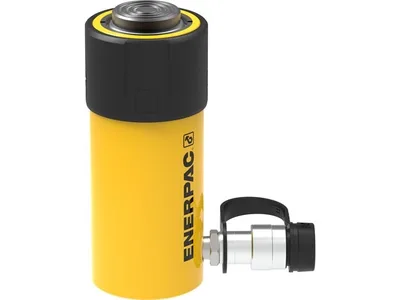

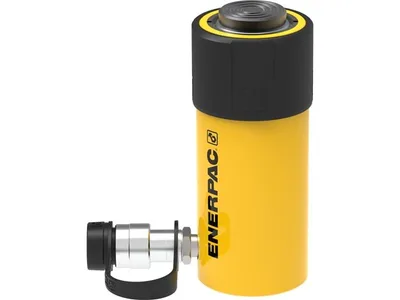

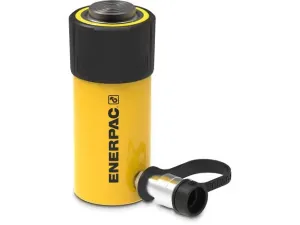

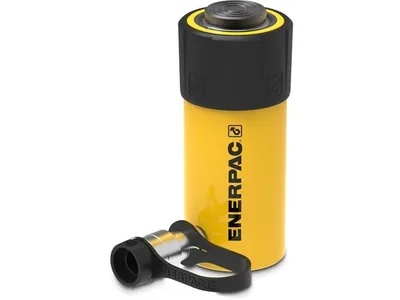

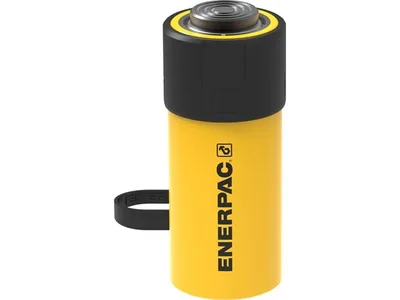

Enerpac RC254 25.8 ton Hydraulic Cylinder

Enerpac RC254; 25.8 ton capacity, 102 mm (4.00 in) stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC254SKU # CEY-55221B12D714

Cylinder Class25 ton

Stroke102 mm (4 in)

Collapsed Height (A)216 mm (8.5 in)

Outside Diameter D86 mm (3.38 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U59 mm (2.31 in)

Have questions?Chat on WhatsApp

About This Product

RC254 is a general purpose hydraulic cylinder from the Enerpac RC-Series (RC-TRIO). It has a 25.8 ton capacity, a 102 mm stroke and single-acting spring-return operation. Collapsed height is 216 mm, outside diameter 86 mm and weight 8.2 kg. Collar thread is 3 5/16"-12 UN and the base mounting holes sit on a 59 mm bolt circle. The finish is paint, and a CR400 coupler and dust cap are included. It is intended for lifting and pushing applications and is designed for use in all positions.

Features and Benefits

Bearing system with composite wear bands for high side-load resistance
Trio hybrid pre-tensioned spring system for faster retraction
High-grade polyethylene seals for low wear and long service life
Plunger wiper reduces contamination and extends cylinder life
Collar and plunger threads and base mounting holes for easy fixturing
CR400 coupler and dust cap included; usable in all positions

Enerpac RC254

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class25 ton

Stroke102 mm (4 in)

Collapsed Height (A)216 mm (8.5 in)

Outside Diameter D86 mm (3.38 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U59 mm (2.31 in)

Collar Thread (W)3 5/16" - 12 UN

Surface TreatmentPaint

Weight8,2 kg (18 lbs)

Oil Capacity (Advance)339 cm³ (20.63 in³)

Base Mounting Holes Thread Depth Z19 mm (0.75 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V1/2"- 13 un

Maximum Cylinder Capacity (Advance)232 kN (25.8 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)65,1 mm (2.56 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal Thread1 1/2" - 16

Base to Advance Port H25 mm (1 in)

Model Type25.8 Ton Capacity, 4 in. Stroke

Optional Tilt Saddle Diameter (J1)1.97 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J51 mm (1.97 in)

Country of OriginChina

Collar Thread Length (X)49 mm (1.94 in)

Saddle Diameter J150 mm

Extended Height (B)318 mm (12.5 in)

Cylinder Effective Area (Advance)33,3 cm² (5.16 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)15 mm (0.59 in)

Saddle Protrusion from Plunger K10 mm (0.41 in)

Saddle Protrusion from Plunger K110 mm

Plunger Thread Length (P)25 mm (1 in)

Plunger Diameter F57,2 mm (2.25 in)

Documents & CAD

For this product 1

2D DrawingRC254 drawingPDF·33 KB

Series documents 7· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRC Duo Hydraulic Cylinders RPSPDF·274 KB·English

Repair Parts SheetRC Trio Cylinders RPSPDF·615 KB·English

Repair Parts SheetCylinder - 25 TonPDF·40 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·257 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB

CAD Files 3

3D Model
