How can I get a price quote for Enerpac RC156?

You can request a fast quote for Enerpac RC156 from Yılsa Engineering. Reference part number CEY-55221B12E0AF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RC156 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RC156 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RC156?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

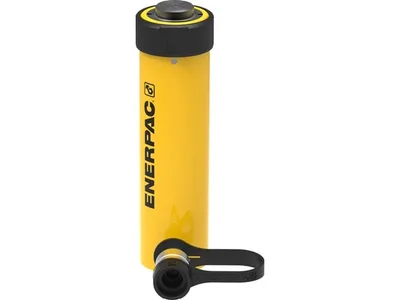

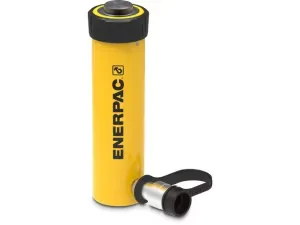

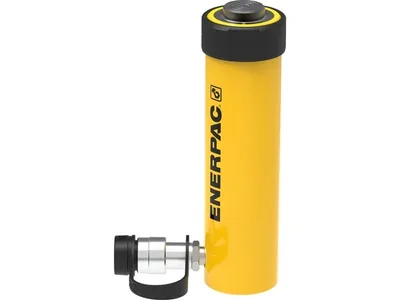

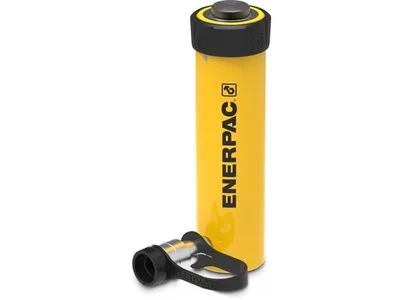

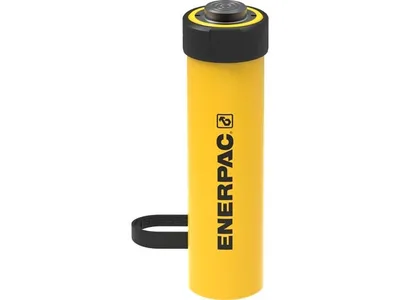

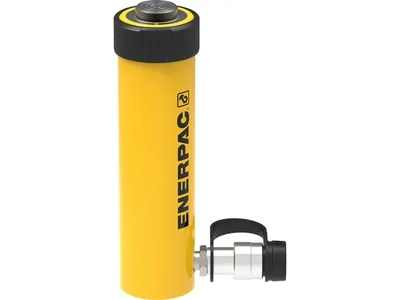

Enerpac RC156 15.7 ton 152 mm Stroke Cylinder

Enerpac RC156; 15.7 ton capacity, 152 mm stroke, single-acting spring-return general purpose hydraulic cylinder.

EnerpacMFR # RC156SKU # CEY-55221B12E0AF

Cylinder Class15 ton

Stroke152 mm (6 in)

Collapsed Height (A)271 mm (10.69 in)

Outside Diameter D70 mm (2.75 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U48 mm (1.88 in)

Have questions?Chat on WhatsApp

About This Product

RC156 is a general purpose, single-acting, spring-return hydraulic cylinder from the RC series. It has a capacity of 15.7 tons and a stroke of 152 mm. Collapsed height is 271 mm, outside diameter is 70 mm and weight is 6.8 kg. Base mounting holes (48 mm bolt circle) and a collar thread (2 3/4 in - 16 UN) make fixturing easier. The body is painted, and the cylinder includes a CR400 coupler and dust cap. It is designed for lifting and pushing applications and can be used in all positions.

Features and Benefits

Bearing system with composite wear bands resists side loads
Trio Hybrid pre-tensioned spring system for faster retraction
High-grade polyethylene seals and plunger wiper for long service life
Base mounting holes plus collar and plunger threads for easy fixturing
Designed for use in all positions
CR400 coupler and dust cap included

Enerpac RC156

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class15 ton

Stroke152 mm (6 in)

Collapsed Height (A)271 mm (10.69 in)

Outside Diameter D70 mm (2.75 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U48 mm (1.88 in)

Collar Thread (W)2 3/4" - 16 UN

Surface TreatmentPaint

Weight6,8 kg (15 lbs)

Oil Capacity (Advance)308 cm³ (18.85 in³)

Base Mounting Holes Thread Depth Z12 mm (0.5 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread V3/8"- 16 un

Maximum Cylinder Capacity (Advance)142 kN (15.7 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)50,8 mm (2 in)

Product TypeGeneral Purpose Cylinder

SeriesRC

Plunger Internal Thread1" - 8

Base to Advance Port H25 mm (1 in)

Model Type15.7 Ton Capacity, 6 in. Stroke

Optional Tilt Saddle Diameter (J1)1.38 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J38 mm (1.5 in)

Country of OriginChina

Collar Thread Length (X)30 mm (1.19 in)

Saddle Diameter J135 mm

Extended Height (B)423 mm (16.69 in)

Cylinder Effective Area (Advance)20,3 cm² (3.14 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)11 mm (0.43 in)

Saddle Protrusion from Plunger K9 mm (0.38 in)

Saddle Protrusion from Plunger K19 mm

Plunger Thread Length (P)25 mm (1 in)

Plunger Diameter F41,3 mm (1.63 in)

Documents & CAD

For this product 1

2D DrawingRC156 drawingPDF·38 KB

Series documents 9· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetHydraulic Cylinders - RC Series - RPSPDF·121 KB·English

Repair Parts SheetRC Duo Hydraulic Cylinders RPSPDF·335 KB·English

Repair Parts SheetRC15 Series Hydraulic Cylinders RPSPDF·626 KB·English

Repair Parts SheetRC- Cylinders, 15-Ton Single-Acting 0-700 barPDF·186 KB·English

Repair Parts SheetParts Kits (Europe Only)PDF·256 KB·English

BrochureRC-Series General Purpose Cylinders; EnglishPDF·591 KB

DocumentRoller BannerPDF·4.5 MB·English

CAD Files 3

3D Model
