How can I get a price quote for Enerpac PUD1300E?

You can request a fast quote for Enerpac PUD1300E from Yılsa Engineering. Reference part number CEY-55221B12E004. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PUD1300E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PUD1300E genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PUD1300E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

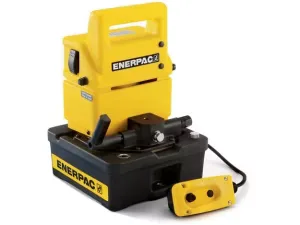

Enerpac PUD1300E 700 bar electric hydraulic pump

Enerpac PUD1300E; 700 bar (10,000 psi) maximum pressure, 230 V, 1.9 l usable oil capacity, two-speed economy electric hydraulic pump with 3/2 solenoid valve.

EnerpacMFR # PUD1300ESKU # CEY-55221B12E004

Dimension E119 mm (4.72 in)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F203 mm (8 in)

Dimension D101 mm (4 in)

Have questions?Chat on WhatsApp

About This Product

The PUD1300E is a two-speed economy electric hydraulic pump from the PU series. Its 3/2 solenoid valve provides advance, hold and retract functions for single-acting cylinders. It suits powering small to medium size cylinders and hydraulic tools. Maximum operating pressure is 700 bar. The first stage delivers 200 in³/min (about 3.3 l/min) up to 200 psi (about 14 bar), and the second stage delivers 0.32 l/min. The motor is rated 230 V (208-240 V), 50/60 Hz. Reservoir capacity is 116 in³ with 0.5 gal (about 1.9 l) usable oil, and the duty cycle is intermittent. Its lightweight, compact design makes it easy to transport. A 3 m cord with pendant controls motor and valve operation. It is used with single-acting cylinders in applications that require load holding and solenoid valve operation.

Features and Benefits

Two-speed operation reduces cycle times
700 bar maximum operating pressure
3/2 solenoid valve: advance / hold / retract, suited to load-holding applications
3 m cord with pendant controls motor and valve
Lightweight, compact body with carry handle
Universal motor works well on long extension cords and generators

Enerpac PUD1300E

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E119 mm (4.72 in)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F203 mm (8 in)

Dimension D101 mm (4 in)

Maximum Flow at Rated Pressure0.32 l/min (20 in3/min · 0,32 l/min · 20 in³/min)

Dimension C362 mm (14.25 in)

Motor Electrical Specification230 V, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Hold / Retract

Dimension B244 mm (9.62 in)

Output Flow Rate 2nd Stage0,32 l/min (20 in³/min)

Motor Voltage208-240 V V

Usable Oil Capacity1,9 l (0.5 gal)

Pump ControlPendant

Dimension J133 mm (5.25 in)

Dimension H0.4 in

Maximum Operating Pressure Range700 bar

1st Stage Pressure Rating13 bar (200 psi)

Product TypeElectric Pump - Economy

Duty CycleIntermittent

Reservoir Capacity1900 cm³ (116 in³)

Sound Level85 dB(A)

Valve OperationSolenoid

Pump Valve Type3-way, 2-position

Motor Size0.5 hp

SeriesPU

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Pump OperationDump and Hold

Current Draw9.5 A

Cylinder CompatibilitySingle-acting

Dimension A244 mm (9.62 in)

Product LineIndustrial Tools

Weight10,0 kg (26 lbs)

Documents & CAD

Series documents 5· shared by this product series

Repair Parts Sheet1/2 hp Portable Electric PumpPDF·672 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2B-ECONOMY_RevL_Oct2022PDF·474 KB

BrochurePU-Series Economy Electric Pumps; EnglishPDF·324 KB
