How can I get a price quote for Enerpac PUD1101E?

You can request a fast quote for Enerpac PUD1101E from Yılsa Engineering. Reference part number CEY-55221B12C1D8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac PUD1101E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac PUD1101E genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac PUD1101E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

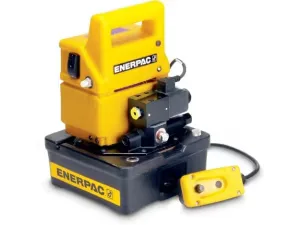

Enerpac PUD1101E 700 bar Electric Hydraulic Pump

Enerpac PUD1101E; 700 bar (10,000 psi), two-speed, 230 V economy electric hydraulic pump with dump valve and 1 gal oil capacity, for single-acting cylinders.

EnerpacMFR # PUD1101ESKU # CEY-55221B12C1D8

Dimension E130 mm (5.12 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Have questions?Chat on WhatsApp

About This Product

The PUD1101E is a two-speed economy electric hydraulic pump from the Enerpac PU series. Its dump valve provides advance and retract of single-acting cylinders, and it suits applications that do not require load holding. Maximum operating pressure is 700 bar (10,000 psi), second-stage flow is 0.32 L/min (20 in³/min) and first-stage flow is 200 in³/min. The motor is 230 V (208–240 V), 50/60 Hz. Usable oil capacity is 1 gal (231 in³ reservoir, approx. 3.8 L). The pump is operated with a 3 m cord pendant. Its lightweight, compact design suits applications that require easy transport, small to medium single-acting cylinders and hydraulic tools, and intermittent duty such as punching.

Features and Benefits

Two-speed operation reduces cycle times
Dump valve provides advance/retract of single-acting cylinders
700 bar (10,000 psi) maximum operating pressure
1 gal (231 in³) reservoir capacity
230 VAC 50/60 Hz universal motor that works well with long extension cords or generator power
3 m cord pendant controls motor and valve operation

Enerpac PUD1101E

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E130 mm (5.12 in)

Maximum Operating Pressure Range700 bar (10,000 psi)

Output Flow Rate 1st Stage3,31 l/min (200 in³/min)

Country of OriginUnited States

2nd Stage Pressure Rating700 bar (10,000 psi)

Dimension F323 mm (12.74 in)

Dimension D105 mm (4.15 in)

Maximum Flow at Rated Pressure0.32 l/min (20 in3/min · 0,32 l/min · 20 in³/min)

Dimension C373 mm (14.72 in)

Motor Electrical Specification230 V, 50/60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Valve FunctionAdvance / Retract

Dimension B309 mm (12.18 in)

Output Flow Rate 2nd Stage0,32 l/min (20 in³/min)

Motor Voltage208-240 V V

Usable Oil Capacity3,8 l (1 gal)

Pump ControlPendant

Dimension J142 mm (5.62 in)

Dimension H0.4 in

1st Stage Pressure Rating13 bar (200 psi)

Product TypeElectric Pump - Economy

Duty CycleIntermittent

Reservoir Capacity3800 cm³ (231 in³)

Sound Level85 dB(A)

Motor Size0.5 hp

SeriesPU

Pump Power SourceElectric

Flow Rate Range at Rated Pressure0 - 0,34 l/min (0 - 20 in³/min)

Pump OperationDump

Current Draw9.5 A

Cylinder CompatibilitySingle-acting

Dimension A368 mm (14.5 in)

Product LineIndustrial Tools

Weight17,2 kg (35 lbs)

Documents & CAD

Series documents 6· shared by this product series

Instruction Manual1/2 HP Portable Electric PumpsPDF·8.3 MB 4 languages· in one file

Repair Parts SheetPUD Pumps Repair Parts SheetPDF·645 KB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2B-ECONOMY_RevL_Oct2022PDF·474 KB

BrochurePU-Series Economy Electric Pumps; EnglishPDF·324 KB
